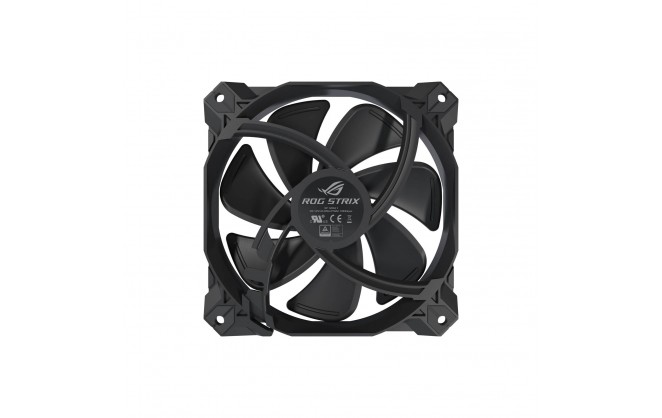

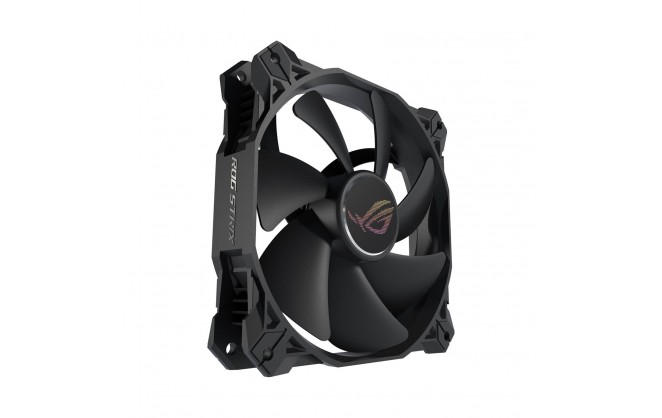

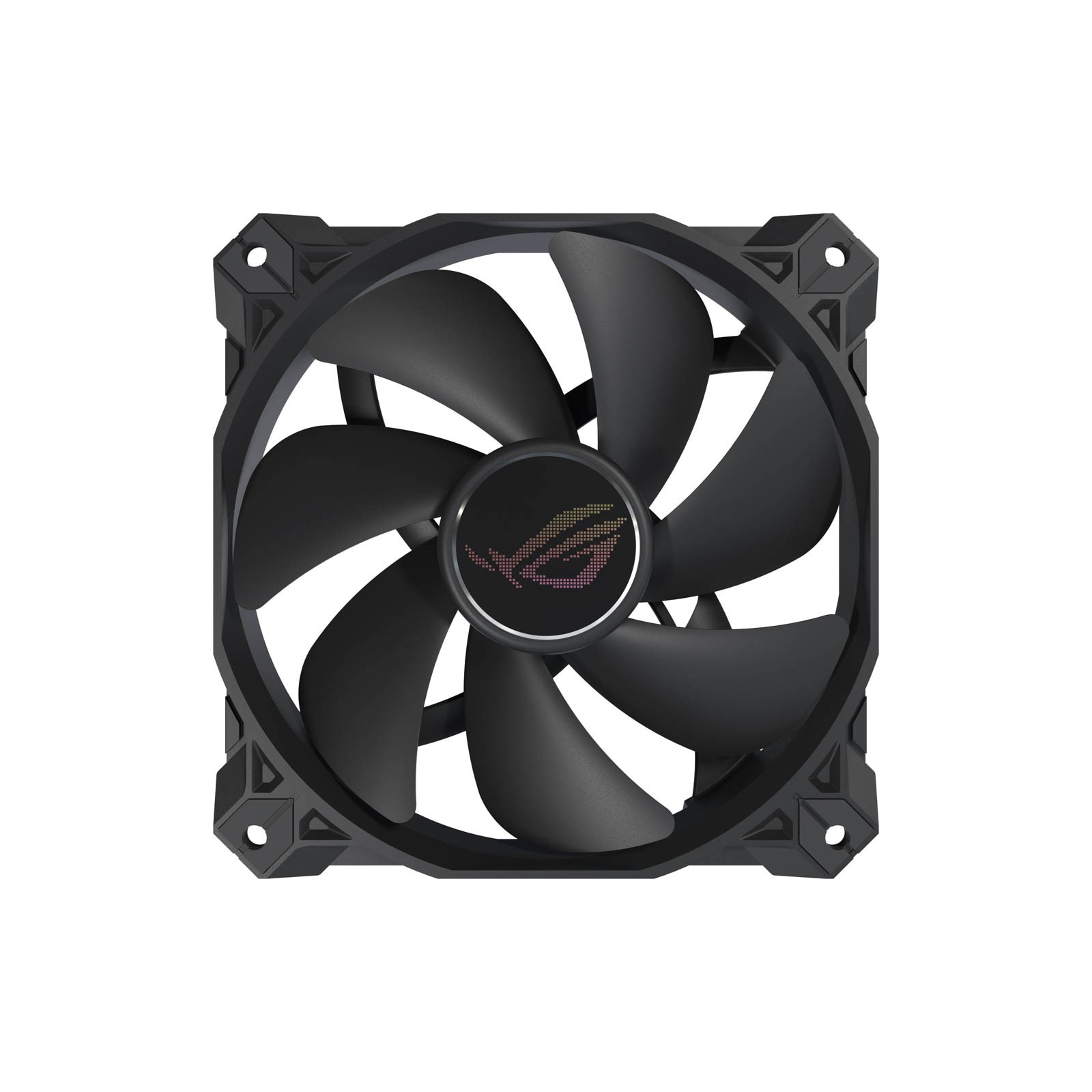

ASUS ROG Stirx XF 120 120mm PWM Case Fan
- Part Number: 90DA0010-B09000
- Manufacturer: ASUS
- Quickfind Code: 120277
- Stock: Out Stock
Contact for availability
Share:
For sales and support
Call:0161 480 8800
Product Description
OPTIMAL BLEND OF AIRFLOW AND STATIC PRESSURE
ROG Strix XF 120 fan provides exceptional cooling performance in the crucial middle area of the P/Q curve. This means optimized performance with a minimized acoustic profile for both static pressure and airflow cooling applications, including as a PC case, radiator or CPU cooler fan.
MAGNETIC-LEVITATION TECHNOLOGY
The fan bearing in ROG Strix XF 120 features 360° MagLev technology to prevent slanting and friction. This technology delivers exceptional cooling performance, low noise and a long lifespan of up to 400,000 hours.
AERODYNAMIC DESIGN
Fan-Blade Grooves
Precision-engineered grooves on the fan blades direct and focus air to flow smoothly along the blades for reduced flow separation. This increases fan performance and reduces vortex noise, improving overall acoustics.
Direct-Flow Frame
The angle and curvature of the frame struts are carefully designed to direct and channel airflow in a unidirectional, highly focused stream. This design minimizes turbulence and the focused airflow enhances static pressure.
DYNAMIC BALANCE PRE-CALIBRATION
The balance of each fan is manually tuned to minimize inefficiency and ensure optimal performance.
PRECISE, FLEXIBLE PWM SPEED CONTROL
An extensive operating range of 250 – 1800 rpm offers the precision and flexibility to maximize cooling performance across various workloads, and the fan automatically turns off when set to 0% PWM duty cycle for an ultralow noise profile when handling lighter workloads.
Main Features
- Optimal blend of airflow and static pressure: Enables use as a PC case, radiator or CPU cooler fan
- MagLev bearing: Stabilizes rotor for reduced friction and noise, and offers 400,000-hour life span
- Minimized acoustic profile: Whisper-quiet, 22.5 dB(A) cooling performance and tuned to deliver a smooth and stable sound frequency
- Aerodynamic fan blade and frame design: Minimizes turbulence and maximizes airflow
- Extensive operating range: 250 - 1800 rpm range for more flexibility and to create a quiet fan curve (fan spins down at 0% PWM utilization)
- Anti-vibration pads and mounts: Reduces vibration and prevents rattling
- 5-year warranty
Technical Specification
ASUS ROG Stirx XF 120 120mm PWM Case Fan
Attributes
| Fan Speed | 1800 RPM |
| Air Flow | 62.5 CFM |
| Bearing Type | Magnetic Levitation |
| Connector | 4-pin PWM |
| Fan Air Pressure | 3.07 mmH2O |
Electrical
| Voltage | 12 V |
| Current | 0.09 A |
Environmental
| Noise Level | 22.5 dBA |
Physical
| Form Factor | Chassis Fan |
| Case Colour | Black |

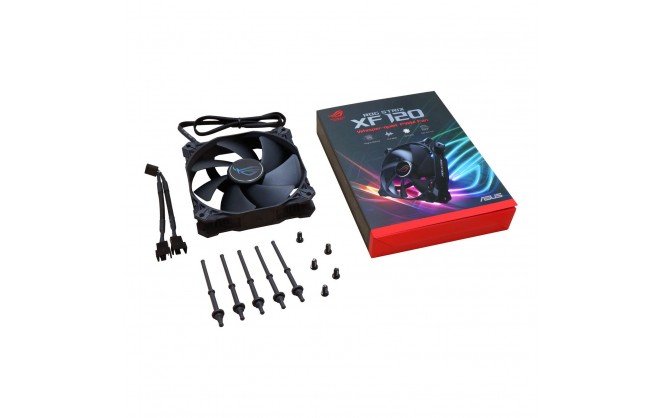

| In The Box | Fan 4 x Screws |
| Fan Width | 120 mm |
| Fan Depth | 120 mm |
| Fan Height | 25 mm |
Key Features
| Fan Size | 120mm mm |
| Display Model in Showroom | No |
| L.E.D Fan | No LED |
| Number of Fans | 1 fan(s) |
| LED Controller Included | No |
| LED Strip(s) Included | No |
| Fan Connector | 4-pin PWM |
Warranty
| Warranty | 1 Year |
Item Details
| Manufacturer | ASUS |
| Manufacturer Code | 90DA0010-B09000 |
| EAN | 4718017984515 |
| Condition | New |
