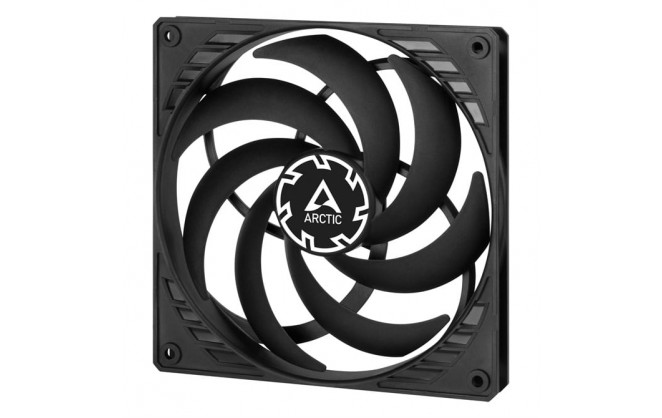

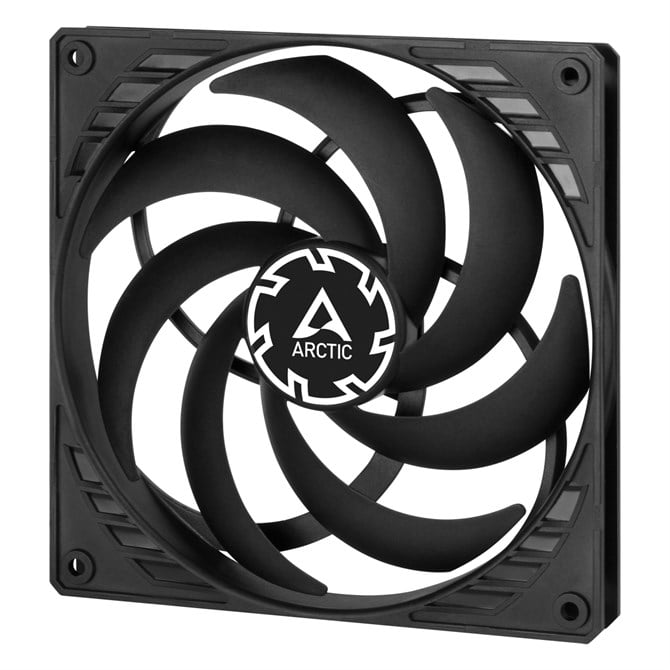

ARCTIC P14 Slim PWM PST 140mm Fan Black
- Part Number: ACFAN00268A
- Manufacturer: Arctic Cooling
- Quickfind Code: 120941
- Stock: In Stock
£4.88 ex. vat
£5.86 inc. vat
Share:
For sales and support
Call:0161 480 8800
Product Description
IDEAL FOR SMALL SPACES
Unlike standard 140 mm case fans with a thickness of 27 mm, the P14 Slim PWM PST has a mounting depth of only 16 mm. This makes it the ideal choice for Small Form Factor (SFF) builds. Corresponding screws for mounting on a radiator are already included.
OPTIMISED FOR HIGH STATIC PRESSURE
Because the fan design of the P14 Slim PWM PST is optimised for focused airflow, it generates high static pressure. The fan enables extremely efficient cooling and good airflow— even with increased air resistance. This makes the P14 Slim PWM PST particularly well-suited for use on concealed case intakes, dust filters, radiators, and generally in small cases that have little space for free airflow due to compactly placed hardware.
MAXIMUM QUIETNESS, MINIMUM VIBRATION
The operating noise of the newly-developed ARCTIC motor is barely perceptible, even at the lowest speed. Thanks to its special magnetization, the motor of the P-fans generates no start-up jerks and only a fraction of the commutation vibrations of a conventional DC motor. As a result, there is far less vibration on the housing at different speeds and no need for rubber buffering or additional decoupling.
IMPROVED SERVICE LIFE
The new ARCTIC motor generates significantly less frictional heat than its predecessors and current competitor models. As a result, coil temperature is reduced by up to 20 degrees, quadrupling service life, while reduced frictional losses ensure more efficient operation.
150 TO 1800 RPM CONTROLLED VIA PWM PST
With a wide speed range and innovative PWM Sharing Technology (PST), the P14 Slim PWM PST's fan speed can be controlled in sync with other fans. ARCTIC's PST fans come equipped with their own built-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to 4 other PST fans can be connected in series.
HIGH QUALITY SLEEVE BEARING
Thanks to a combination of alloy and lubricant developed in Germany, friction within the bearing is minimized and greater efficiency is achieved. In addition to preventing lubricant loss, wear on the pin and sleeve is also reduced to a minimum. Less heat is developed, less bearing noise is generated and the life of the fan is extended significantly.
0 DB MODE - ZERO RPM
The speed of the P14 Slim PWM PST can be throttled down to a standstill via PWM. This allows efficient and silent PC operation in idle while guaranteeing maximum performance on demand.
VERSATILE USE
The P14 Slim PWM PST allows customisable installation in the case. It can both suck in cool air as an Intake fan and push out warm air as an Exhaust fan. The fan also offers both push and pull installation options on the radiator.
Technical Specification
ARCTIC P14 Slim PWM PST 140mm Fan Black
Performance
Suitable location
Locations in which the product can be used.
Computer case
Type
Characteristics of the device.
Fan
Fan diameter
The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.
14 cm
Rotational speed (min)
150 RPM
Rotational speed (max)
1800 RPM
Noise level
0.3 sone
Maximum airflow
52 cfm
Airflow
88.35 m³/h
Maximum air pressure
1.55 mmH2O
Pulse-width modulation (PWM) support
Bearing type
Fluid Dynamic Bearing (FDB)
Quantity per pack
1 pc(s)
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Design
Product colour
The colour e.g. red, blue, green, black, white.
Black
Number of fans
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
1 fan(s)
Illumination LED
Fan connector
4-pin + 4-pin
Display type
Type of display (screen) e.g. LCD.
Not applicable
Power
Voltage
12 V
Starting voltage
4 V
Fan current
0.19 A
Weight & dimensions
Height
The measurement of the product from head to foot or from base to top.
140 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
109 g
Fan dimensions (W x D x H)
140 x 140 x 16 mm
Fan weight
109 g
Cable length
How long the cable is.
0.48 m
Package width
The distance from one side of the packaging to the other.
143 mm
Package depth
The distance from the front to the back of the packaging.
156 mm
Package height
The distance from the top to the bottom of the packaging.
17 mm
Packaging content
Screws included
Number of screws
4
Other features
Country of origin
Country where the device is made. Aka Country of manufacture (COM).
China
