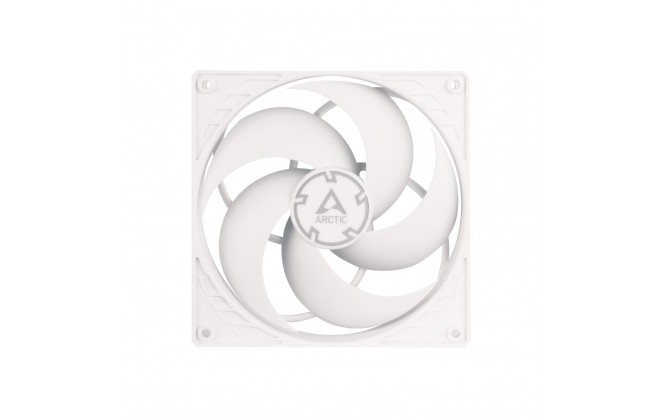

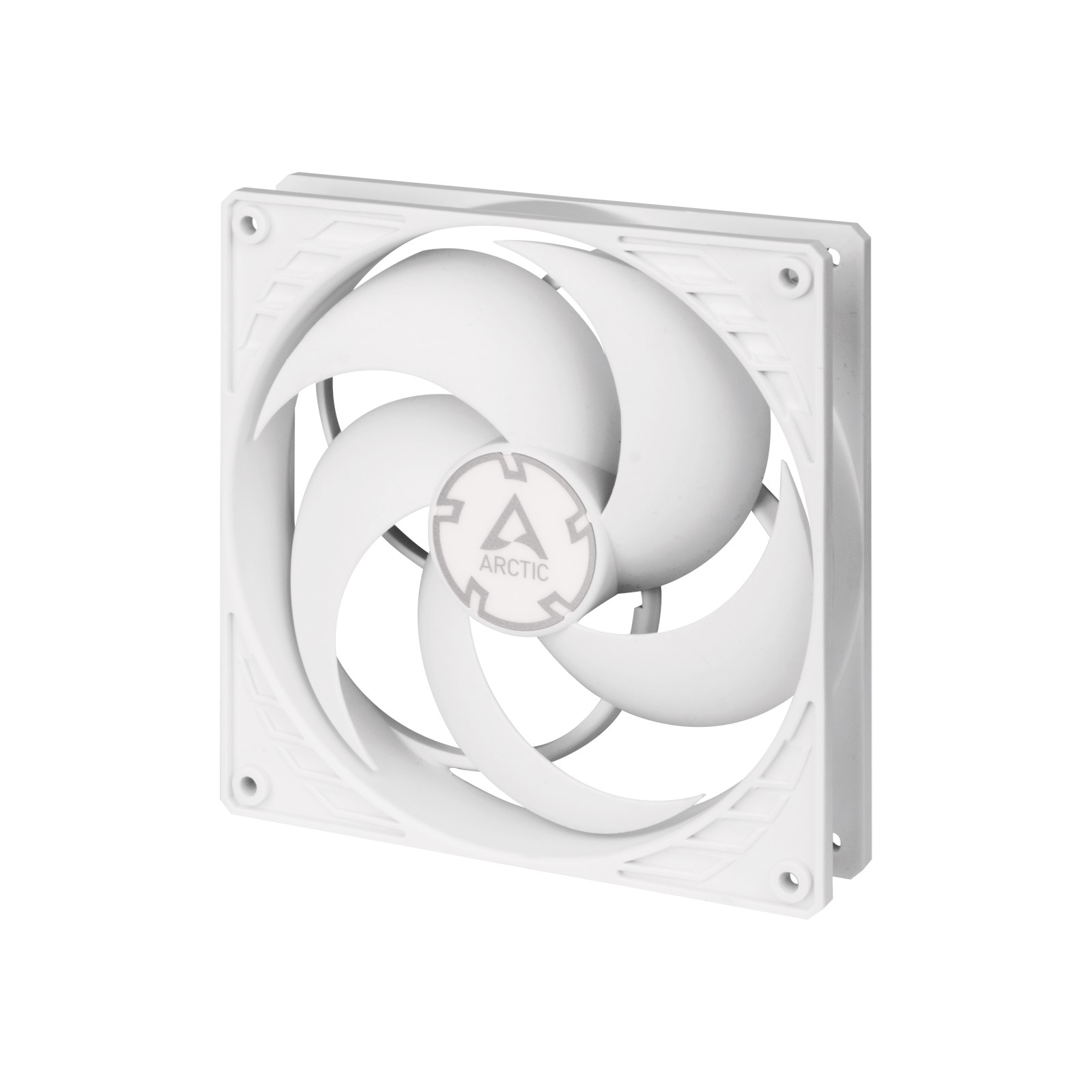

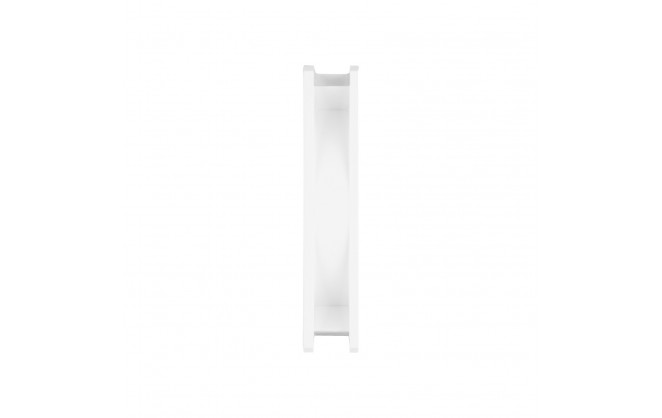

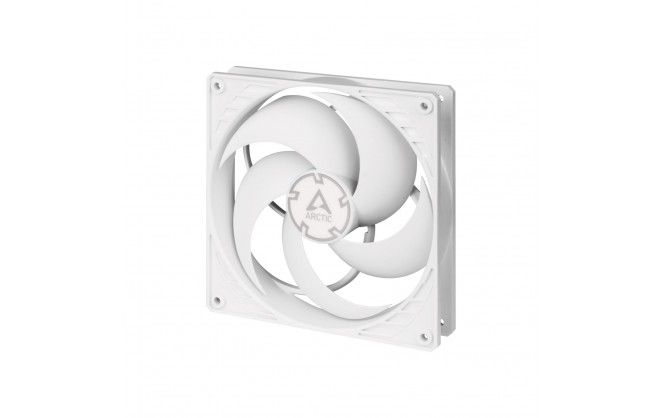

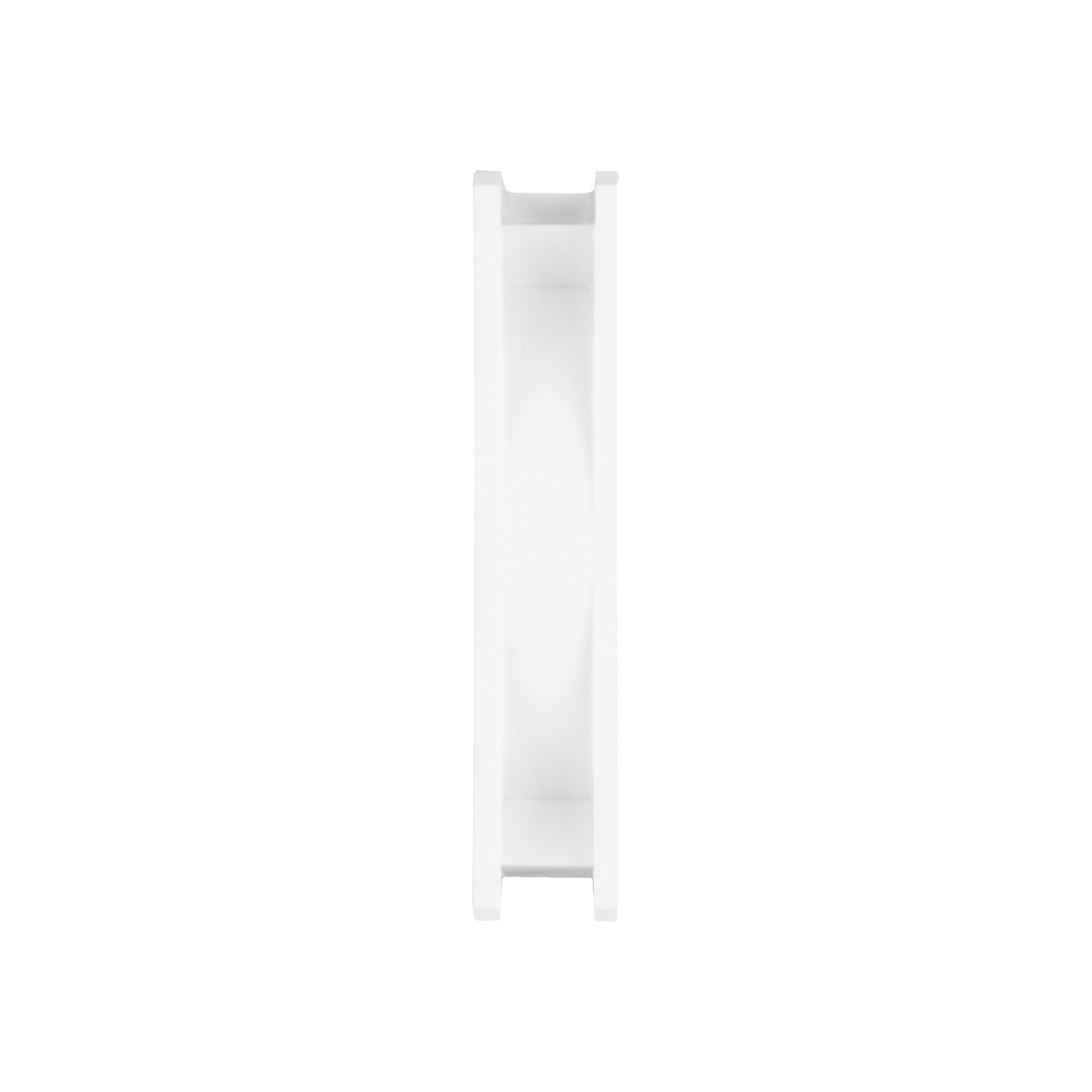

Arctic P14 PWM Pressure-Optimised 140mm Chassis Fan White

Part Number: ACFAN00222A
Manufacturer: Arctic Cooling
Quickfind Code: 120681

Stock: In Stock

£8.99 ex. vat
£10.79 inc. vat

Product Features:

Condition: New
Size 140mm
Type Case Fans

+ Read More Information

Optimised for Static Pressure

During the development of the new P14 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM is particularly suitable for use on heatsinks and radiators.

0 dB Mode — Zero rpm

The speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required.

More Efficient Technology

The motor is powered by a PWM IC of the newest generation, which allows the new P14 PWM to run much more efficiently than its predecessors. This saves energy without compromising performance.

Maximum Quietness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC motor without a filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Extended Life Span

A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we give a manufacturer warranty of 6 years.

200 to 1700 rpm Regulated via PWM

Thanks to the 4-Pin Connector, the rpm can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.

High-Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Two Way Installation

Push warm air out of the case
Pull cool air into your case

Technical Specification

Arctic P14 PWM Pressure-Optimised 140mm Chassis Fan White

Attributes

Fan Speed	200 ~ 1700 RPM
Air Flow	72.8 CFM
Bearing Type	FDB
Connector	4-pin PWM
Static Pressure	2.4 mmH2O

Electrical

Voltage	12 V DC
Current	0.12 A

Environmental

Noise Level

0.3 Sone

Physical

Form Factor	Chassis Fan
Case Colour	White
Cable length	400 mm
In The Box	Fan 4 x Screws
Fan Width	140 mm
Fan Depth	140 mm
Fan Height	27 mm
Fan Weight	194 g

Warranty

6 Years

Key Features

Main Colour	White
Fan Size	140 mm
L.E.D Fan	No LED
Number of Fans	1 fan(s)
RGB LED Controller Included	No
LED Strip(s) Included	No
Fan Connector	4-pin PWM
Power Requirement (auto)	3 W
