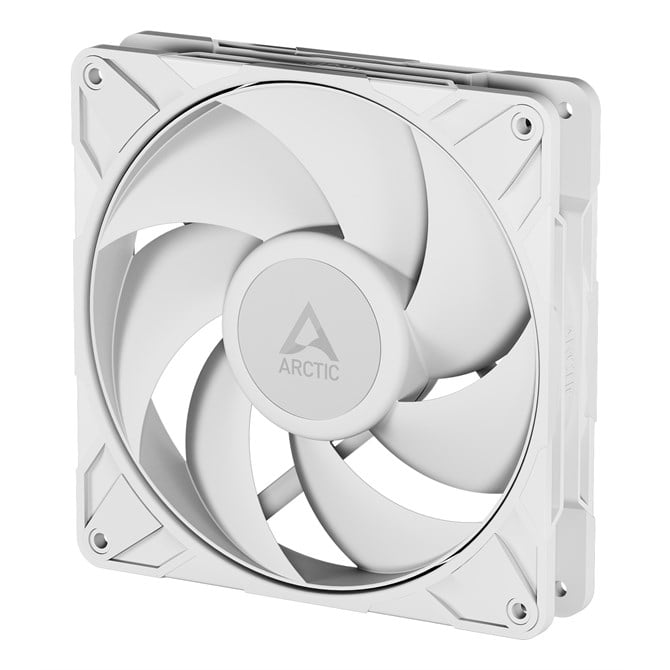

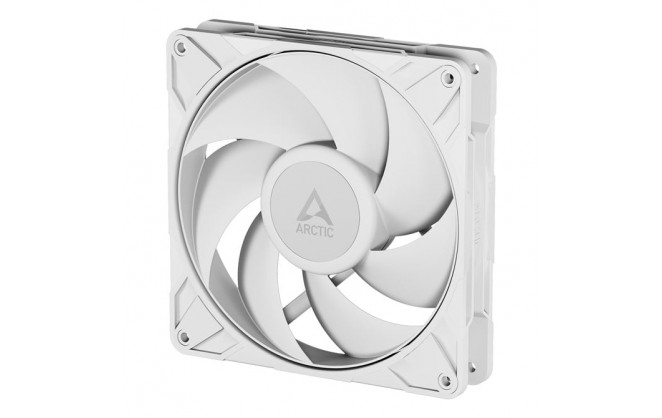

ARCTIC P14 Pro PST 140mm Fan White
- Part Number: ACFAN00317A
- Manufacturer: Arctic Cooling
- Quickfind Code: 120943
- Stock: In Stock
£7.89 ex. vat
£9.47 inc. vat
Share:
For sales and support
Call:0161 480 8800
Product Description
Efficient Performance at High Air Resistance
Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.
Maximum Performance, Redefined
Revised fan blade design for an optimal balance of performance and smooth operation.
Optimized Bearing-Shaft Design (FDB)
A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.
Automated Two-Plane Balancing
An automated two-level measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing mass with pinpoint accuracy at two different depth levels.
SOTA Microcontroller
Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.
More Power – Less Noise
The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.
Minimum Gap Dimensions for Maximum Efficiency
Enables higher static pressure and maximum airflow efficiency.
PST – PWM-Based Synchronized Fan Control
An additional PWM connector allows multiple fans to be synchronized in series using a single header.
Technical Specification
ARCTIC P14 Pro PST 140mm Fan White
Performance
Suitable location
Locations in which the product can be used.
Computer case
Type
Characteristics of the device.
Fan
Fan diameter
The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.
14 cm
Rotational speed (min)
400 RPM
Rotational speed (max)
2500 RPM
Maximum airflow
110 cfm
Airflow
186 m³/h
Maximum air pressure
5.2 mmH2O
Pulse-width modulation (PWM) support
Bearing type
Fluid Dynamic Bearing (FDB)
Quantity per pack
1 pc(s)
Design
Product colour
The colour e.g. red, blue, green, black, white.
White
Number of fans
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
1 fan(s)
Illumination LED
Fan connector
4-pin + 4-pin
Display type
Type of display (screen) e.g. LCD.
Not applicable
Power
Rated voltage
12 V
Starting voltage
5 V
Rated current
0.35 A
Weight & dimensions
Height
The measurement of the product from head to foot or from base to top.
140 mm
Fan dimensions (W x D x H)
140 x 140 x 27 mm
Fan weight
242 g
Cable length
How long the cable is.
0.48 m
Package width
The distance from one side of the packaging to the other.
145 mm
Package depth
The distance from the front to the back of the packaging.
145 mm
Package height
The distance from the top to the bottom of the packaging.
32 mm
Package weight
Weight of the packaged product.
294 g
Packaging content
Screws included
Number of screws
4
