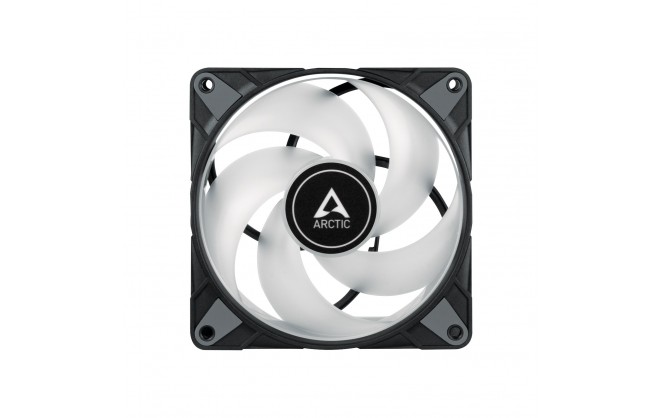

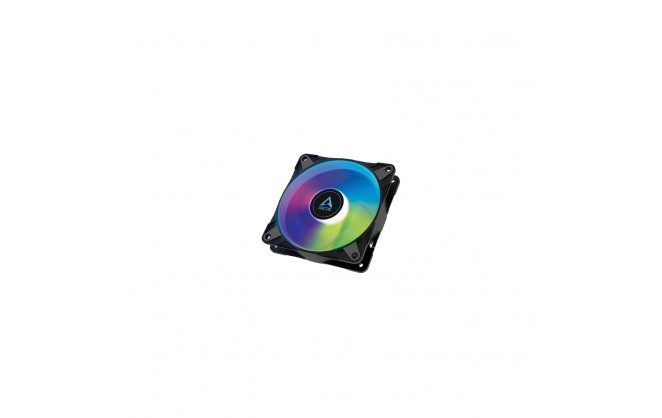

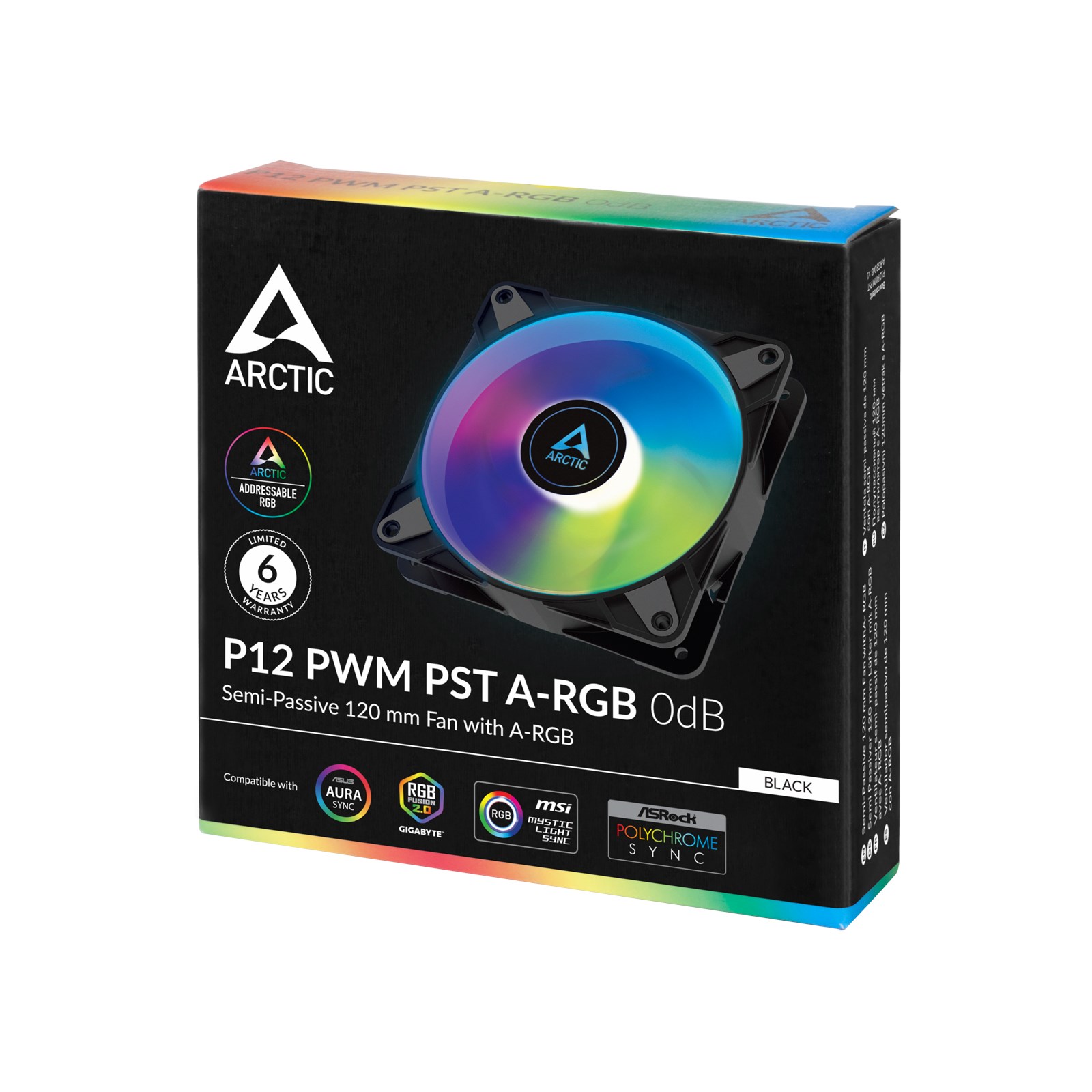

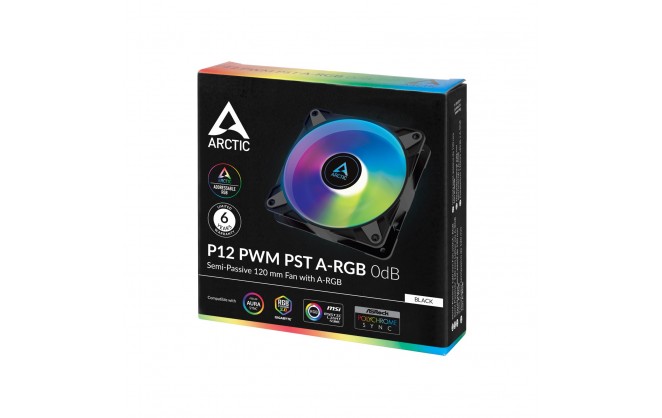

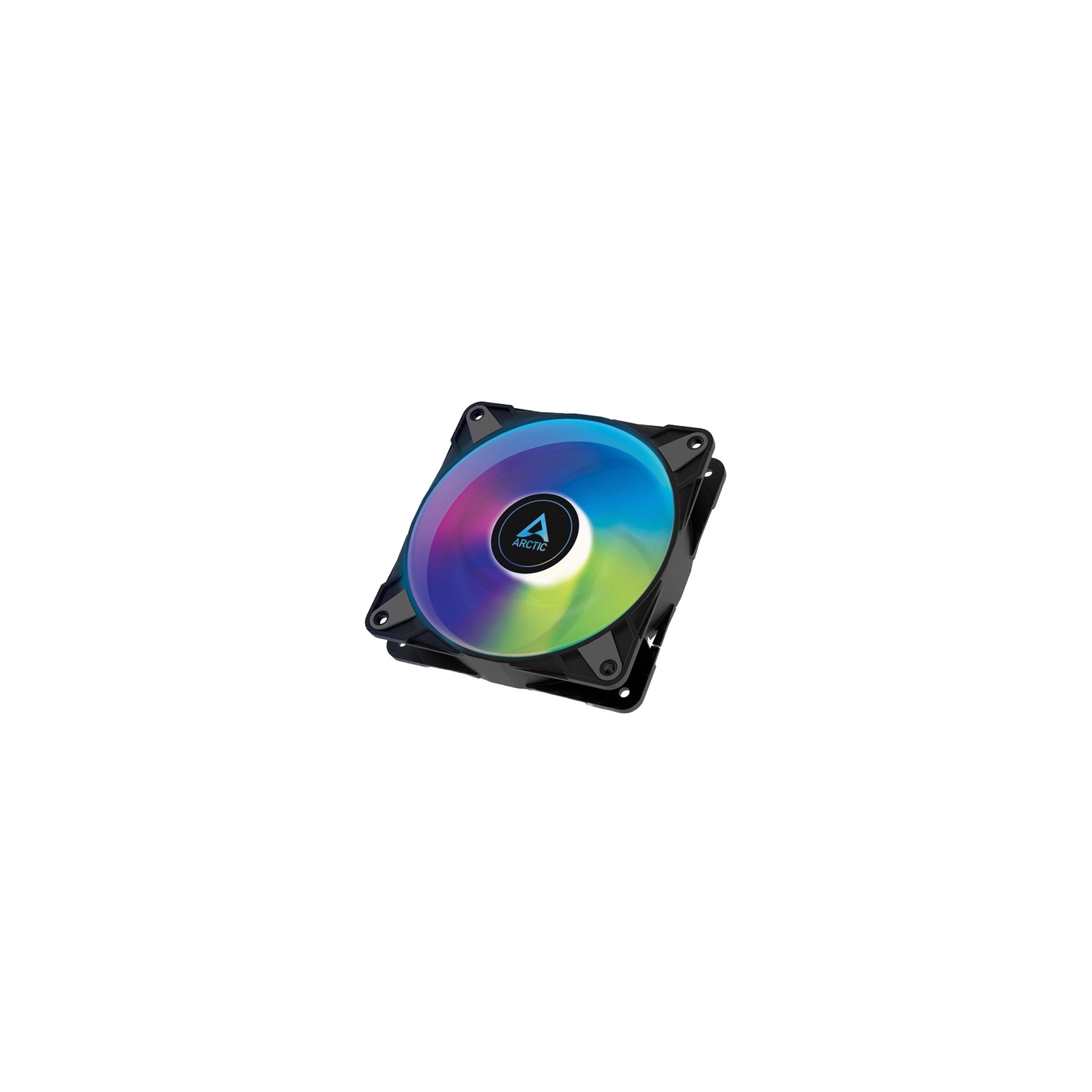

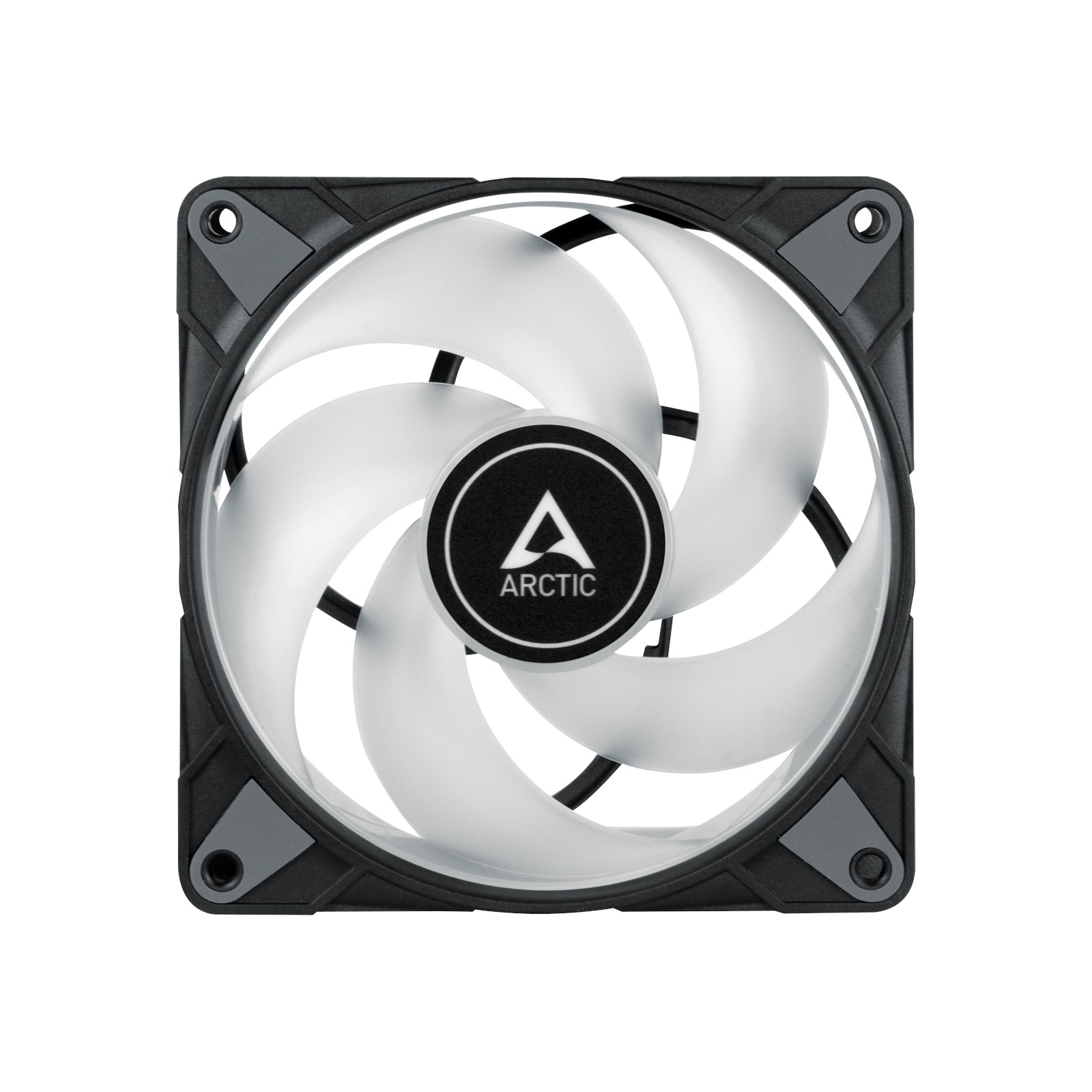

Arctic P12 PWM PST A-RGB Semi-Passive 120mm Chassis Fan Black
- Part Number: ACFAN00231A
- Manufacturer: Arctic Cooling
- Quickfind Code: 120824
- Stock: In Stock
£12.83 ex. vat
£15.40 inc. vat
Share:
For sales and support
Call:0161 480 8800
Product Description
Addressable RGB for Full Colour Control
The P12 PWM PST A-RGB has 12 digital A-RGB LEDs in the center fan wheel. These can be controlled independently of each other and are compatible with the common A-RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly the A-RGB mainboard connector or via an external controller and synchronised with the illumination of other hardware.
0 dB Mode — Zero rpm
The speed of the fan can be throttled down to a standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required.
Maximum Smoothness, Minimum Vibration
The operating noise of the newly developed ARCTIC motor is barely perceptible even at the lowest speed. In addition, the P12 PWM PST A-RGB has rubberised contact surfaces and thus reduces audible vibrations to a minimum.
Optimised for High Static Pressure
The P12 PWM PST A-RGB operates with a focused airflow and high static pressure. The fan thus guarantees extremely efficient cooling, even with increased air resistance, and is, therefore, suitable for use on heat sinks, radiators, and filters.
200 to 2000 rpm Controlled via PWM PST
With a wide speed range and the innovative PWM Sharing Technology (PST), the fan speed of the P12 PWM PST A-RGB can be controlled synchronously with all other fans. This reduces noise to a minimum while guaranteeing maximum cooling performance.
High-Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. In this way, less heat develops, less bearing noise is generated and the service life of the fan is extended.
Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how to improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality but also durability. It's a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee on the P14 PWM PST A-RGB.
Technical Specification
Arctic P12 PWM PST A-RGB Semi-Passive 120mm Chassis Fan Black
Attributes
| Fan Speed | Up to 2000 RPM |
| Air Flow | 48.8 CFM |
| Bearing Type | FDB |
| Connector | 4-pin PWM |
| Static Pressure | 1.85 mmH2O |
Electrical
| Voltage | 12 V DC |
| Current | 0.11 A |
Environmental
| Operating Temperature | 0 ~ 40 °C |
| Noise Level | 0.3 Sone |
Physical
| Form Factor | Chassis Fan |
| Case Colour | Black |
| Cable length | 400 mm |
| In The Box | Fan 4 x Screws |
| Fan Width | 120 mm |
| Fan Depth | 120 mm |
| Fan Height | 25 mm |
| Fan Weight | 131 g |
Warranty
| Warranty | 6 Years |
Key Features
| Main Colour | Black |
| Fan Size | 120 mm |
| L.E.D Fan | ARGB |
| Number of Fans | 1 fan(s) |
| RGB LED Controller Included | No |
| LED Strip(s) Included | No |
| Fan Connector | 4-pin PWM |
| Power Requirement (auto) | 3 W |
| Fan Blade Direction | Normal |
Item Details
| Manufacturer | Arctic Cooling |
| Manufacturer Code | ACFAN00231A |
| EAN | 4895213703154 |
