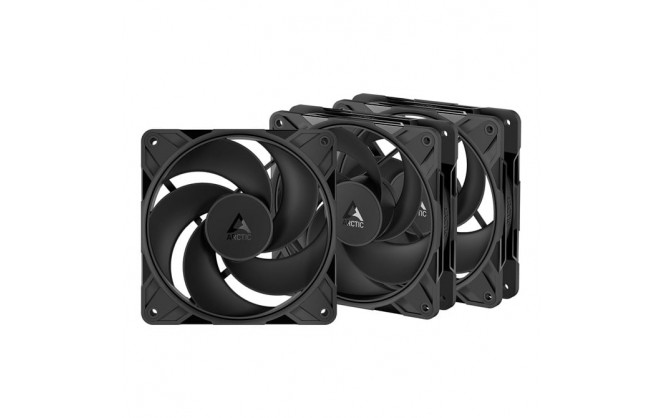

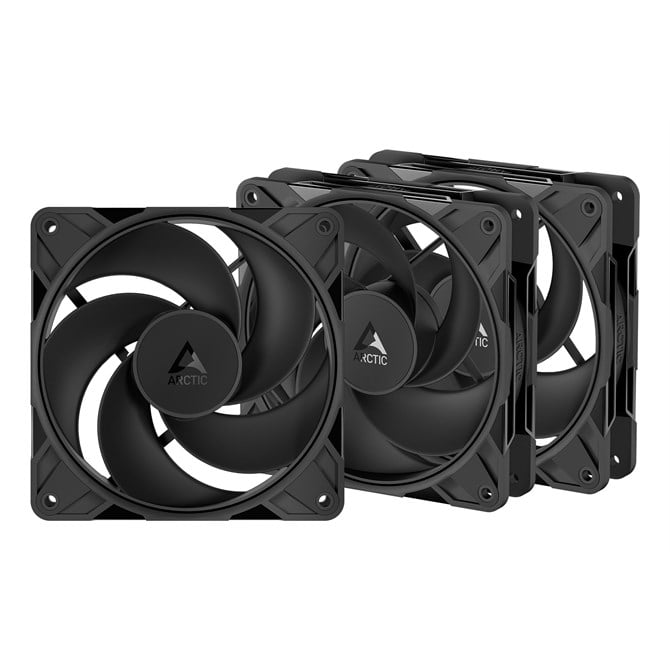

ARCTIC Freezer P14 Pro Reverse 140mm Triple Fan Pack Black
- Part Number: ACFAN00330A
- Manufacturer: Arctic Cooling
- Quickfind Code: 120935
- Stock: In Stock
£16.55 ex. vat
£19.86 inc. vat
Share:
For sales and support
Call:0161 480 8800
Product Description
Reversed Airflow
The P14 Pro Reverse is specifically designed for air intake from the back side. It's particularly suitable when conventional fans would compromise the aesthetics.
Optimized Airflow Design
The trumpet-shaped intake and teardrop-shaped spokes direct the airflow with reduced flow losses. This reduces air resistance, minimising turbulence and aerodynamic noise.
SOTA Microcontroller
Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.
More Power – Less Noise
An automated measuring and balancing process ensures smooth performance by applying the balancing compound with pinpoint accuracy.
Minimum Gap Dimensions for Maximum Efficiency
Enables higher static pressure and maximum airflow efficiency.
PST – Easy Cable Management and Synchronized PWM Control
Thanks to the additional PWM connector, multiple fans can be daisy-chained and controlled simultaneously through a single header.
Optimized FDB Bearing-Shaft Design
A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.
6-Year Warranty – Because Satisfaction Matters
Our products are tested under extreme conditions. The 6-year warranty isn’t just a promise – it’s a testament to our confidence in their durability.
Technical Specification
ARCTIC Freezer P14 Pro Reverse 140mm Triple Fan Pack Black
Performance
Suitable location
Locations in which the product can be used.
Computer case
Type
Characteristics of the device.
Fan
Fan diameter
The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.
14 cm
Maximum airflow
98 cfm
Airflow
166.5 m³/h
Maximum air pressure
5.1 mmH2O
Pulse-width modulation (PWM) support
Bearing type
Fluid Dynamic Bearing (FDB)
Quantity per pack
3 pc(s)
Fan speed (min)
400 RPM
Fan speed (max)
2650 RPM
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Design
Product colour
The colour e.g. red, blue, green, black, white.
Black
Number of fans
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
1 fan(s)
Number of fan blades
5
Illumination LED
Fan connector
4-pin + 4-pin
Design
Display type
Type of display (screen) e.g. LCD.
Not applicable
Power
Rated voltage
12 V
Starting voltage
4 V
Rated current
0.4 A
Weight & dimensions
Height
The measurement of the product from head to foot or from base to top.
140 mm
Fan dimensions (W x D x H)
140 x 140 x 30 mm
Fan weight
248 g
Cable length
How long the cable is.
0.48 m
Package width
The distance from one side of the packaging to the other.
144 mm
Package depth
The distance from the front to the back of the packaging.
148 mm
Package height
The distance from the top to the bottom of the packaging.
100 mm
Package weight
Weight of the packaged product.
810 g
Packaging content
Package type
The type of product package e.g. box.
Box
Screws included
Number of screws
12
