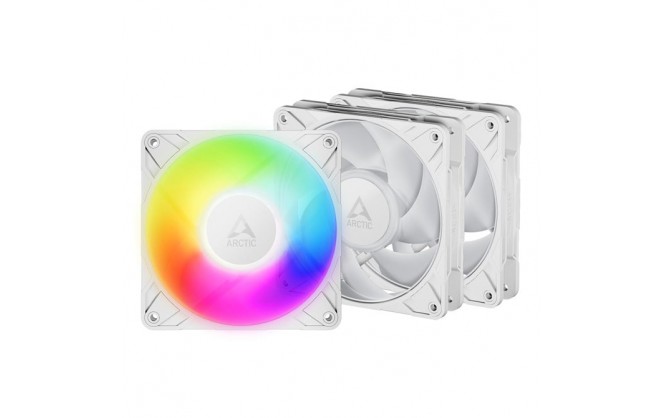

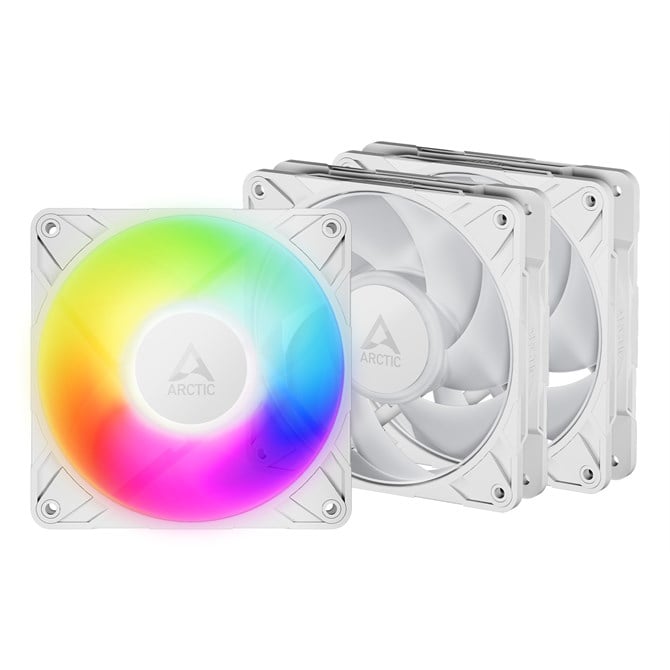

ARCTIC Freezer P12 Pro A-RGB 120mm Triple Fan Pack White
- Part Number: ACFAN00326A
- Manufacturer: Arctic Cooling
- Quickfind Code: 120931
- Stock: In Stock
£22.99 ex. vat
£27.59 inc. vat
Share:
For sales and support
Call:0161 480 8800
Product Description
Efficient Performance at High Air Resistance
Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.
Maximum Performance, Redefined
Revised fan blade design for an optimal balance of performance and smooth operation.
Optimized Bearing-Shaft Design (FDB)
A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.
Automated Balancing
An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.
SOTA Microcontroller
Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.
More Power – Less Noise
The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.
Minimum Gap Dimensions for Maximum Efficiency
Enables higher static pressure and maximum airflow efficiency.
PST – PWM-Based Synchronized Fan Control
An additional PWM connector allows multiple fans to be synchronized in series using a single header.
6-Year Warranty – Because Satisfaction Matters
Our products are tested under extreme conditions. The 6-year warranty isn’t just a promise – it’s a testament to our confidence in their durability.
Technical Specification
ARCTIC Freezer P12 Pro A-RGB 120mm Triple Fan Pack White
Performance
Suitable location
Locations in which the product can be used.
Computer case
Type
Characteristics of the device.
Fan
Fan diameter
The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.
12 cm
Maximum airflow
77 cfm
Airflow
131 m³/h
Pulse-width modulation (PWM) support
Bearing type
Fluid Dynamic Bearing (FDB)
Quantity per pack
3 pc(s)
Fan speed (min)
600 RPM
Fan speed (max)
3000 RPM
Fan static pressure
6.9 mmH2O
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Design
Product colour
The colour e.g. red, blue, green, black, white.
White
Number of fans
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
1 fan(s)
Number of fan blades
7
Illumination LED
Illumination colour
The colour of the illumination, which is the light which allows you to see the display etc. clearly.
Multi
LED connector type
3-pin
Fan connector
4-pin + 4-pin
Design
Display type
Type of display (screen) e.g. LCD.
Not applicable
Power
Starting voltage
3.3 V
LED voltage
5 V
Fan voltage
12 V
Fan current
0.33 A
Weight & dimensions
Height
The measurement of the product from head to foot or from base to top.
120 mm
Fan dimensions (W x D x H)
120 x 120 x 25 mm
Fan weight
185 g
Cable length
How long the cable is.
0.4 m
Package width
The distance from one side of the packaging to the other.
124 mm
Package depth
The distance from the front to the back of the packaging.
127 mm
Package height
The distance from the top to the bottom of the packaging.
86 mm
Package weight
Weight of the packaged product.
633 g
Technical details
Warranty period
6 year(s)
Packaging content
Package type
The type of product package e.g. box.
Box
Screws included
Number of screws
12
