Next-Gen Wi-Fi Technology
3x Faster Speed
Powerful and consistent signals to perfectly pair with Wi-Fi 6 routers supported 160 MHz bandwidth.
75% Lower Latency
More responsive gaming and seamless video conferencing.
Improved Security—WPA3™
The latest security enhancements provide enhanced protection in personal password safety.
Bluetooth 5.0 Technology
Archer TX3000E is compatible with the latest Bluetooth 5.0 Technology, achieving 2× faster speed and 4× broader coverage than Bluetooth 4.2 to connect as more devices as you want and enjoy the smoother experience than ever.
Broader Coverage Than Ever
Two multi-directional and high-performance antennas with a magnetized base make it incredibly easy to find the best location for optimum signal reception.
Superior Wi-Fi Reception
Equipped with 1024-QAM and MU-MIMO technology, Archer TX3000E delivers faster and clearer Wi-Fi to take your PC's Wi-Fi reception to the next level and fully achieve the potential of your Wi-Fi 6 router.
Fine Crafting for Reliability
Built with a specialized heatsink crafted to improve stability and reliability even in hot environments. Careful attention to every detail, such as gold plating on every contactor to resist oxidation, delivers a superior network experience.
Low-Profile Bracket
In addition to the full-height bracket, a low-profile bracket is also provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that will fit your board design perfectly.

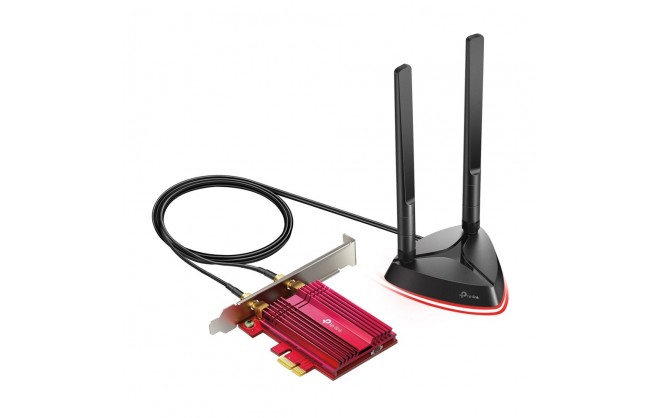

TP-Link Archer TX3000E AX3000 Wi-Fi 6 PCIe Adapter
Wireless LAN
| Wireless Type | 802.11 |
| RF Network Standard | IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/g/b 2.4 GHz Bluetooth 5.0/4.2/4.0 |
| Encryption | Supports 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x |
| Frequency Band | 2.4 GHz 5 GHz |
| Transmit Power | 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP) 2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP) |
| Modulation Technique | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM |
| Antenna Type | Two High-Gain Dual Band Antennas Magnetized Antenna Base |
Interfaces/Ports
| Interface | PCI Express |
System Requirements
| System Requirements | Windows 10 1 x PCI Express 3.0 x1 slot Spare USB2 motherboard header |
| Operating Systems Supported | Windows 10 only |
Environmental
| Operating Temperature | 0 ~ 40 ° |
| Operating Humidity | 10 ~ 90 % non-condensing |
Physical
| Form Factor | Wireless Adapter |
| Case Colour | Red |
| In The Box | Archer TX3000E Magnetized Antenna Base with 1m RF Cable Two 5 dBi High Gain Antennas Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource CD |
| Width | 21.5 mm |
| Depth | 120.8 mm |
| Height | 95.2 mm |
| Weight | 0.24 kg |
Key Features
| Interface Type | PCI Express |
| WPS Support | No |
| Removable Antenna | Yes |
| WiFi Speed | 2402 Mbps |
| Wireless Adapter Type | Internal |
Wireless Communications
| Bluetooth Version | Bluetooth 5.0 |
| WiFi Type | 802.11ax |
| Bluetooth | Yes |
Warranty
| Warranty | 1 Year |
Item Details
| Manufacturer | TP-Link |
| Manufacturer Code | ARCHER TX3000E |
| EAN | 6935364052256 |
| Condition | New |
