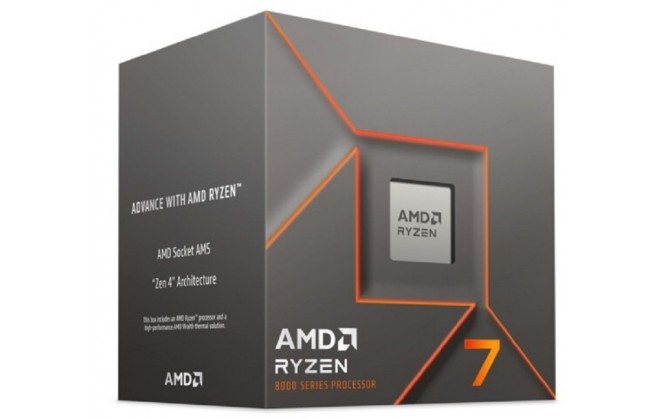

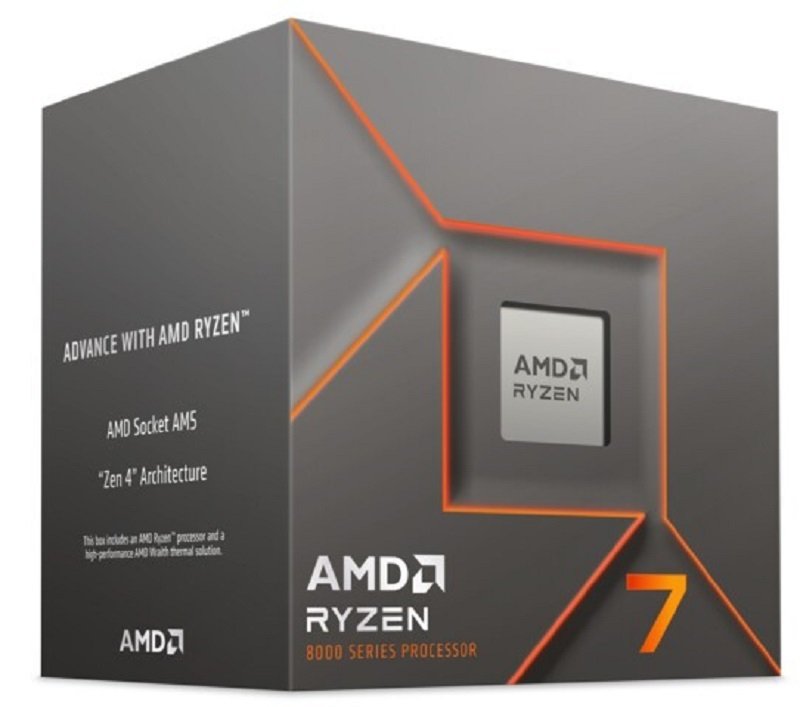

AMD Ryzen 7 8700F 5.0GHZ 8 Core AM5 CPU

Part Number: 100-100001590BOX
Manufacturer: AMD
Quickfind Code: 110221

Stock: In Stock

£176.52 ex. vat
£211.82 inc. vat

Product Features:

Condition: New
Socket Type AM5
Series Ryzen 7
Cores 8

+ Read More Information

Product Description

The Ryzen™ 7 8700F

Is an 8-core 'Zen 4' based NPU (APU with disabled integrated graphics) and part of the 'Phoenix' Desktop Processor family (8000G).

Performance wise we are pitting the new 8700F directly against the recently released 14400F, which it beats in both 2D and Gaming workloads.

Cherry on top, the 8700F does still have the IPU/NPU to enable Ryzen AI, when paired with a Radeon 7000 Series Graphics Card, which could be a strong selling point, especially over the 14400F but also other 14^th Gen Intel parts.

Because this CPU does not have integrated graphics, matching its price point, a perfect match for it would be to pair with our Radeon RX 7800 XT with 16GB of VRAM, or RX 7700XT, for a strong 1440p gaming system.

Technical Specification

AMD Ryzen 7 8700F 5.0GHZ 8 Core AM5 CPU

General Specifications
Name: AMD Ryzen™ 7 8700F
Family: Ryzen
Series: Ryzen 8000 Series
Form Factor: Desktops
AMD PRO Technologies: No
# of CPU Cores: 8
Multithreading (SMT): Yes
# of Threads: 16
Max. Boost Clock: Up to 5 GHz
Base Clock: 4.1 GHz
L2 Cache: 8 MB
L3 Cache: 16 MB
Default TDP: 65W
AMD Configurable TDP (cTDP): 45-65W
Processor Technology for CPU Cores: TSMC 4nm FinFET
CPU Compute Die (CCD) Size: 178mm²
Package Die Count: 1
Unlocked for Overclocking: Yes
AMD EXPO™ Memory Overclocking Technology: Yes
Precision Boost Overdrive: Yes
Curve Optimizer Voltage Offsets: Yes
AMD Ryzen™ Master Support: Yes
CPU Socket: AM5
CPU Boost Technology: Precision Boost 2
Instruction Set: x86-64
Supported Extensions: AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSSE3 , SSE4.1 , SSE4.2 , SSE4A , x86-64
Max. Operating Temperature (Tjmax): 95°C
OS Support: Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity
Native USB 4 (40Gbps) Ports: 2
Native USB 3.2 Gen 2 (10Gbps) Ports: 2
Native USB 2.0 (480Mbps) Ports: 1
PCI Express® Version: PCIe® 4.0
Native PCIe® Lanes (Total/Usable): 20 , 16
NVMe Support: Boot , RAID0 , RAID1
System Memory Type: DDR5
Memory Channels: 2
Max. Memory: 256 GB
System Memory Subtype: UDIMM
Max Memory Speed:
2X1R - DDR5-5200
2x2R - DDR5-5200
4x1R - DDR5-3600
4x2R - DDR5-3600

Graphics Capabilities
Graphics Model: Discrete Graphics Card Required

AI Engine Capabilities
Brand Name: AMD Ryzen™ AI
AMD Ryzen™ AI: Available when paired with a compatible Radeon graphics card with AI acceleration
Performance: Up to 16 TOPS
