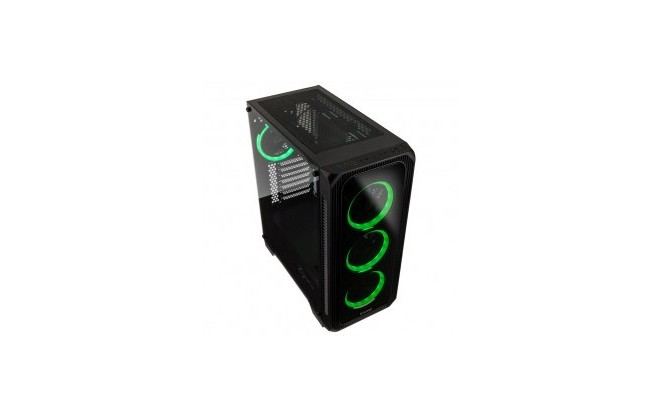

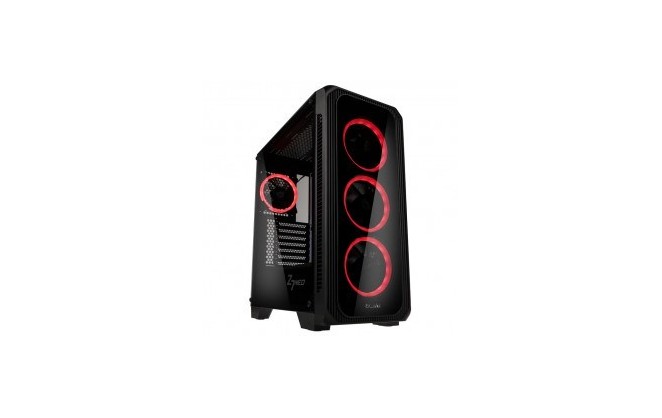

Zalman Z7 Neo Mid Tower Gaming Case

  • Part Number: Z7 NEO
  • Manufacturer: Zalman
  • Quickfind Code: 105128

  • Stock: Out Stock

Contact for availability


Product Features:
  • Condition: New
  • Form Factor ATX
  • RGB / LED Colour RGB
  • Main Colour Black
  • Side Panel Windowed
+ Read More Information

Share:

Product Description



The Z7 Neo from Zalman demonstrates once and for all that an affordable Midi-Tower does not need to cut corners. Quite to the contrary the Z7 Neo manages to impress with its clean lines minimalist black interior and the contrast that the pre-installed RGB-LED fans achieve with the rest of the case. Needless to say Zalman has also gone the extra mile in terms of craftsmanship.

The Features of the Zalman Z7 Neo Midi-Tower at a Glance:

  • Elegant Midi-Tower with font and side panel in tempered glass
  • Six fan slots and space for radiators up to 360 mm
  • Four 120 mm fans with RGB-LED lighting pre-installed
  • 2x 35-/25"- and 2x 25" drives possible
  • I/O panel with 1x USB 3.0 2x USB 2.0 2x 35 mm jack and RGB-LED controller
  • Supports graphics cards up to 355 mm

Zalman Z7 Neo: Midi-Tower with Tempered Glass and RGB-LED Controller

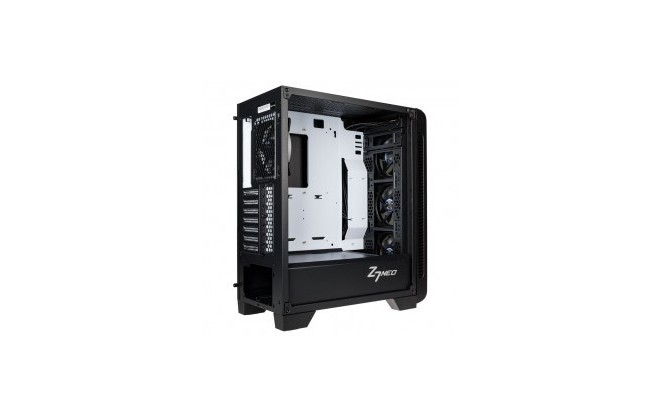

Zalman has given the Z7 Neo a stylish two-tone interior in black with a white motherboard tray. In the lower section of the case there is a black shroud supporting PSUs up to 18 cm in length with a modular drive cage for two 35- or 25" drives. Two additional 25" SSDs can be mounted to the rear of the motherboard tray.

The clean interior of the Midi-Tower is illuminated by means of four 120 mm RGB-LED fans. They are equipped with white dispersion rings and controlled by an RGB-LED controller to the rear of the motherboard tray. This is connected to a button on the I/O panel and can be hooked up to a 4-pin RGB connector on compatible motherboards in order to colour coordinate your peripherals via software. In total eight RGB-LED fans can be connected to the RGB-LED controller via proprietary 6-pin connectors as well as two RGB-LED strips with 4-pin connectors (12 V).

Versatile Cooling Options

The Zalman Z7 Neo offers multiple options for installing watercooling: there is space in the roof for a radiator up to 240 mm in size and the front supports a 360 mm radiator. When using air cooling in addition to the four pre-installed 120 mm fans in the front and back two 140- or 120 mm fans can be installed in the roof. CPU coolers are limited to a max height of 165 mm. A large magnetic filter in the top protects your components from unwanted dust.

Technical Specification

Zalman Z7 Neo Mid Tower Gaming Case

User Controls

User ControlsLED Controller

Optical Drive

Optical Drive TypeNone

Storage

External Expansion Bays0
Internal Expansion Bays3.5" x 2, 2.5" x 2
Floppy Disk Drive0

Expansion

Expansion Slots7

Interfaces/Ports

USB Ports3.0 x 1, 2.0 x 2
Headphone Portsx 1
Microphone In Portx 1

Electrical

Cooling SystemFans - Front: 120mm x 3 (RGB LED Ring fans x 3 included). Rear: 120mm x 1 (RGB LED Ring fan x 1 included). Top: 120mm x 2 / 140mm x 2. Radiator - Front: 120mm / 240mm / 280mm / 360mm. Top: 120mm / 240mm

Physical

Form FactorMidi Tower
Case ColourBlack
Kensington Lock SlotNo
Motherboard CompatibilityATX, mATX, Mini-ITX
Width213mm
Depth420mm
Height460mm
Weight7.2kg

Key Features

FirewireNo
Main ColourBlack
Case TypeTower
USB 3.0 SupportYes
Case Form FactorMid Tower
Power Supply IncludedNo
Optimised forGaming
80Plus RatedNo
PSU Form FactorATX
Display Model in ShowroomNo
e-SATANo
L.E.D FanRGB
Internal 3.5" Bay2
Internal 2.5" Bay2
ATXYes
Micro-ATXYes
ITXYes
E-ATXNo
XL-ATXNo
Cooler Height165 mm
Built-in Card ReaderNo
USB Type-C SupportNo
Front HDMINo
Side Panel TypeTempered Glass
GPU Length355 mm
PSU Depth180 mm
Front Audio TypeSeparate
Maximum Motherboard Size SupportedATX

Warranty

Warranty1 Year

Item Details

ManufacturerZalman
Manufacturer CodeZ7 NEO
EAN8809213769320
UPC823884208986
ConditionNew
