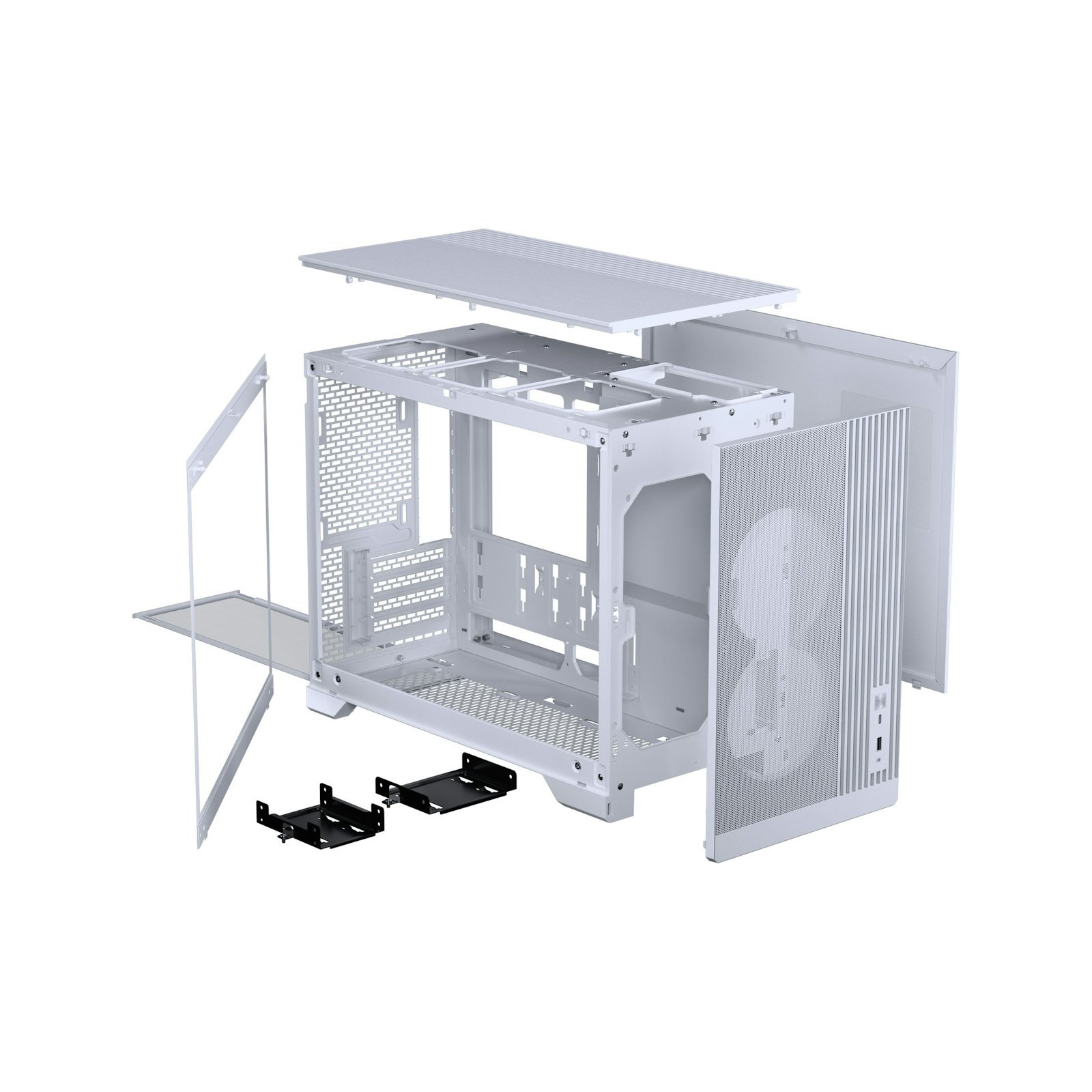

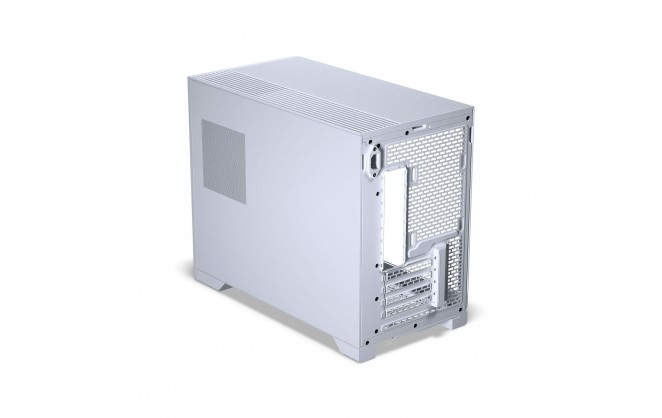

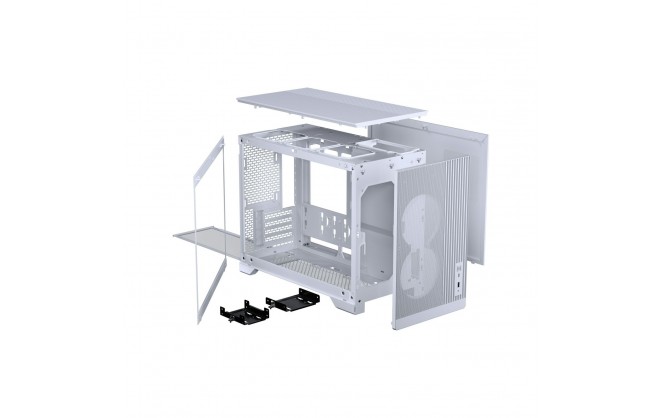

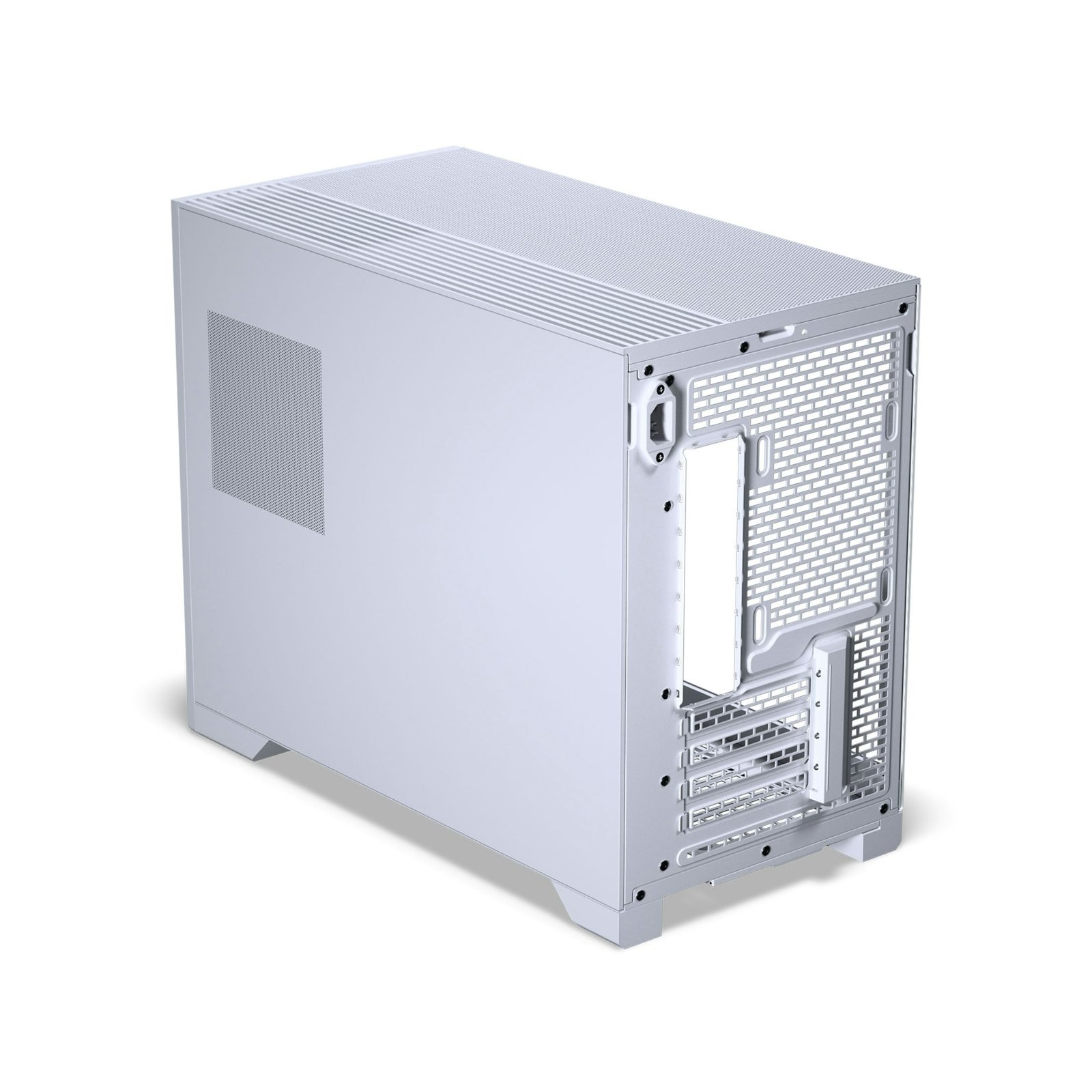

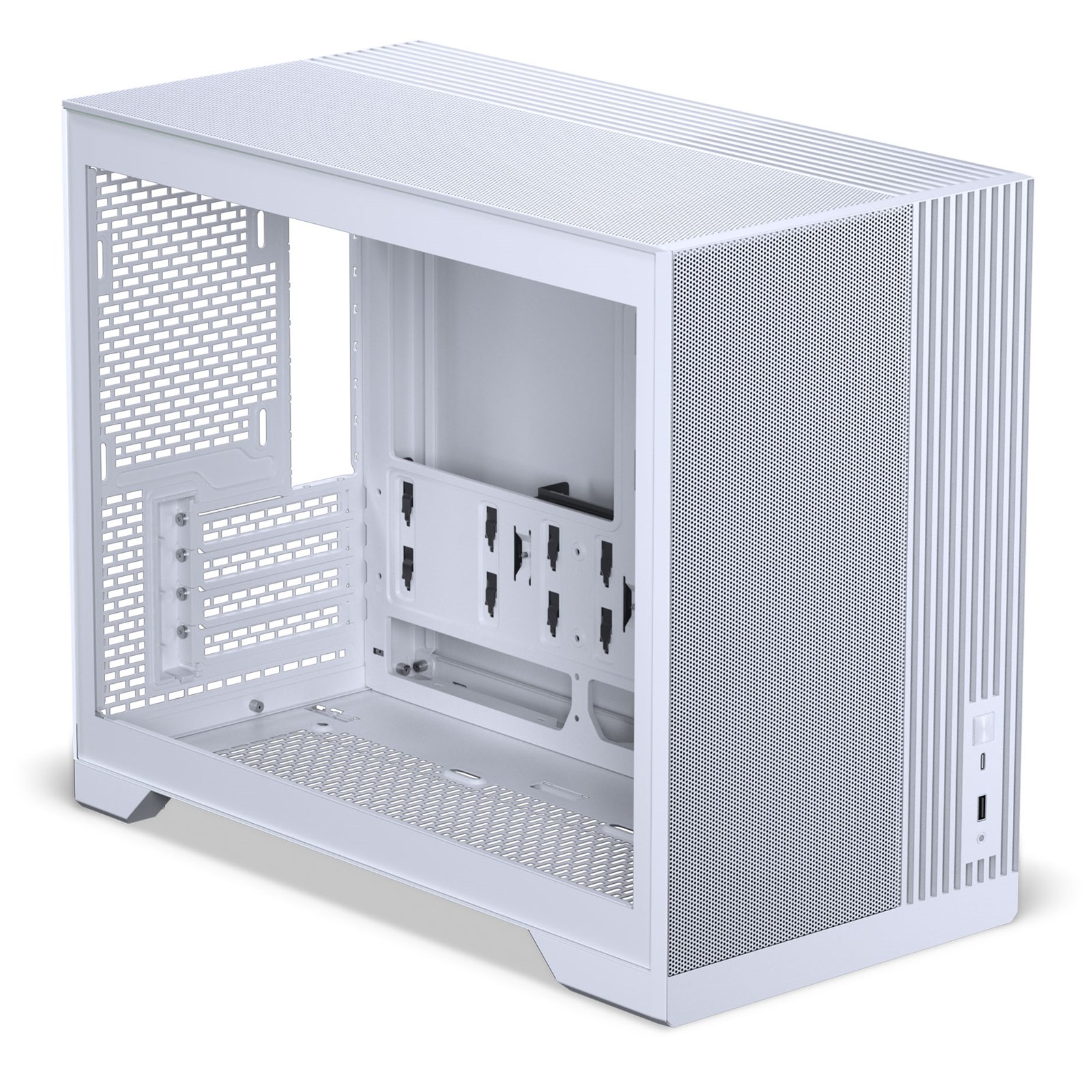

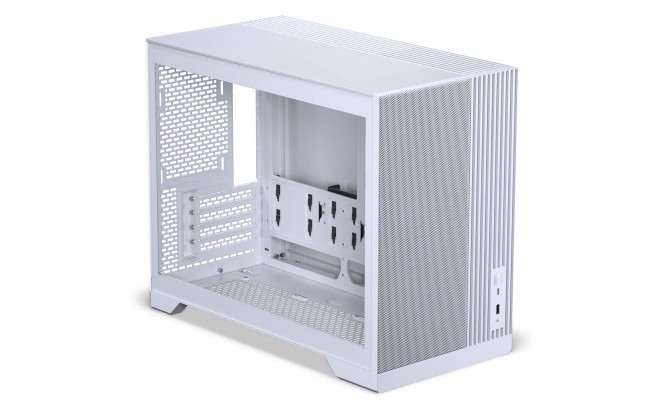

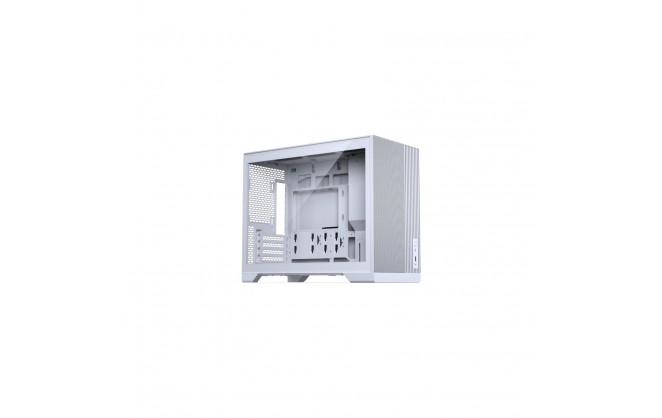

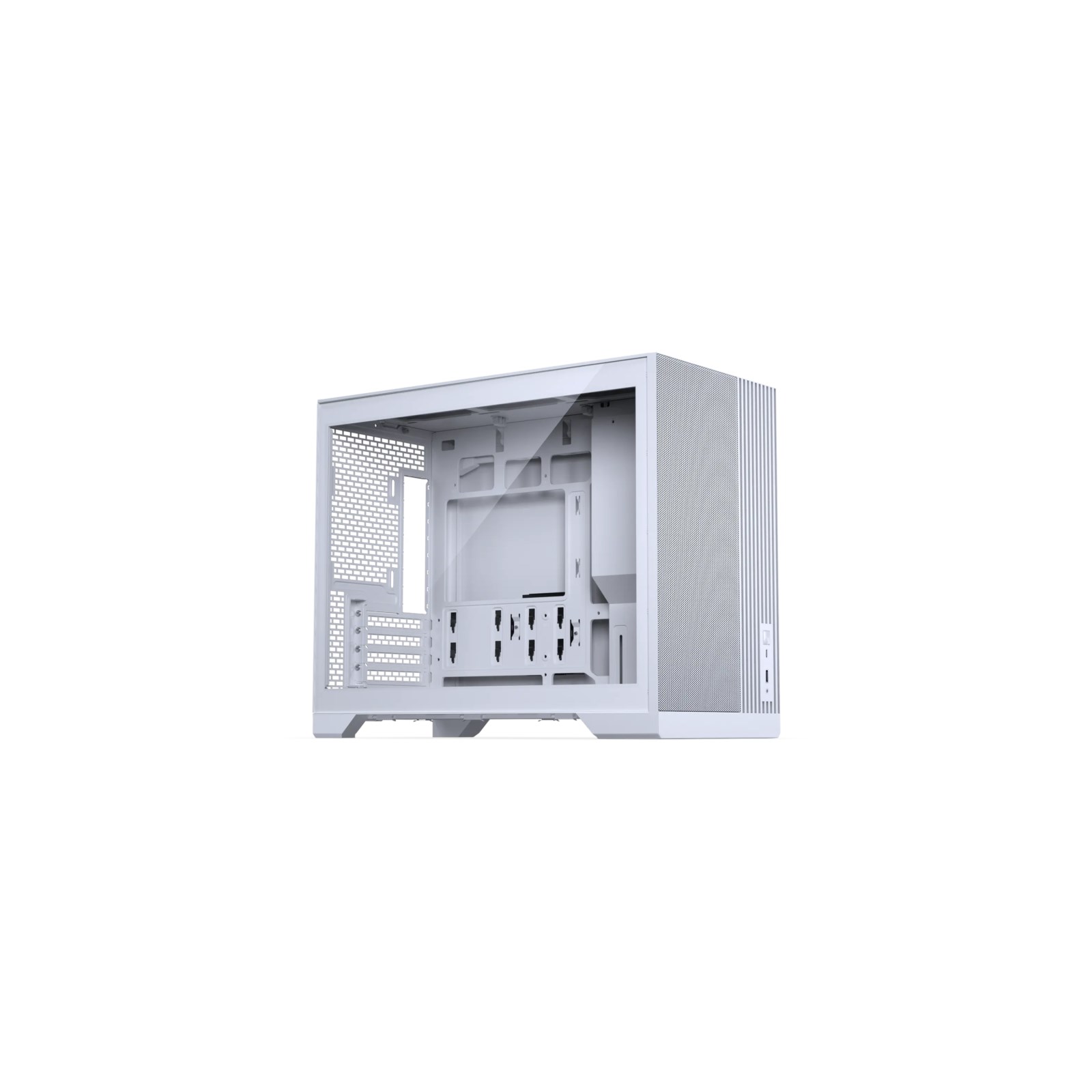

Phanteks XT M3 Mini Tower Gaming Case White

  • Part Number: PH-XT325M_WT01
  • Manufacturer: Phanteks
  • Quickfind Code: 105965
  • Stock: In Stock

£45.56 ex. vat
£54.67 inc. vat

Product Features:
  • Condition: New
  • Form Factor mATX
  • Main Colour White
  • Side Panel Tempered Glass
+ Read More Information

Share:

Product Description

Compact Gaming Chassis

  • Supports a total of nine 120 fans for powerful cooling within this compact chassis.
  • Dedicated 360 radiator space in the top of the chassis.
  • Triple fan locations in the bottom for direct GPU cooling.

Organised by Design

  • Spacious cable routing area for clean and efficient management.
  • Fully compatible with Rear-Connect mainboards for streamlined builds.

Fan Positions

  • 3x 120 mm top fans.
  • 2x 120 mm front fans.
  • 1x 120 mm rear fan.
  • 3x 120 mm bottom fans.

Radiator Positions

  • 1x 360 top radiator up to 410 x 122 x 60 mm
Technical Specification

Phanteks XT M3 Mini Tower Gaming Case White

Storage

Internal Expansion Bays2 x 2.5"
1 x 3.5"

Expansion

Expansion Slots4 x Full Height

Interfaces/Ports

USB Ports1 x USB-C 3.2
1 x USB 3.0
Headphone Ports1 x 3.5mm COMBO Jack
Microphone In PortShared with Headphone

Electrical

Cooling SystemTop: Supports 3 x 120mm fans
Front: Supports 2 x 120mm fans
Rear: Supports 1 x 120mm fan
Bottom: Supports 3 x 120mm fans
Power SupplyATX Power Supply supported

Physical

Form FactorMini Tower
Case ColourWhite
MaterialSteel
Tempered Glass
ABS
Motherboard CompatibilitymATX
Mini-ITX
In The BoxCase
Accessory Box
Width235 mm
Depth460 mm
Height370 mm
Weight5.57 kg

Warranty

Warranty5 Years

Key Features

Max Motherboard Width244 mm
Max Motherboard Height244 mm
Supports AIO CoolerYes
Main ColourWhite
Case TypeTower
Case Form FactorMini Tower
Power Supply IncludedNo
Optimised forGaming
80Plus RatedNo
PSU Form FactorATX
IlluminatedNo
L.E.D FanNo LED
Max 3.5" Drives1
Max 2.5" Drives2
ATXNo
Micro-ATXYes
ITXYes
E-ATXNo
Cooler Height175 mm
Built-in Card ReaderNo
USB Type-C SupportYes
Side Panel TypeTempered Glass
GPU Length430 mm
PSU Depth150 mm
RGB LED Controller IncludedNo
LED Strip(s) IncludedNo
Maximum Motherboard Size SupportedmATX
RGB Software TypeNone
Total 2.5" + 3.5" drive bays2
USB3.0 ports1
USB-C ports1
Low profile expansionNo
Max Supported Radiator Length360 mm
Create Your Own Gaming PC (CCL)No
Back Connect SupportYes

Item Details

ManufacturerPhanteks
Manufacturer CodePH-XT325M_WT01
EAN0886523303770
