Phanteks Evolv X2 Mid Tower Gaming Case - White

Part Number: PH-ES524XTG_DMW01
Manufacturer: Phanteks
Quickfind Code: 105926

Stock: In Stock

£124.16 ex. vat
£148.99 inc. vat

Product Features:

Condition: New
Form Factor E-ATX
Main Colour White
Side Panel Tempered Glass

+ Read More Information

Product Description

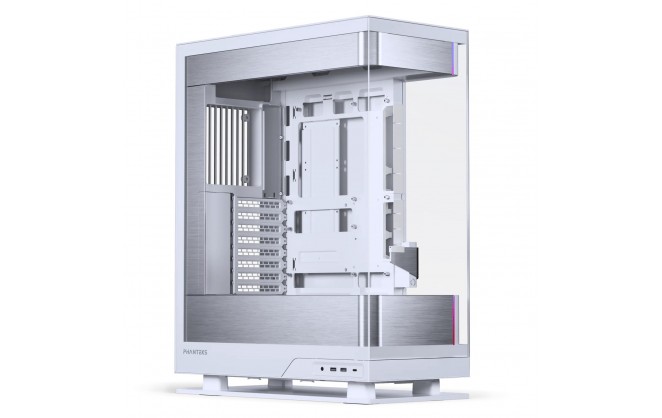

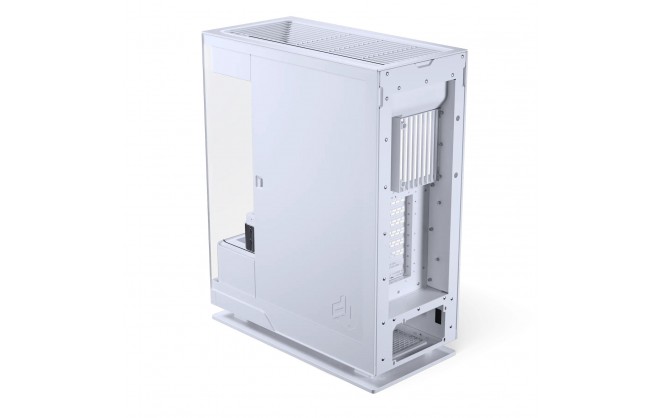

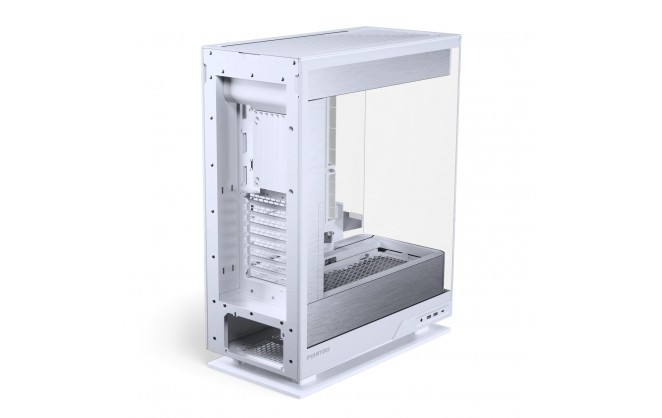

The Evolv X2 redefines the desktop computer with its see-through glass design, aluminum interior, and powerful vertical cooling solution. The entire chassis floats above its base, drawing in surrounding air and channeling it efficiently through the GPU and CPU. Hot air is expelled through the top ventilation, enhancing thermal performance.

The interior of the Evolv X2 has been carefully designed to blend with the hardware components for a fully integrated look, with all cooling components sitting flush into the top and base. The integrated lighting and high-quality aluminum internal panels add flair to your system.

Designed To Cool

Efficient vertical airflow design, drawing fresh air from the bottom and expelling warm air through the top.
Floating chassis design ensures superior cooling by maximizing air intake through the bottom fan positions.
Hot air is exhausted through the top, directed away from the user, thanks to the slanted grill design.

Looking Clean

Mainboard and graphics card sitting front and center.
Cooling fans and radiator sit hidden into the chassis as one.
The large cover door fully hides all cables behind the mainboard.
Supports rear-connect mainboards for a zero-cable build.

Premium Build Quality

Super strong steel and aluminum C-frame design.
Unique see-through chassis showcases the mainboard and graphics card.
Brushed aluminum interior wrapped around the cooling components.

Integrated Lighting

Smooth and diffuse D-RGB lines run from top to bottom of the Evolv X2.
3x built-in D-RGB LED strips are pre-installed and connected.

Storage

Side Storage Bracket - Supports 3x 2.5″ SSD drives.
Bottom Storage Bracket - Supports 2x 3.5” HDD drives or 1x 3.5” HDD and 2x 2.5” SSD drives.

Fan Positions

Top - 3x 120 mm
Rear - 1x 120 mm
Bottom - 3x 120 mm

Radiator Positions

Top - 1x 360 (Up to 410 x 130 x 38 mm)

Technical Specification

Phanteks Evolv X2 Mid Tower Gaming Case - White

User Controls

Power
Reset

Storage

Internal Expansion Bays

Up to 5 x 2.5"
Up to 2 x 3.5"

Expansion

Expansion Slots

8 x Full Height

Interfaces/Ports

USB Ports	1 x USB-C 3.2 2 x USB 3.0
Headphone Ports	1 x 3.5mm COMBO Jack
Microphone In Port	Shared with Headphone

Electrical

Cooling System	Top: Supports 3 x 120mm fans Rear: Supports 1 x 120mm fan Bottom: Supports 3 x 120mm fans
Power Supply	ATX Power Supply supported

Warranty

5 Years

Physical

Form Factor	Mid Tower Case
Case Colour	White
Material	Steel Aluminium Tempered Glass ABS
Motherboard Compatibility	E-ATX (up to 280mm) ATX mATX Mini-ITX
In The Box	1 x Evolv X2 chassis 1 x Storage bracket Pre-installed 1 x SSD bracket Pre-installed 6 x Zip ties 1 x Stand-off removal tool 1 x D-RGB mainboard adapter 500 mm 1 x Microfiber cloth 30 x Mainboard & SSD screws 4 x Power supply screws 8 x HDD screws 4 x Vertical-GPU bracket screws 1 x Mainboard stand-off
Width	228 mm
Depth	454 mm
Height	588 mm
Weight	14.2 kg

Key Features

Max Motherboard Width	280 mm
Max Motherboard Height	305 mm
Supports AIO Cooler	Yes
Main Colour	White
Case Type	Tower
Case Form Factor	Mid Tower
Power Supply Included	No
Optimised for	Gaming
80Plus Rated	No
PSU Form Factor	ATX
Illuminated	Yes
L.E.D Fan	No LED
Max 3.5" Drives	2
Max 2.5" Drives	5
ATX	Yes
Micro-ATX	Yes
ITX	Yes
E-ATX	Yes
Cooler Height	170 mm
Built-in Card Reader	No
USB Type-C Support	Yes
Side Panel Type	Tempered Glass
GPU Length	380 mm
PSU Depth	250 mm
RGB LED Controller Included	No
LED Strip(s) Included	No
Maximum Motherboard Size Supported	E-ATX
RGB Software Type	None
Total 2.5" + 3.5" drive bays	5
USB3.0 ports	2
USB-C ports	1
Low profile expansion	No
Max Supported Radiator Length	360 mm
Create Your Own Gaming PC (CCL)	Yes
Back Connect Support	No
