£72.59 ex. vat
£87.11 inc. vat
Share:
Only 2L larger than the original O11D Mini, but redesigned for greater hardware compatibility and improved airflow.
An extended side mesh design accommodates ATX PSUs up to 200mm without increasing the case width.
The case offers broad motherboard support, including standard ATX, M-ATX, and Mini-ITX form factors. For users seeking next-level cable management and cleaner builds, Back-Connect compatibility is exclusively available with ATX Back-Connect motherboards.
Due to its compact design, the O11D MINI V2 only has 5 slots (first slot left out). So ATX motherboards that require the GPU to be installed in the first slot may not be compatible. For users with such motherboards, use of the included vertical GPU bracket is needed.
A 10° slanted bottom channels cool air directly to the GPU for better cooling performance and a cleaner look.
This case features movable motherboard standoffs, allowing vertical adjustment of the M-ATX mounting position. This flexibility enhances compatibility with 280mm radiators, as well as thicker 360mm or 240mm models.
Install fans or radiators outside the case, then drop in the entire bracket, simplifying the build process. The removable design also integrates a dust filter, keeping your system clean while making maintenance easy.
Tool-less fan cover brackets help seal off unused fan mounts, concentrating airflow where it matters most.
The I/O module supports top or bottom placement, offering flexibility for various build layouts and desk arrangements.
With the I/O module relocated to the top, the lower I/O and cover can now be removed to enhance bottom intake airflow. An optimization aimed at improving thermal efficiency and ease of transport.
Horizontal and Vertical GPU brackets are included out of the box, giving users the freedom to choose their GPU orientation.
The vertical GPU support bracket features height adjustment to accommodate thick cards and prevent GPU sag.
This case comes with a built-in cable bracket that holds the 24-pin ATX power cable firmly in place, keeping it aligned and secure. This reduces strain on the connector and helps maintain a neat, organized appearance.
Thoughtfully positioned for different assembly zones, our cable straps make cable routing simpler and cleaner, even in tight spaces. Whether you’re a first-time builder or a seasoned pro, this smart design ensures a faster, neater, and more enjoyable building experience.
Dual-purpose drive cages accommodate 2.5″ and 3.5″ HDDs or offer dedicated space for cable management, ensuring a clean and tidy build.
Engineered to maximize clearance in compact setups, the bottom cable grommets provide optimized pathways for your cables, ensuring functional flexibility and a seamless, uncluttered build aesthetic.
Machined aluminum feet enhance case stability while contributing to a refined overall aesthetic.

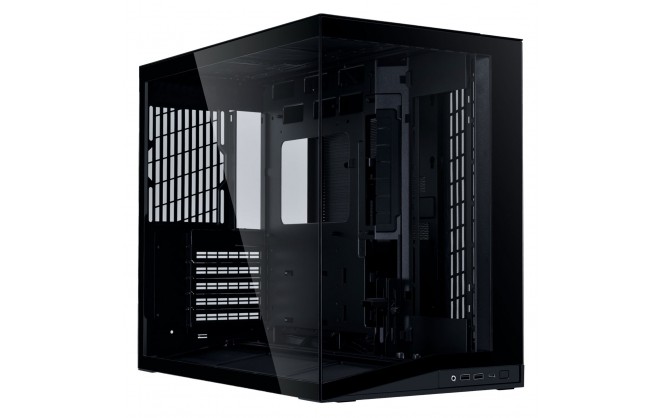

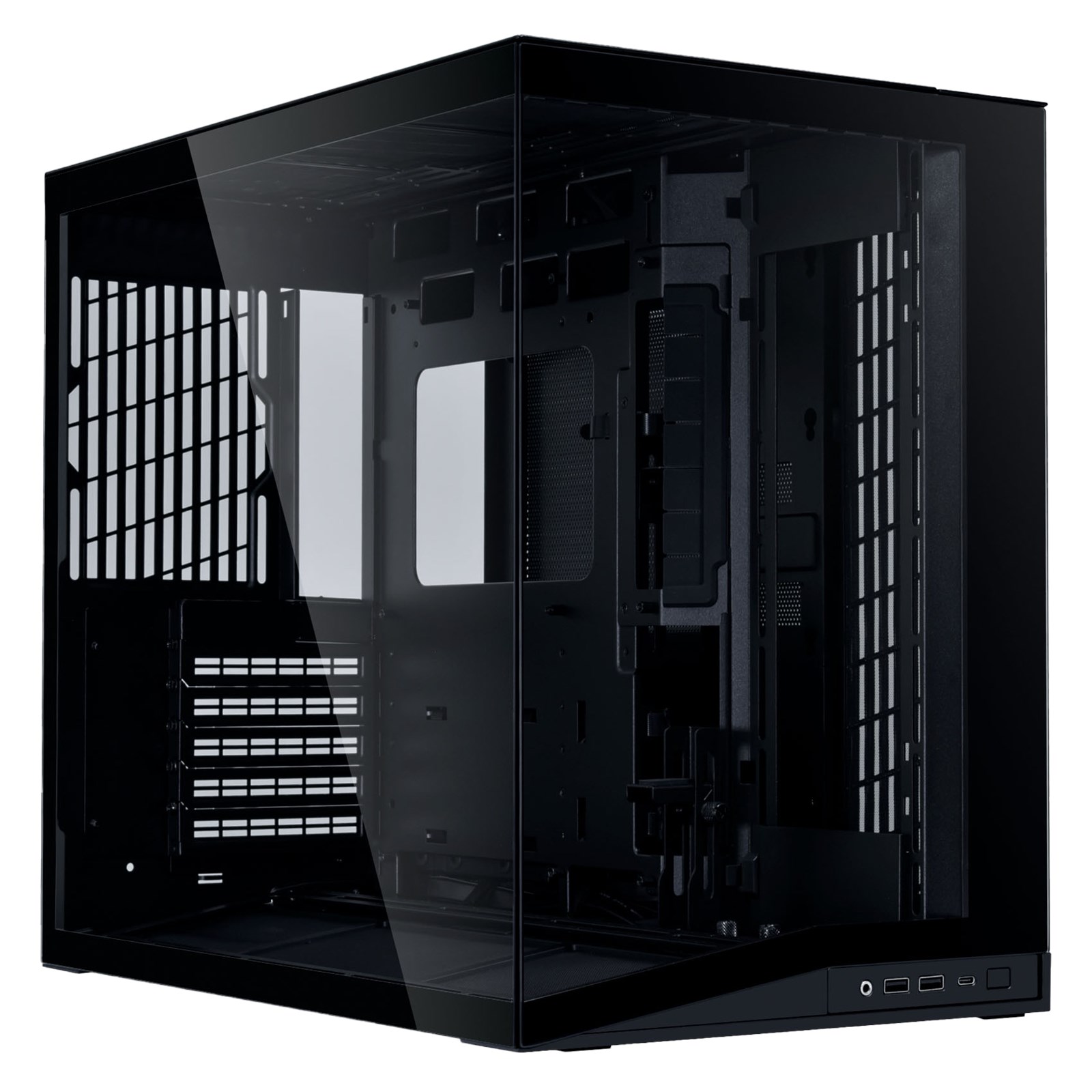

Lian Li O11 Dynamic Mini V2 Mid Tower Gaming Case Black
User Controls
| User Controls | Power |
Storage
| Internal Expansion Bays | 2 x 2.5" 2 x 2.5"/3.5" |
Expansion
| Expansion Slots | 5 x Full Height |
Interfaces/Ports
| USB Ports | 1 x USB-C 3.2 2 x USB 3.0 |
| Headphone Ports | 1 x 3.5mm COMBO Jack |
| Microphone In Port | Shared with Headphone |
Electrical
| Cooling System | Top: Supports 2 x 140mm or 3 x 120mm fans Side: Supports 2 x 120mm fans Bottom: Supports 3 x 120mm fans Rear: Supports 1 x 120mm fan |
| Power Supply | ATX Power Supply supported |
Physical
| Form Factor | Mid Tower Case |
| Case Colour | Black |
| Material | 2mm Aluminium 1mm Mesh 4mm Tempered Glass |
| Motherboard Compatibility | ATX mATX Mini-ITX |
| In The Box | Case Accessory Kit |
| Width | 273.3 mm |
| Depth | 423.6 mm |
| Height | 391.95 mm |
Warranty
| Warranty | 2 Years |
Key Features
| Max Motherboard Width | 244 mm |
| Max Motherboard Height | 305 mm |
| Supports AIO Cooler | Yes |
| Main Colour | Black |
| Case Type | Tower |
| Case Form Factor | Mid Tower |
| Power Supply Included | No |
| Optimised for | Gaming |
| 80Plus Rated | No |
| PSU Form Factor | ATX |
| Illuminated | No |
| L.E.D Fan | No LED |
| Max 3.5" Drives | 2 |
| Max 2.5" Drives | 4 |
| ATX | Yes |
| Micro-ATX | Yes |
| ITX | Yes |
| E-ATX | No |
| Cooler Height | 160 mm |
| Built-in Card Reader | No |
| USB Type-C Support | Yes |
| Side Panel Type | Tempered Glass |
| GPU Length | 400 mm |
| PSU Depth | 200 mm |
| RGB LED Controller Included | No |
| LED Strip(s) Included | No |
| Maximum Motherboard Size Supported | ATX |
| RGB Software Type | None |
| Total 2.5" + 3.5" drive bays | 4 |
| USB3.0 ports | 2 |
| USB-C ports | 1 |
| Low profile expansion | No |
| Max Supported Radiator Length | 360 mm |
| Create Your Own Gaming PC (CCL) | Yes |
| Back Connect Support | Yes |
Item Details
| Manufacturer | Lian Li |
| Manufacturer Code | O11DMIV2X |
| EAN | 4718466019837 |
