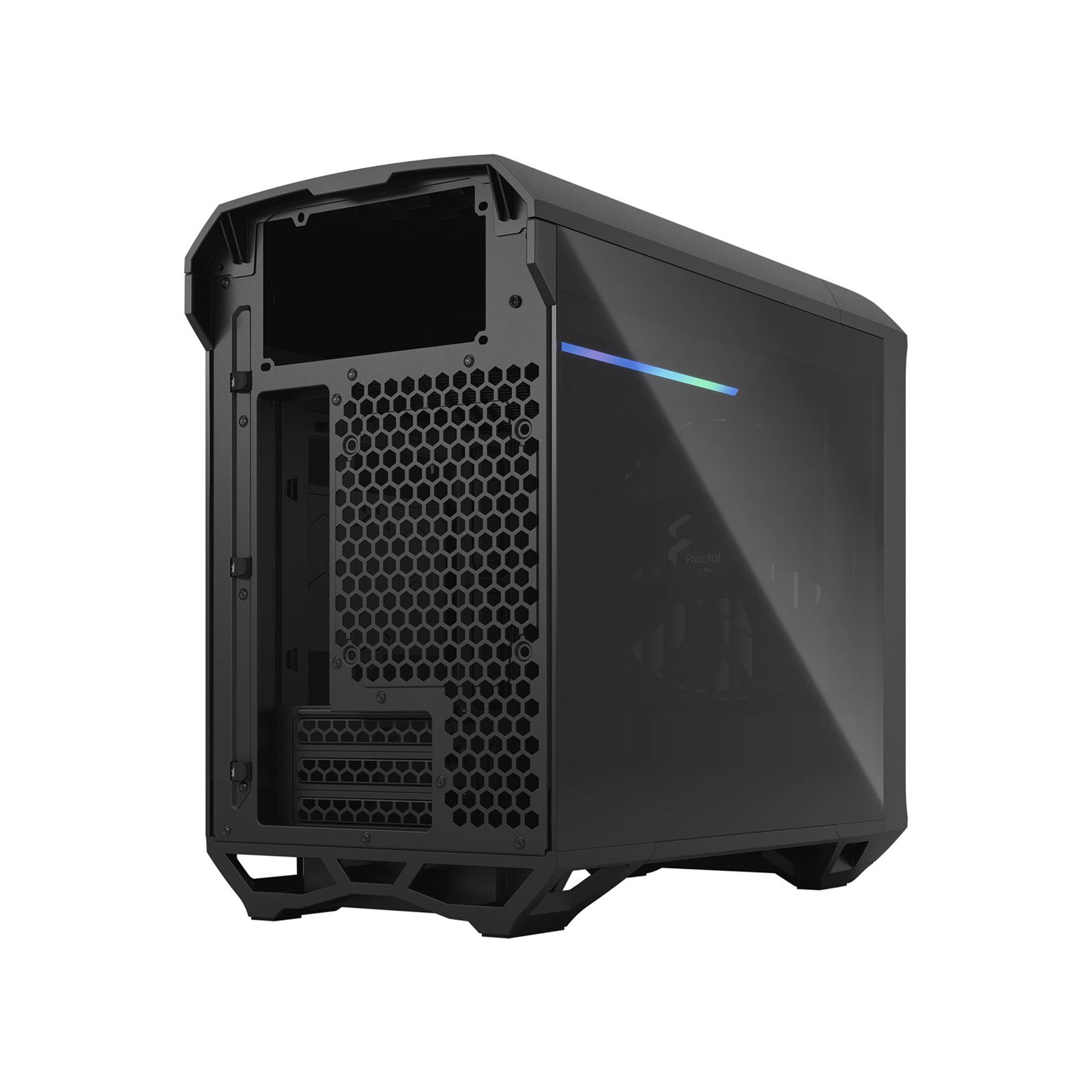

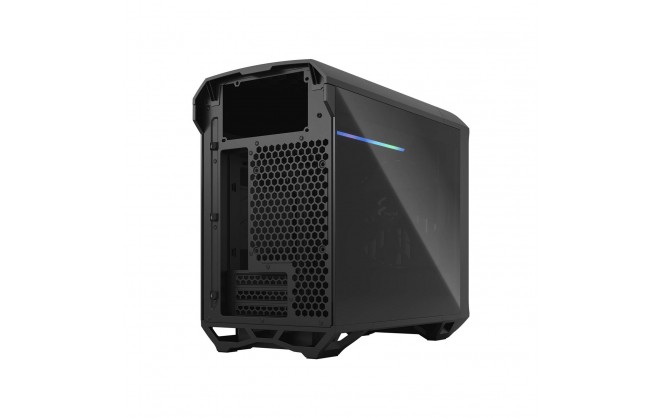

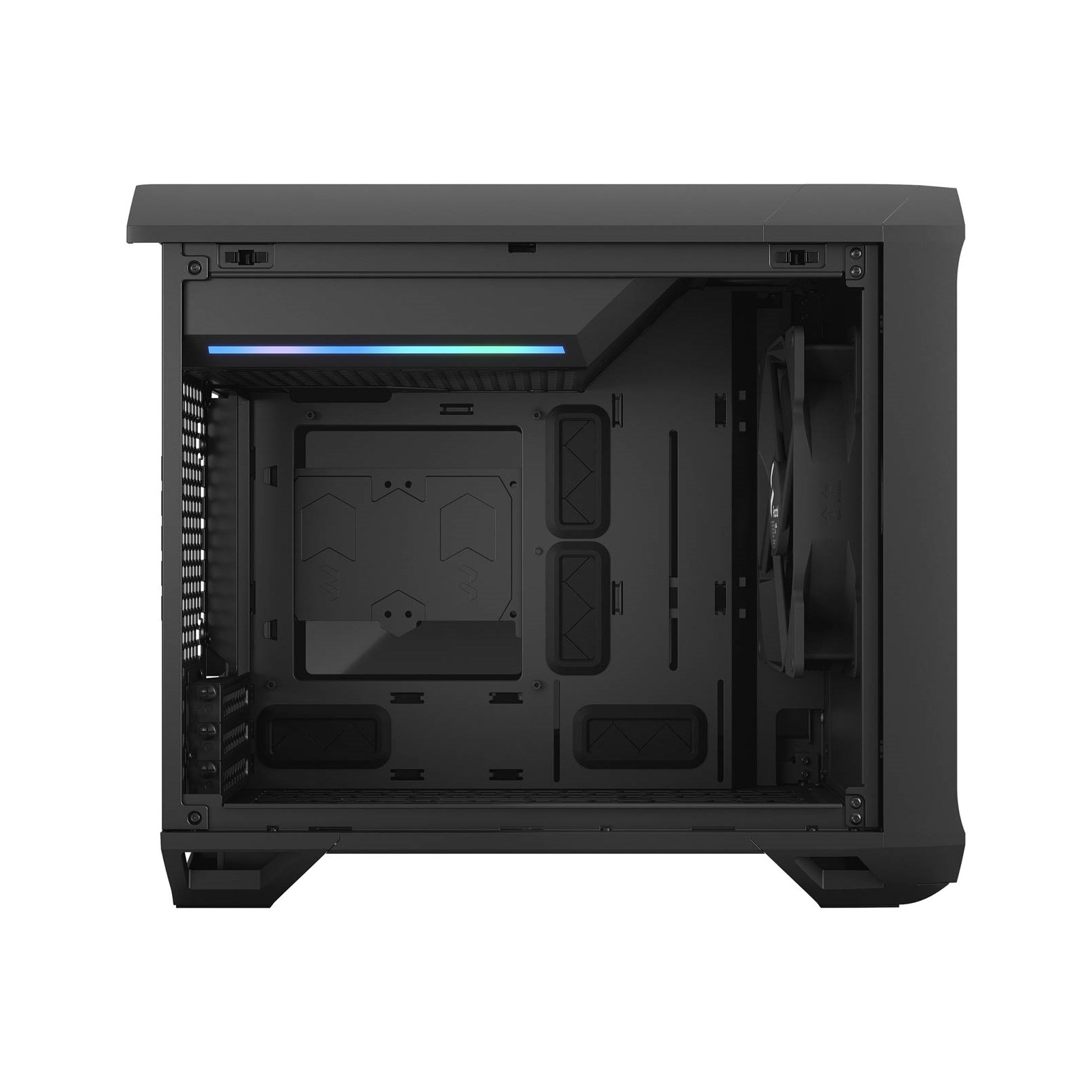

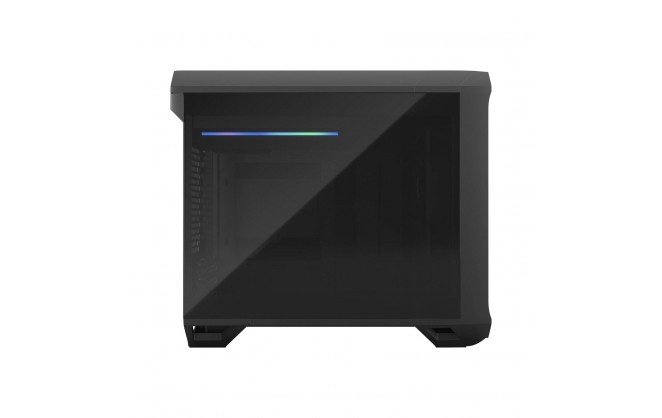

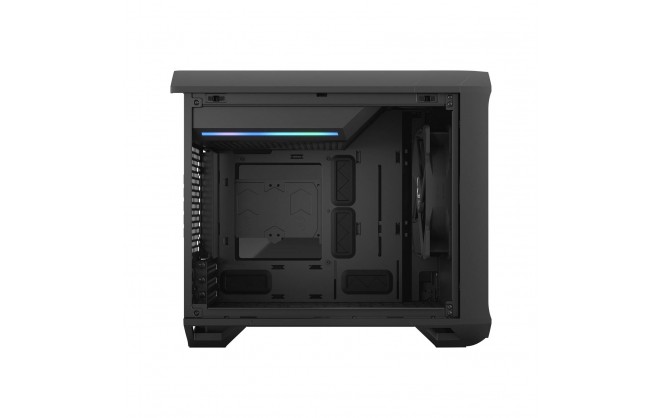

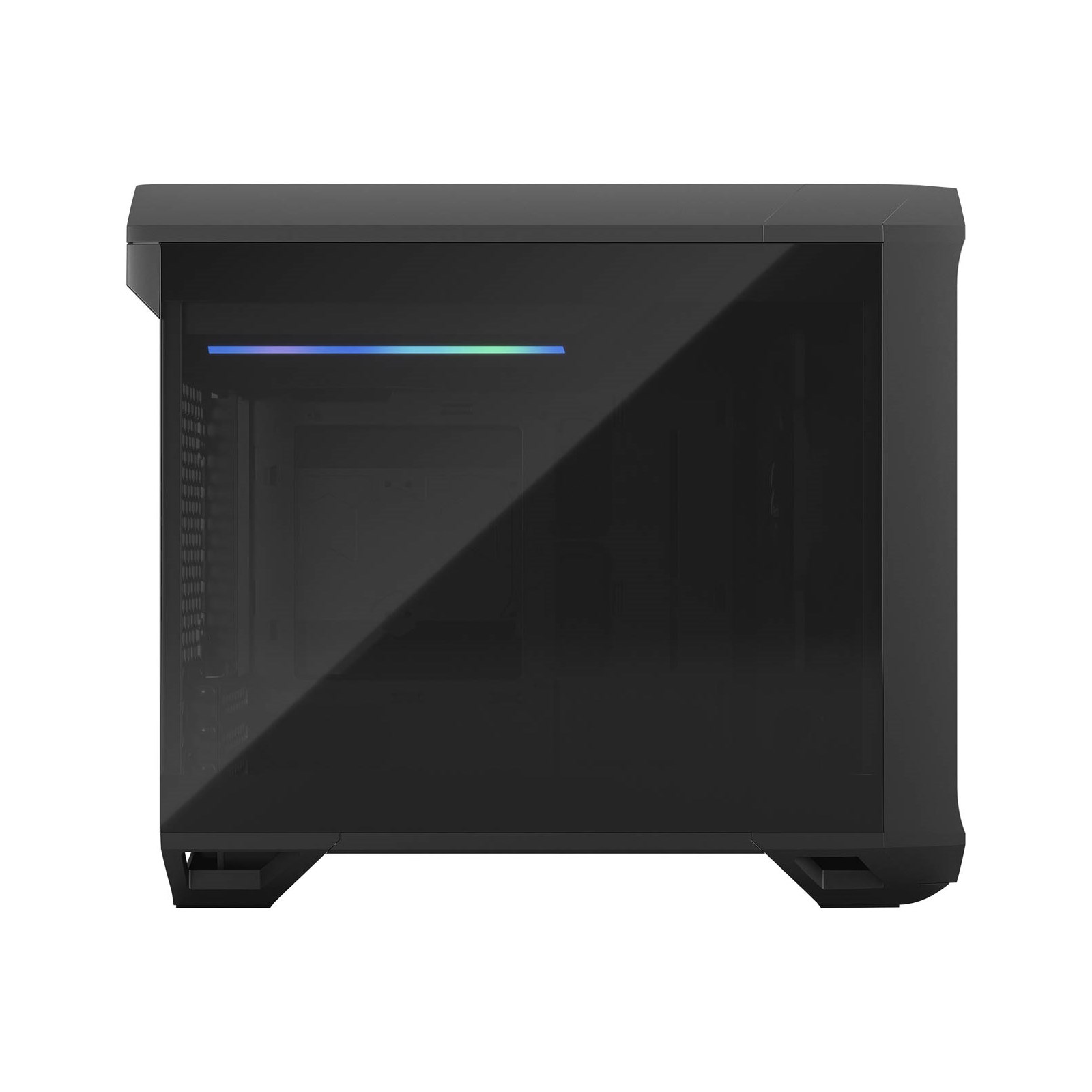

Fractal Design Torrent Nano TG Case Black

Part Number: FD-C-TOR1N-01
Manufacturer: Fractal Design
Quickfind Code: 105383

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
Side Panel Tempered Glass
Form Factor ITX
Main Colour Black

+ Read More Information

Product Description

The Torrent Nano is built to air cool your small build as efficiently as possible. Main standouts include an unobstructed base intake, an open front grille and one of our 180 x 38 mm Dynamic PWM fans (Prisma for RGB version) custom-made to achieve maximum air cooling while maintaining controlled noise levels. Enabling highly efficient cooling with or without a water-loop, the Torrent Nano is a perfect fit for air cooling aficionados looking for a small case.

Main Features

Fan and LED lights on TG versions fully controllable through motherboards supporting addressable RGB (5V)
RGB TG version includes a 180 mm Prisma ARGB PWM fan
Seamless tempered glass panels with bolt-free top-latching mechanisms for easy handling
Front fan brackets allow for unblocked airflow to the larger fan while catering to standard radiator sizes
Removable top bezel and routing clips with velcro ties make for easy installation and cable management
A sturdy, vibration-damped drive tray supporting a single HDD or dual SSDs with two optional mounting positions
A dedicated SSD bracket with room for 2x 2.5" drives included
Three bridgeless expansion slots
The GPU is situated just above the bottom air intake, allowing it to breathe
GPU support bracket that helps your GPU stay level
Dust filters for front and bottom easily accessible by removing the front
Integrated support for a water-cooling reservoir on the motherboard tray
Includes a PWM fan (180 mm) for balancing performance, cooling and noise

Technical Specification

Fractal Design Torrent Nano TG Case Black

Storage

Internal Expansion Bays

2 x 2.5"
1 x 3.5"

Expansion

Expansion Slots

3 x Full Height

Interfaces/Ports

USB Ports	1 x USB-C 3.1 2 x USB 3.0
Headphone Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack

Electrical

Cooling System	Front: Supports 1 x 180mm or 2 x 140/120mm fans (1 x 180mm fan included) Bottom: Supports 2 x 140/120mm fans Rear: Supports 1 x 120mm fan
Power Supply	ATX Power Supply supported

Physical

Form Factor	ITX Case
Case Colour	Black
Motherboard Compatibility	Mini-ITX Mini-DTX
In The Box	Torrent Nano Case Accessory Box User Manual Extra Front Fan Brackets GPU Support Bracket
Width	222 mm
Depth	417 mm
Height	374 mm
Weight	6.0 kg

Warranty

2 Years

Key Features

Firewire	No
Main Colour	Black
Case Type	SFF
USB 3.0 Support	Yes
Case Form Factor	ITX
Power Supply Included	No
80Plus Rated	No
PSU Form Factor	ATX
Display Model in Showroom	No
Illuminated	Yes
e-SATA	No
L.E.D Fan	No LED
Internal 3.5" Bay	1
Internal 2.5" Bay	2
ITX	Yes
Cooler Height	165 mm
Built-in Card Reader	No
USB Type-C Support	Yes
Front HDMI	No
Side Panel Type	Tempered Glass
GPU Length	335 mm
PSU Depth	200 mm
Front Audio Type	Separate
Number of Fans	1 fan(s)
LED Controller Included	No
LED Strip(s) Included	No
Maximum Motherboard Size Supported	ITX
RGB Software Type	None
