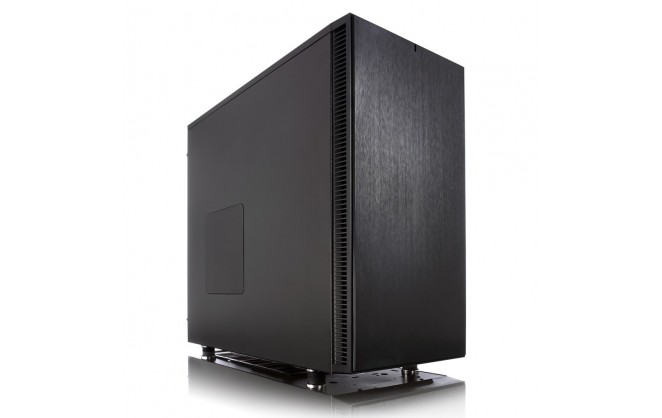

Fractal Design Define S Mid Tower Gaming Case

Part Number: FD-CA-DEF-S-BK
Manufacturer: Fractal Design
Quickfind Code: 105108

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
Form Factor ATX
Main Colour Black
Side Panel Solid

+ Read More Information

Product Description

The Fractal Design Define S lends the appearance, sound dampening technology, and support for a wide variety of components from the widely popular Define Series, while introducing a new, innovative internal layout. The Define S case is packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful and expansive air and liquid cooling support, presented in a stunning Scandinavian inspired construction.

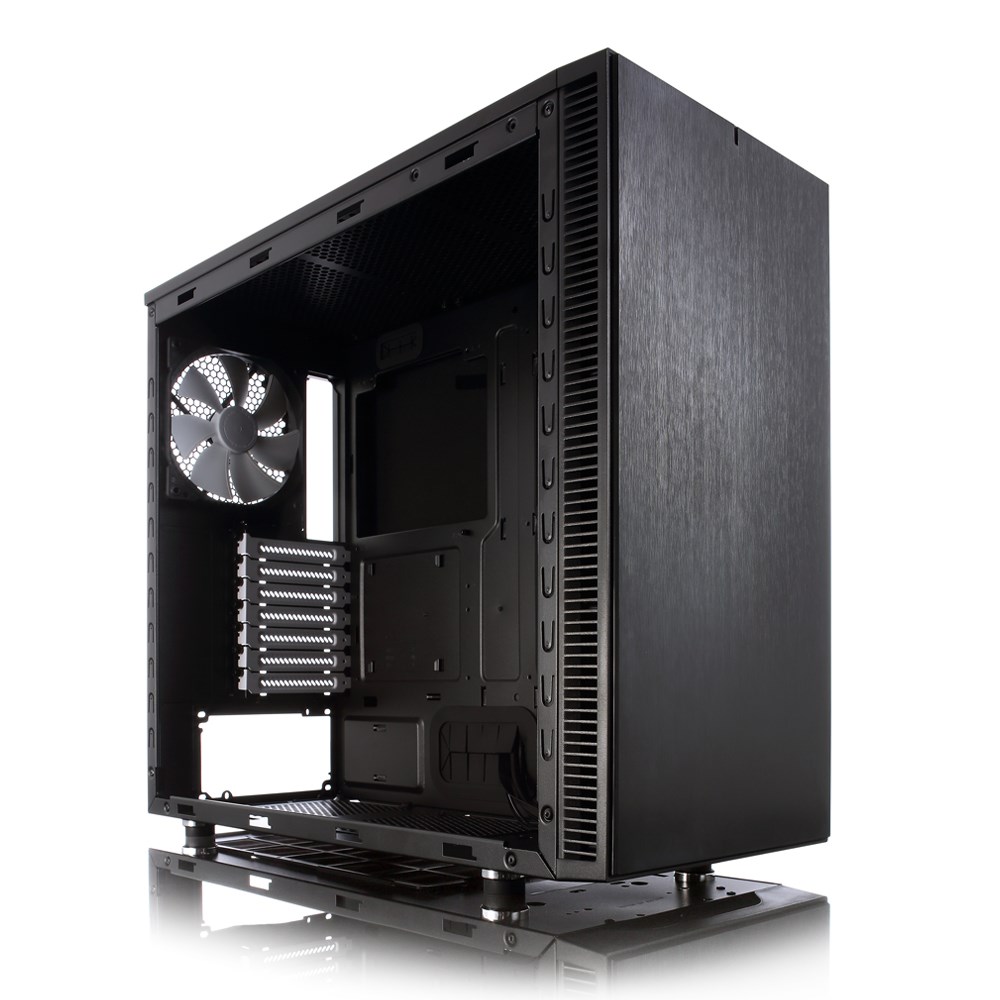

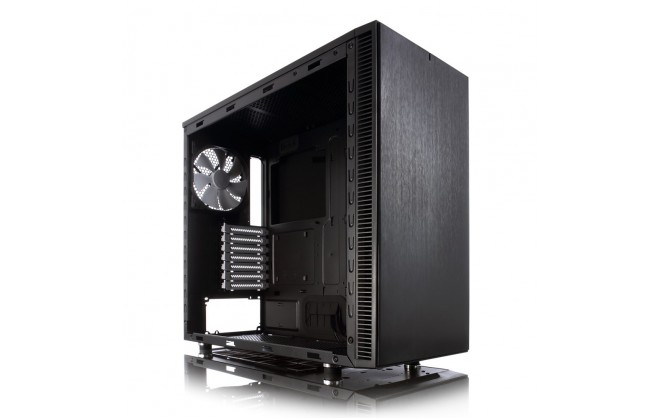

The modernized internal layout of the Define S omits the optical drive bays, instead focusing on a clear straight airflow path and uncompromising water cooling support.

The Define S case reaches the highest level of silent computing through strategically placed dense sound-absorbing material, multiple ModuVent™ fan vent covers and finely tuned Dynamic Series fans.

Cooling system

Front: 3 – 120/140 mm fans (included is 1 Fractal Design Dynamic GP14 fan, 1000 RPM speed)
Rear: 1 – 120/140 mm fan (included is 1 Fractal Design Dynamic GP14 fan, 1000 RPM speed)
Top: 3 - 120/140 mm fan (not included) or 1 - 180 mm fan with 165mm hole spacing (not included)
Bottom: 1 – 120/140 mm fan (not included)
Side: 1 – 120/140 mm fan (not included)
Dust filters: Bottom and front intakes

Water cooling compatibility - Radiators

Front – 360, 280, 240, 140 and 120 mm radiators of all thicknesses
Top – 420, 360, 280, 240, 140 and 120 mm radiators. (A thickness limitation of 55mm for both radiator + fan applies on 420, 280 and 140 mm radiators)
Bottom – 120 mm radiator (Use of radiators in the bottom position limits the PSU length to 165 mm)
Rear – 120 or 140 mm radiator

Water cooling compatibility - Pumps

Pre-drilled holes on the bottom panel, supports many DDC and D5 variants

Water cooling compatibility - Reservoirs

Adjustable mounting brackets allow for almost any rectangular mounting screw pattern
Maximum distance between the mounting bracket screw positions: 350mm height / 80mm width

Front interface

2 USB 3.0
Audio in/out
Power button with LED (blue)
HDD activity LED (blue)
Reset button

Main Features

Optimally designed for silent computing, while not compromising on airflow and cooling capabilities
Innovative internal layout, providing a perfectly straight airflow path to the CPU heatsink for air cooling set ups or extensive radiator mounting possibilities for water cooling set ups
Extensive water cooling support for a case of this size; housing radiators up to 420mm in the top and 360mm in the front
Including smart reservoir brackets; featuring drill-free reservoir mounting on the front of the motherboard tray and pre-drilled pump mounting holes on the bottom panel
Equipped with ModuVent fan slot covers providing the option of additional cooling or maximum sound absorption
Including two Fractal Design Dynamic GP14 140mm fans developed for superlative airflow while still maintaining low noise levels
Maintaining a dust-free interior with dust filters that cover the front and bottom air intakes

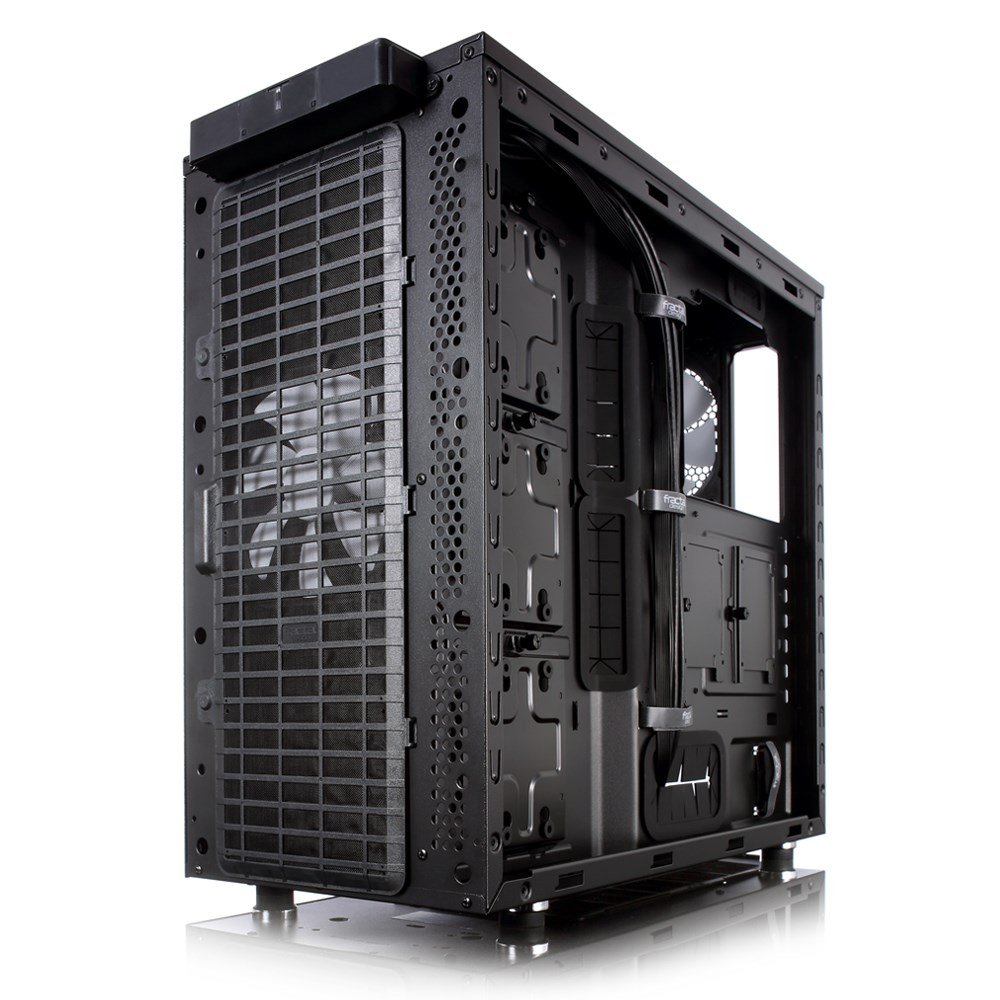

Introducing newly designed hard drive trays placed vertically behind the front partition of the motherboard tray - Three sturdy steel trays with vibration-dampening grommets allowing for installation of one 3.5" or 2.5" drive on each tray, without disrupting the airflow or interfering with the radiator mounting possibilities

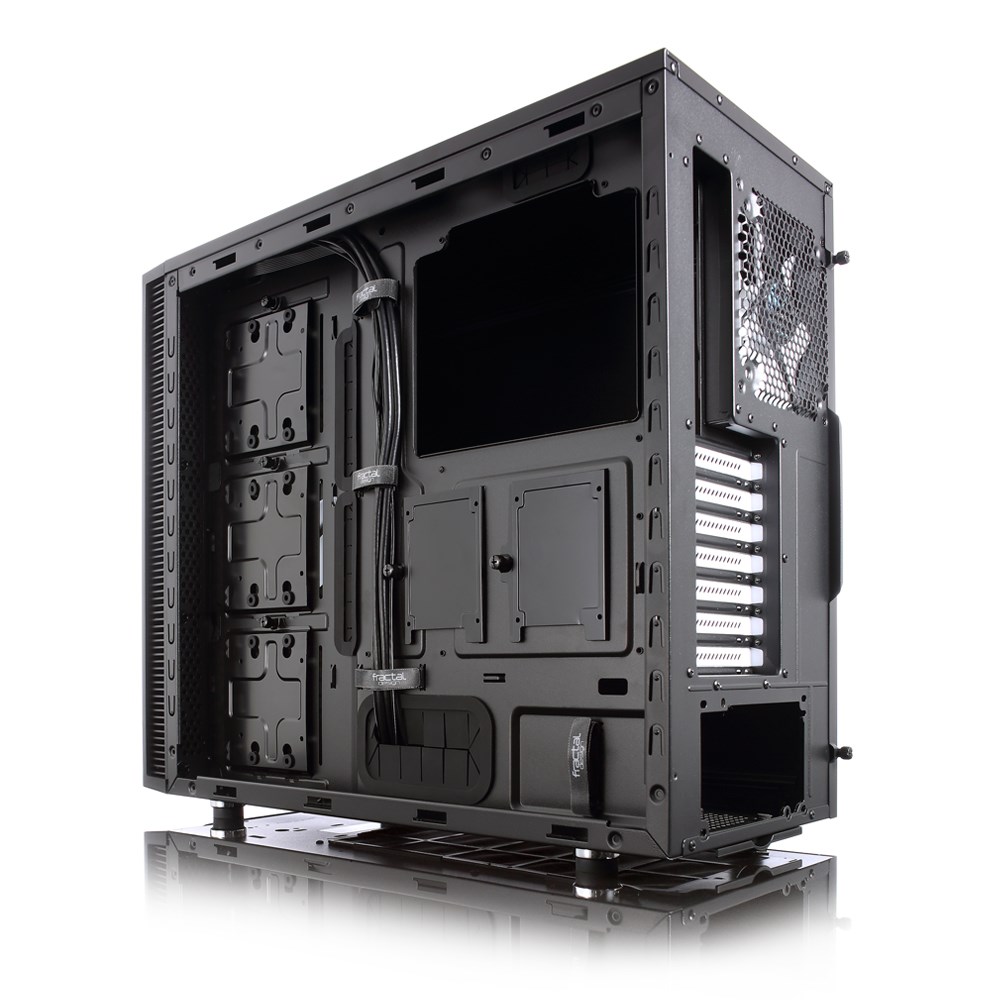

An additional 2 dedicated steel SSD trays cleanly placed behind the motherboard tray
Long motherboard tray extending to the front panel contributing to an extremely clean build, hiding both hard drives and cables
Define S model is also available with a large window on the side panel

Technical Specification

Fractal Design Define S Mid Tower Gaming Case

Storage

Number of Bays for Hot Pluggable Hard Drives

Expansion

Expansion Slots

Interfaces/Ports

USB Ports	2 x USB 3.0
Headphone Ports	1
Microphone In Port	1

Physical

Form Factor	Computer Case
Case Colour	Black
In The Box	Define S computer case • User manual • Accessory box
Width	23.3 cm
Depth	52 cm
Height	45.1 cm
Weight	9.1 kg

Key Features

Firewire	No
Main Colour	Black
Case Type	Tower
USB 3.0 Support	Yes
Case Form Factor	Mid Tower
Power Supply Included	No
Optimised for	Gaming
80Plus Rated	No
PSU Form Factor	ATX
Display Model in Showroom	No
e-SATA	No
L.E.D Fan	No LED
Internal 3.5" Bay	3
Internal 2.5" Bay	2
ATX	Yes
Micro-ATX	No
ITX	No
E-ATX	No
XL-ATX	No
Built-in Card Reader	No
USB Type-C Support	No
Front HDMI	No
Side Panel Type	Solid
Front Audio Type	Separate
Maximum Motherboard Size Supported	ATX
