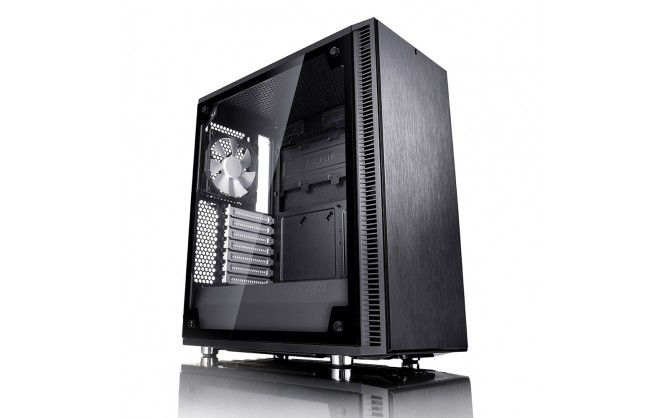

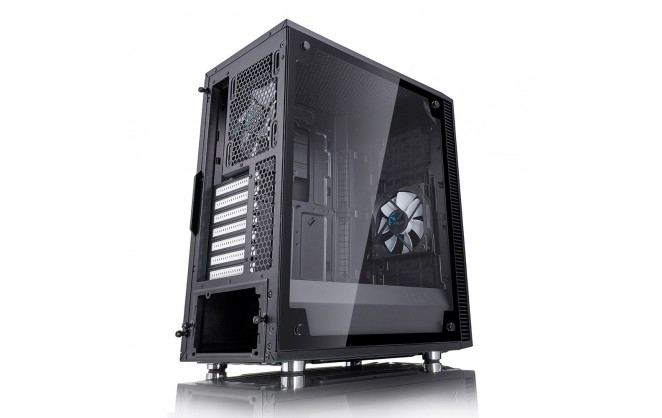

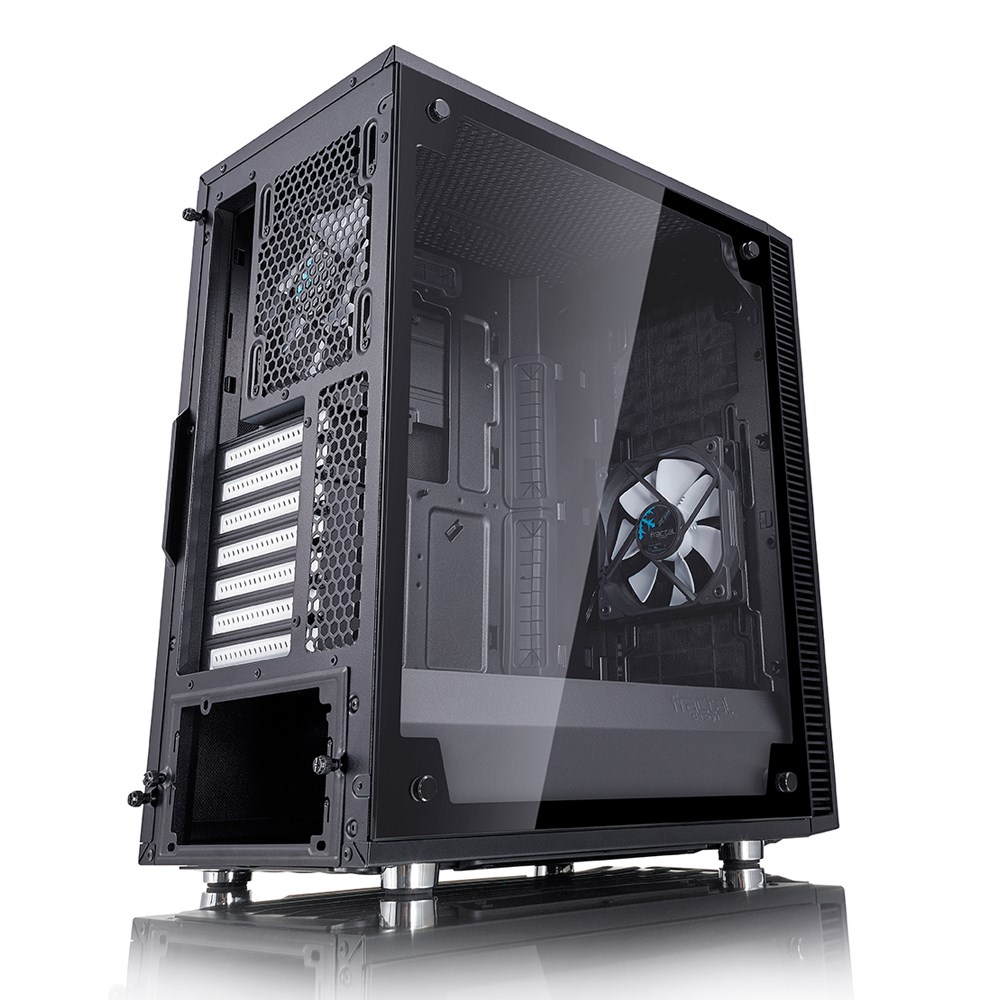

Fractal Design Define C TG Gaming Case

Part Number: FD-CA-DEF-C-BK-TG
Manufacturer: Fractal Design
Quickfind Code: 105172

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
Form Factor ATX
Main Colour Black
Side Panel Tempered Glass

+ Read More Information

Product Description

So many cases on the market today are made to be all things to all people. However, for many this results in a chassis full of empty bays, unused mounts and excess bulk. Created for those who demand a flexible platform for a powerful ATX or Micro ATX build that wastes no space, the Define C TG Series is the perfect solution to satisfy this balance of capacity and efficiency while opening up the side thanks to a full tempered glass side panel.

Smaller than the usual ATX and Micro ATX case, the Define C TG and Define Mini C TG with its optimized interior provides the perfect base for users. The open air design offers unobstructed airflow across your core components with high performance and silent computing in mind at every step.

Clearances

Max. Power Supply Depth: 175mm
Max. GPU Length: 315mm
Max. CPU Cooler Height: 172mm
Cable Routing Space: 15-35mm

Main Features

Define Series sound dampening with ModuVent™ technology for silent operation in a compact full ATX form factor
Optimized for high airflow and silent computing

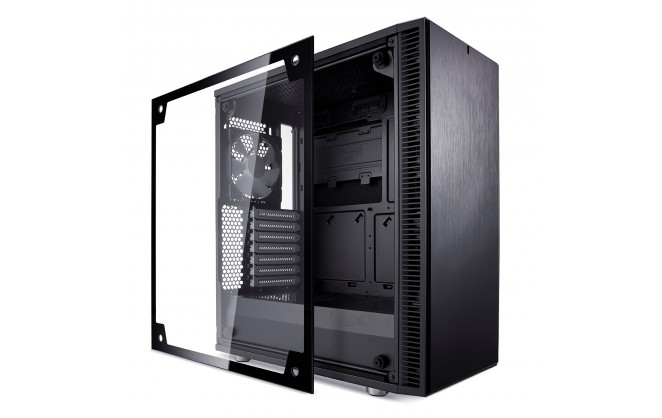

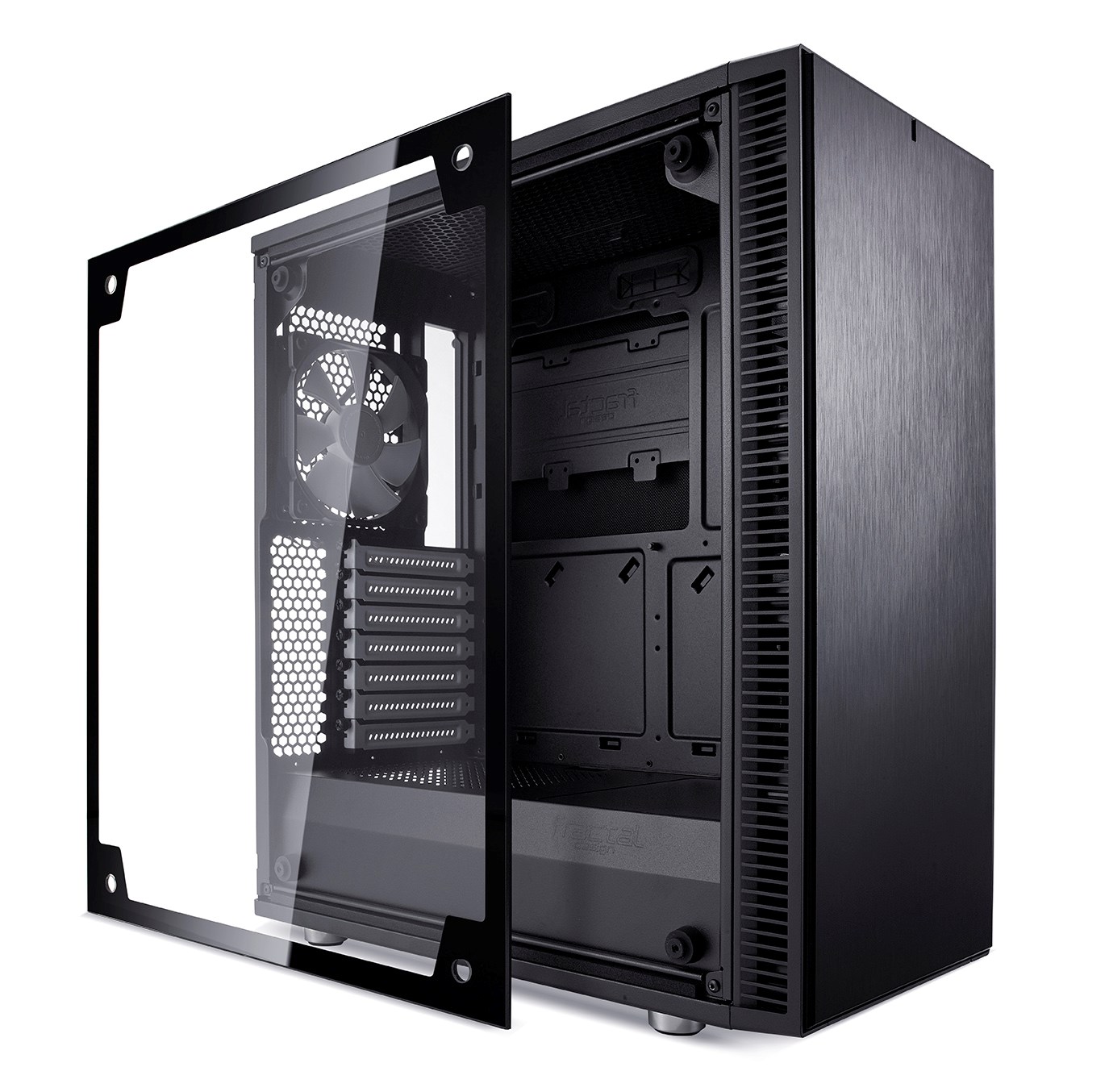

Tempered glass side panel for a clean looking exterior with full interior visibility
Side and front panels are lined with industrial-grade sound dampening material
Flexible storage options with room for up to 5 drives
Comes with two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans optimized to deliver maximum airflow while still maintaining a low noise level
Open air designed interior creates an unobstructed airflow path from the front intake to the rear exhaust
Easy-to-clean high airflow nylon filters on the front and base with full PSU coverage and front access for convenience.
Includes optional top filter to prevent dust buildup when ModuVent is removed for additional fan slots.

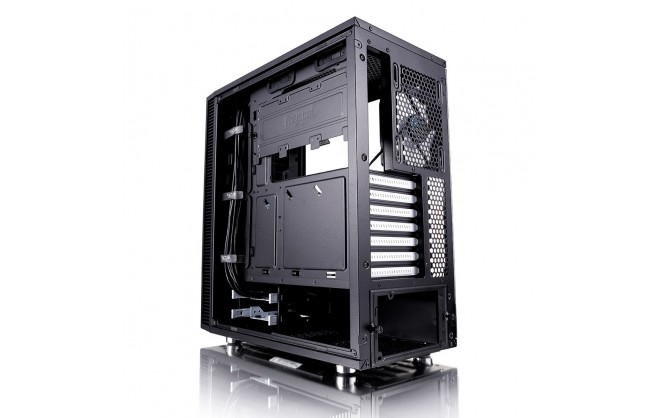

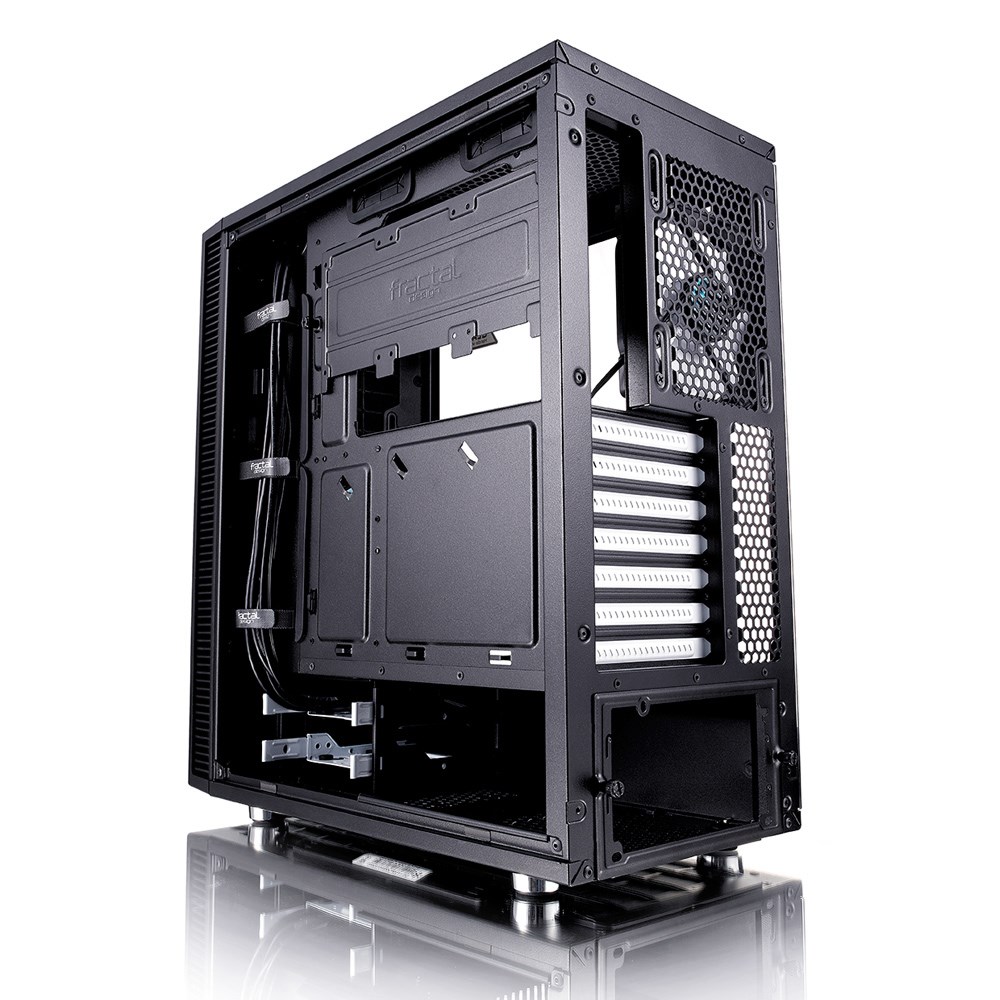

Power supply shroud conceals drive cage and excess cabling for an even quieter and cleaner looking interior free of airflow obstructions

Technical Specification

Fractal Design Define C TG Gaming Case

Storage

Internal Expansion Bays

2 x 2.5"/3.5" • 3 x 2.5"

Expansion

Expansion Slots

7 x Full Height

Interfaces/Ports

USB Ports	2 x USB 3.0
Headphone Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack

Electrical

Power	ATX Power Supply supported
Cooling System	Front: Supports 3 x 120mm or 140mm fans (1 x 120mm included) Top: Supports 2 x 120mm or 140mm fans Rear: Supports 1 x 120mm fan (included) Bottom: Supports 1 x 120mm fan

Physical

Form Factor	Mid Tower Case
Case Colour	Black
Motherboard Compatibility	ATX • mATX • ITX

Key Features

Firewire	No
Main Colour	Black
Case Type	Tower
USB 3.0 Support	Yes
Case Form Factor	Mid Tower
Power Supply Included	No
Optimised for	Gaming
80Plus Rated	No
PSU Form Factor	ATX
Display Model in Showroom	No
e-SATA	No
L.E.D Fan	No LED
Internal 3.5" Bay	2
Internal 2.5" Bay	3
ATX	Yes
Micro-ATX	No
ITX	No
E-ATX	No
XL-ATX	No
Cooler Height	172 mm
Built-in Card Reader	No
USB Type-C Support	No
Front HDMI	No
Side Panel Type	Tempered Glass
GPU Length	315 mm
PSU Depth	175 mm
Front Audio Type	Separate
Maximum Motherboard Size Supported	ATX
