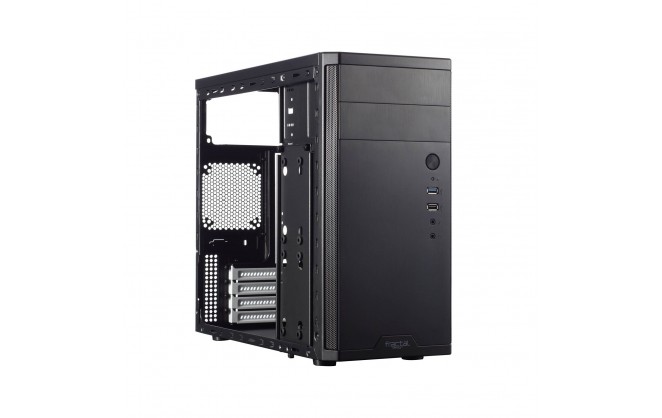

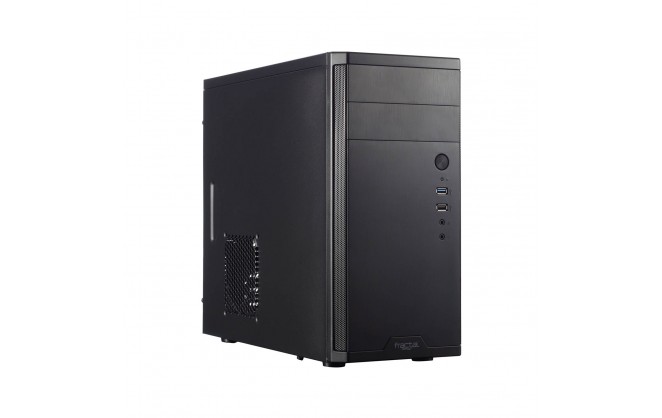

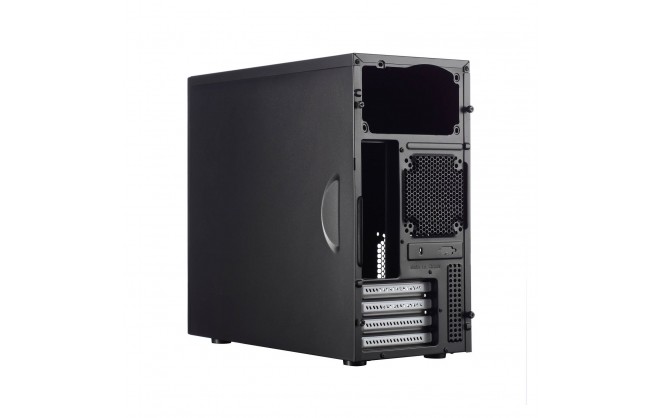

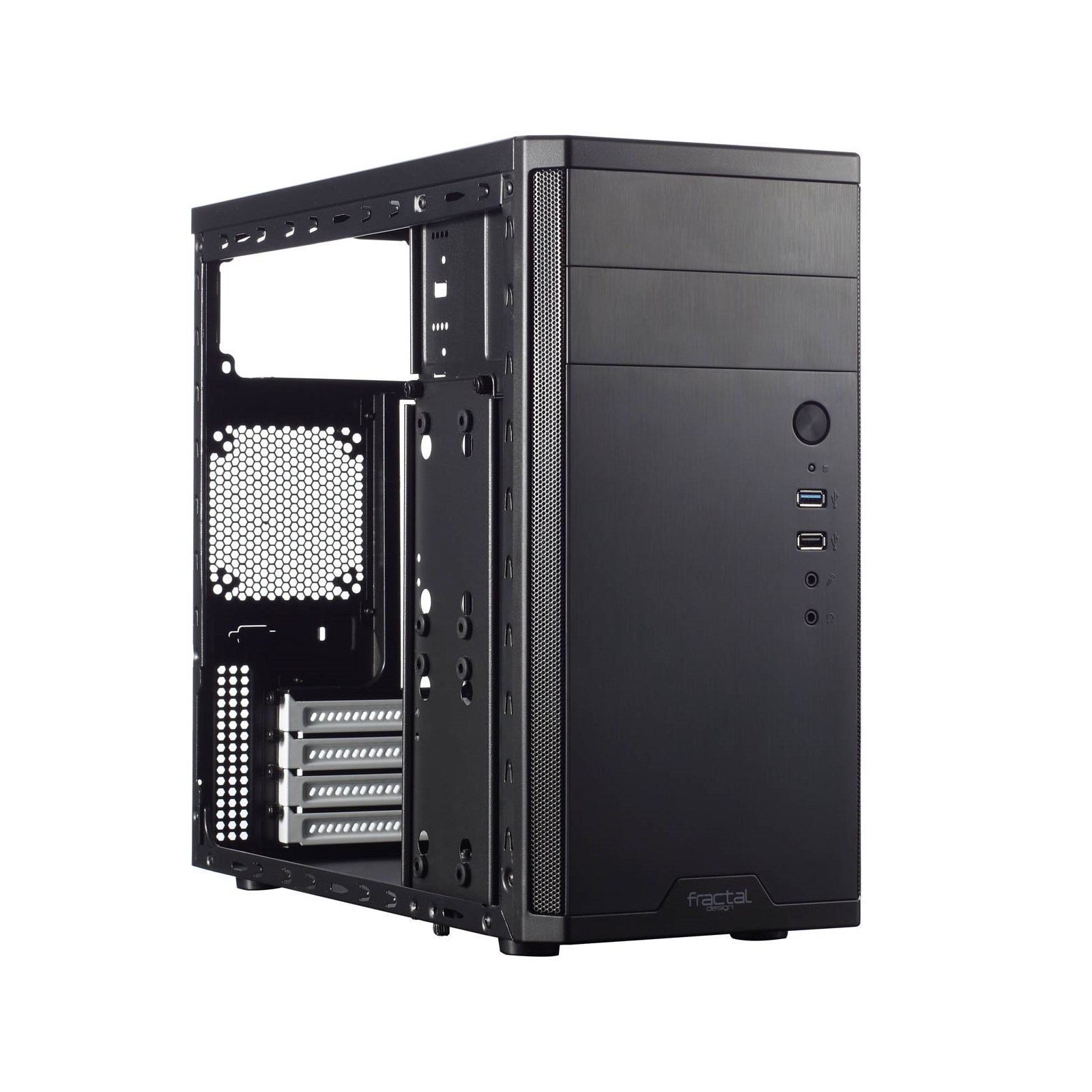

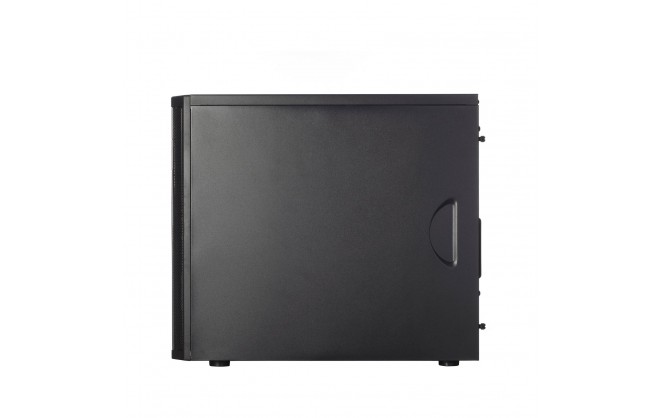

Fractal Design Core 1100 Mid Tower Case Black

Part Number: OEM-ATC-CA-CORE-1100
Manufacturer: Fractal Design
Quickfind Code: 105525

Stock: In Stock

£31.56 ex. vat
£37.87 inc. vat

Product Features:

Condition: New
Form Factor mATX
Main Colour Black
Side Panel Solid

+ Read More Information

Product Description

This case is optimized for airflow with a straight cooling path, with dust filters in the front panel. The innovative vertical hard drive bracket can fit either two 3.5" drives, three 2.5" drives, or one drive of each size. Both 3.5" drive slots come with silicone vibration dampening grommets.

Main Features

An extremely compact micro ATX case, designed for exceptional airflow and cooling
Brushed aluminum-look front panel with a sleek, three-dimensional textured finish and a fully painted interior, with Fractal Design signature white details
Easy access I/O on front panel with audio, USB 3.0 and USB 2.0 ports
Front panel dust filters and closed top and bottom panels help maintain a dust free interior
The innovative vertical HDD bracket can hold two 3.5" drives or three 2.5" drives (or one drive of each size) with vibration-dampened mounting for both 3.5" drive slots

Technical Specification

Fractal Design Core 1100 Mid Tower Case Black

User Controls

Power Button

Storage

External Expansion Bays	2 x 5.25"
Internal Expansion Bays	2 x 2.5"/3.5"

Expansion

Expansion Slots

4 x Full Height

Interfaces/Ports

USB Ports	1 x USB 3.0 1 x USB 2.0
Headphone Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack

Electrical

Cooling System	Front: Supports 1 x 120mm fan Side: Supports 1 x 120mm fan Rear: Supports 1 x 92mm fan
Power Supply	ATX Power Supply supported

Warranty

1 Year

Physical

Form Factor	Mid Tower Case
Case Colour	Black
Motherboard Compatibility	MicroATX Mini-ITX
In The Box	Case Accessory Kit
Width	145 mm
Depth	410 mm
Height	358 mm
Weight	3.8 kg

Key Features

Firewire	No
Main Colour	Black
Case Type	Tower
USB 3.0 Support	Yes
Case Form Factor	Mid Tower
Power Supply Included	No
80Plus Rated	No
PSU Form Factor	ATX
Display Model in Showroom	No
Illuminated	No
e-SATA	No
L.E.D Fan	No LED
Max 3.5" Drives	2
External 5.25" Bay	2
Max 2.5" Drives	3
Micro-ATX	Yes
ITX	Yes
Cooler Height	148 mm
Built-in Card Reader	No
USB Type-C Support	No
Front HDMI	No
Side Panel Type	Solid
GPU Length	350 mm
PSU Depth	185 mm
Front Audio Type	Separate
LED Controller Included	No
LED Strip(s) Included	No
Maximum Motherboard Size Supported	Micro-ATX
Total 2.5" + 3.5" drive bays	3
USB2.0 ports	1
USB3.0 ports	1
Low profile expansion	No

Item Details

Manufacturer	Fractal Design
Manufacturer Code	OEM-ATC-CA-CORE-1100
Alternative Part Numbers	CAM-FRCOR1100-BB, OEM-ATC-CA-CORE-1100-BK
EAN	7350041089698
UPC	817301019699
Condition	New
