Featuring a wide case structure with a sophisticated dual-chamber layout, this case ensures excellent compatibility and optimal airflow. The PSU and hard disks benefit from separate air channels, while support for rear connector motherboards keeps the internal layout impeccably neat and organized.
Engineered for both superior aesthetics and thermal efficiency, the CG530 4F WH comes pre-installed with three PWM ARGB reverse flow fans on the side and one PWM ARGB standard fan on the rear. This advanced fan configuration not only optimizes heat dissipation but also enhances system performance, while the four PWM ARGB fans deliver a captivating gaming ambiance, transforming your build into the ultimate "SHOW CASE".
The CG530 4F WH accommodates component ranging from a 210mm PSU, to a 410mm GPU, ensuring installation of the most powerful components without compromise. Supports ATX motherboards and offers 7 expansion slots, providing ample room for multiple GPUs, high-end sound cards, and other peripherals. Additionally, the CG530 4F WH features versatile storage options with 2 x 3.5"" drive bays and 2+1 x 2.5"" drive bays, allowing a mixture of storage solutions for optimal performance and capacity.
Never fear the heat with CG530 4F WH's exceptional cooling support. Designed to house a variety of cooling components, it offers wide compatibility for radiators and fans to keep your system running cool under any load.
Keep your build pristine and your components dust-free. The top and bottom panels are equipped with magnetic air filters, making cleaning a breeze and providing robust dust prevention. Additionally, the backplane offers an impressive 45mm of wiring space, ensuring that cable management is straightforward and hassle-free. Enjoy a clean, organized interior that enhances airflow and simplifies maintenance.
Additional I/O ports, featuring dual USB 3.0, USB TYPE C, and 2-in-1 audio port, offers seamless connectivity for multiple devices, enhancing user versatility and system integration.

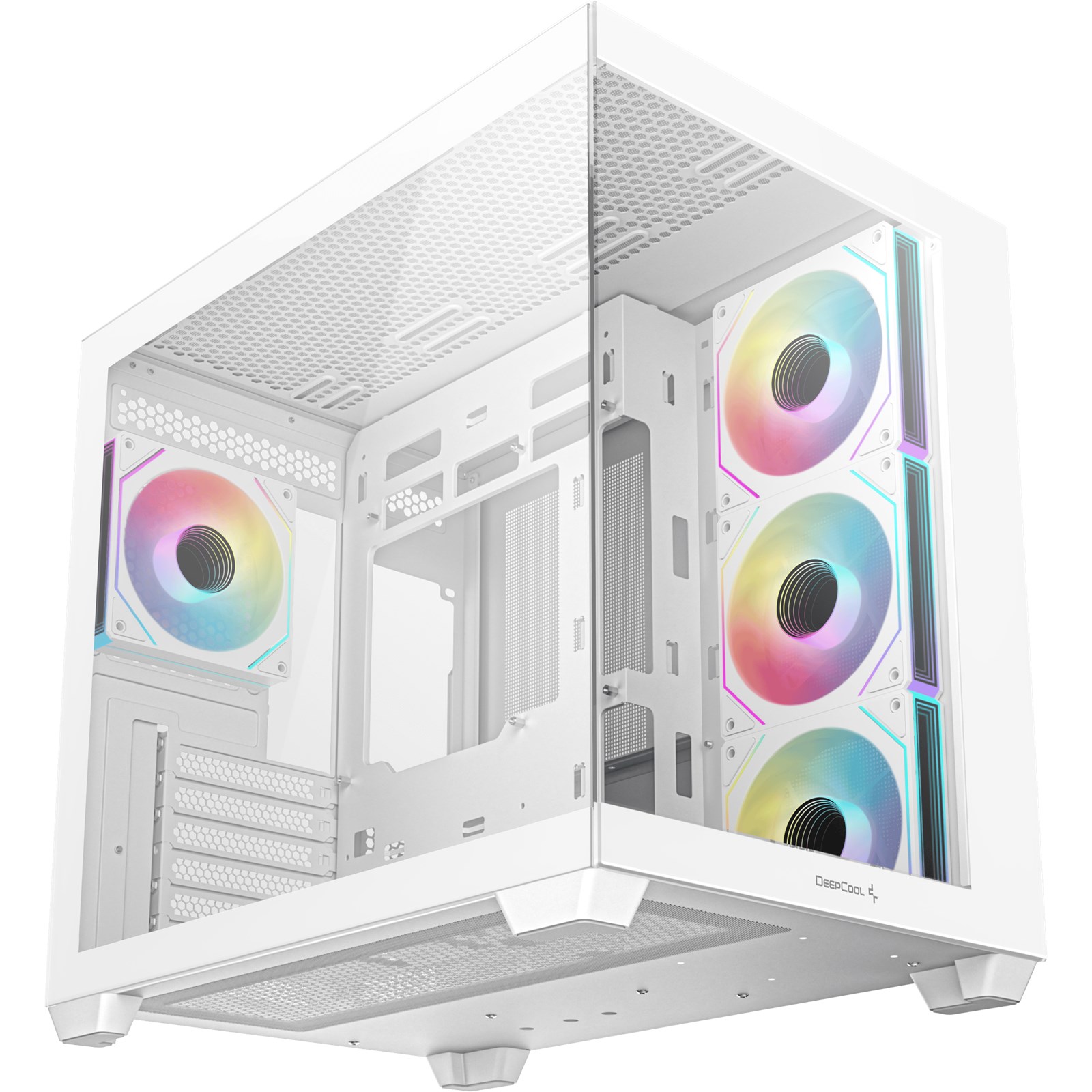

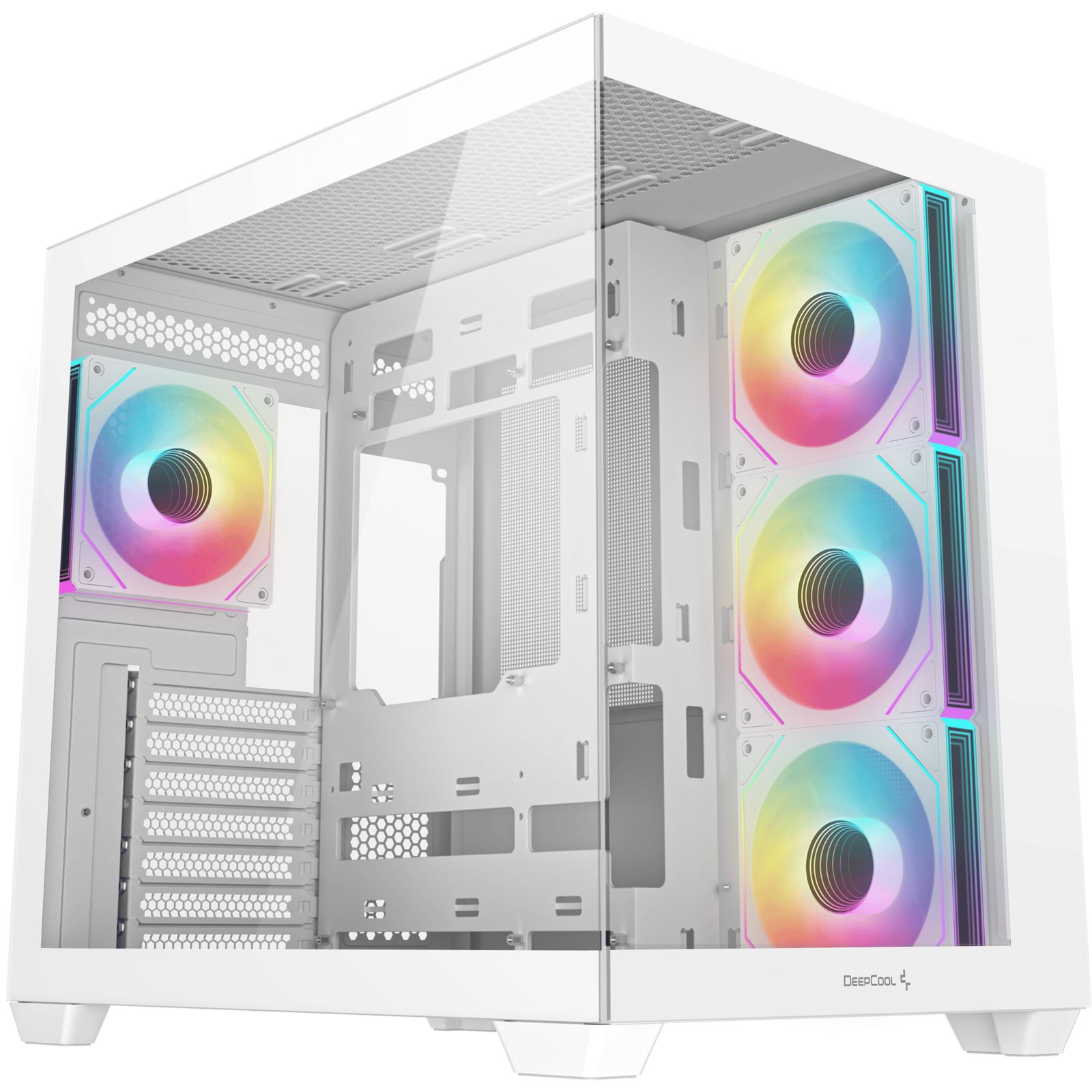

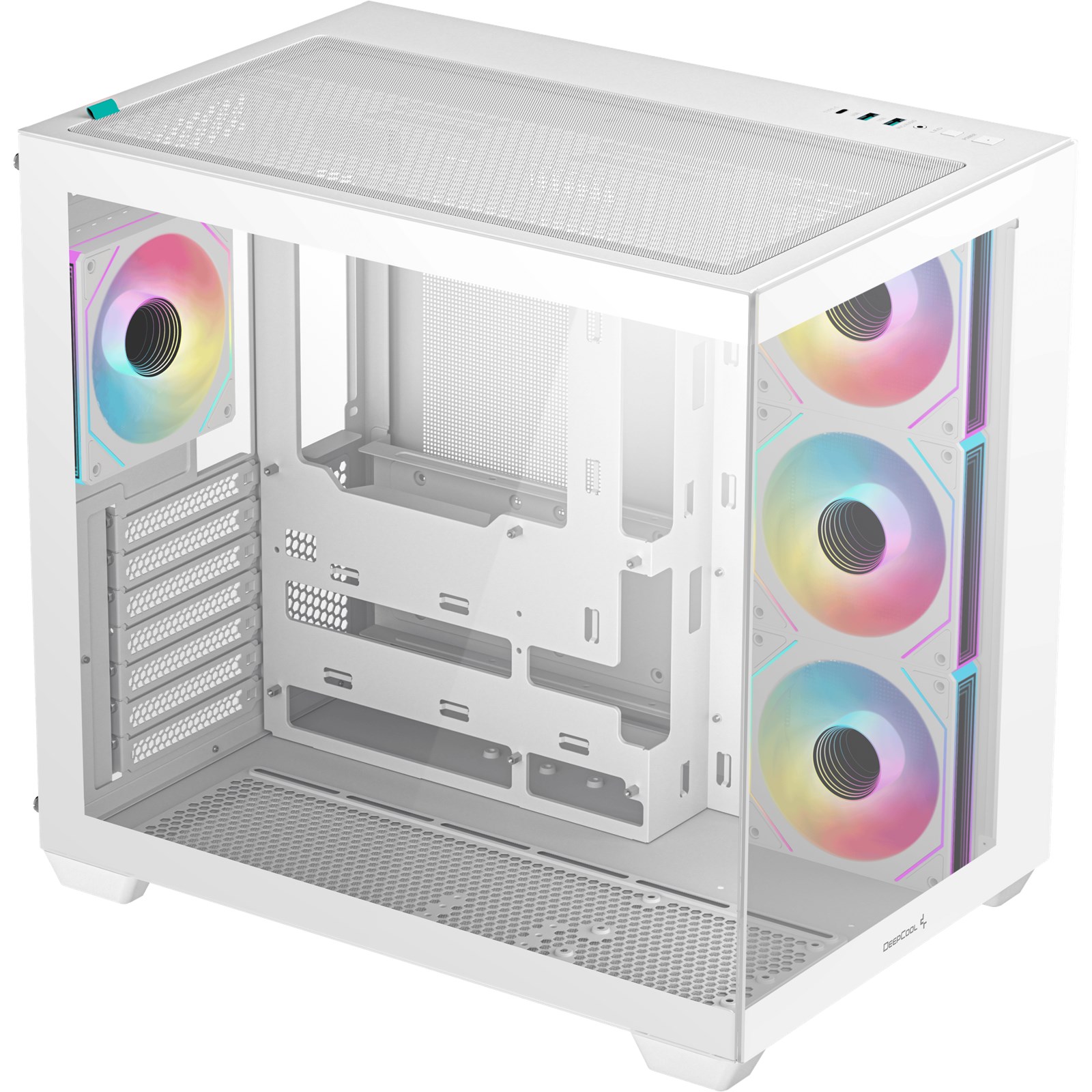

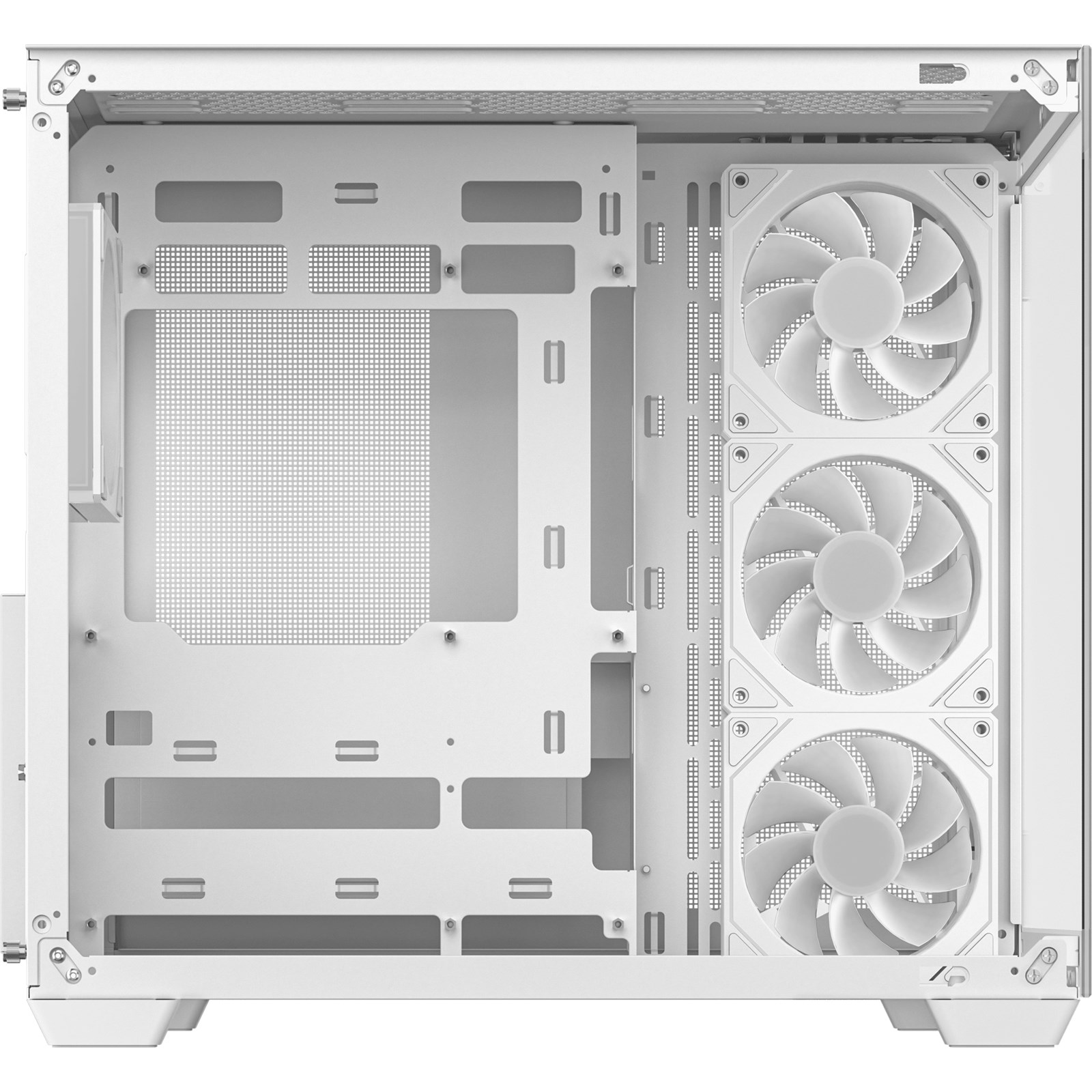

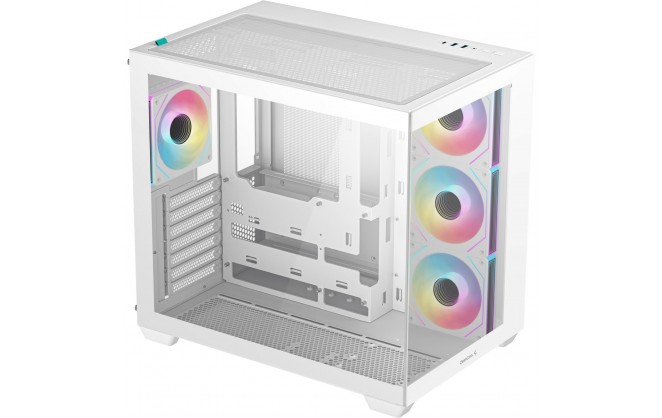

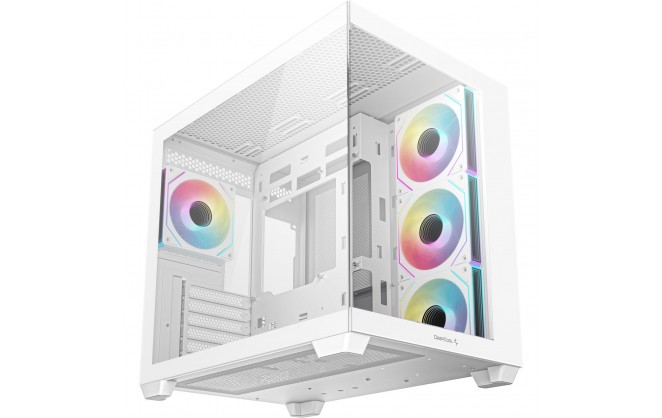

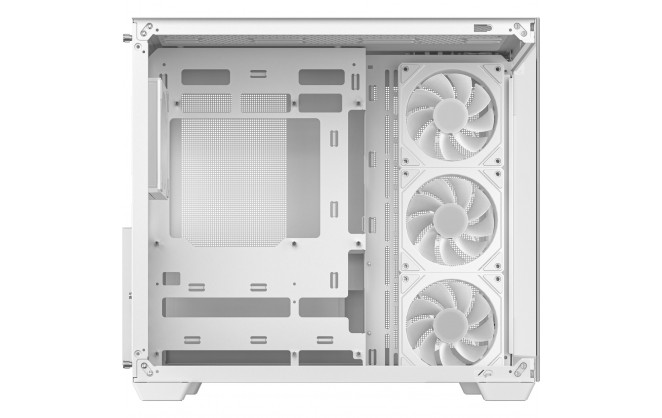

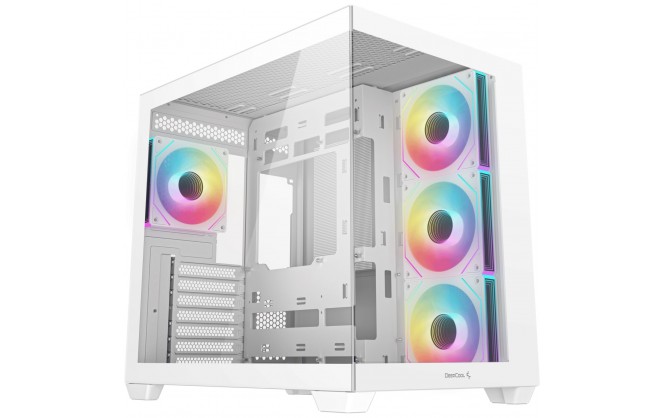

DeepCool CB530 4F WH Mid Tower Gaming Case White
User Controls
| User Controls | Power Reset |
Storage
| Internal Expansion Bays | 2 x 2.5" 1 x 2.5"/3.5" 1 x 3.5" |
Expansion
| Expansion Slots | 7 x Full Height |
Interfaces/Ports
| USB Ports | 1 x USB-C 3.1 2 x USB 3.0 |
| Headphone Ports | 1 x 3.5mm COMBO Jack |
| Microphone In Port | Shared with Headphone |
Electrical
| Cooling System | Top: Supports 2 x 140mm or 3 x 120mm fans Side: Supports 2 x 140mm or 3 x 120mm fans (3 x 120mm ARGB fans included) Rear: Supports 1 x 120mm fan (ARGB fan included) Bottom: Supports 2 x 120mm fans |
| Power Supply | ATX Power Supply supported |
Physical
| Form Factor | Dual-Chamber Mid-Tower |
| Case Colour | White |
| Material | ABS SPCC Tempered Glass |
| Motherboard Compatibility | ATX mATX Mini-ITX |
| Width | 285 mm |
| Depth | 440 mm |
| Height | 399 mm |
| Weight | 7.1 kg |
Warranty
| Warranty | 2 Years |
Key Features
| Max Motherboard Width | 244 mm |
| Max Motherboard Height | 305 mm |
| Supports AIO Cooler | Yes |
| Main Colour | White |
| Case Type | Tower |
| Case Form Factor | Mid Tower |
| Power Supply Included | No |
| Optimised for | Gaming |
| 80Plus Rated | No |
| PSU Form Factor | ATX |
| Illuminated | No |
| L.E.D Fan | ARGB |
| Max 3.5" Drives | 2 |
| Max 2.5" Drives | 3 |
| ATX | Yes |
| Micro-ATX | Yes |
| ITX | Yes |
| E-ATX | No |
| Cooler Height | 160 mm |
| Built-in Card Reader | No |
| USB Type-C Support | Yes |
| Side Panel Type | Tempered Glass |
| GPU Length | 410 mm |
| PSU Depth | 210 mm |
| Number of Fans | 4 fan(s) |
| RGB LED Controller Included | No |
| LED Strip(s) Included | No |
| Fan Connector | 4-pin PWM |
| Maximum Motherboard Size Supported | ATX |
| RGB Software Type | None |
| Total 2.5" + 3.5" drive bays | 4 |
| Power Requirement (auto) | 12 W |
| USB3.0 ports | 2 |
| USB-C ports | 1 |
| Low profile expansion | No |
| Max Supported Radiator Length | 360 mm |
| Create Your Own Gaming PC (CCL) | Yes |
| Back Connect Support | Yes |
Item Details
| Manufacturer | DeepCool |
| Manufacturer Code | R-CG530-WHADA4-G-1 |
| EAN | 6933412765165 |
