CORSAIR 6500X Mid Tower E-ATX Gaming PC Case - Black and Walnut

  • Part Number: CC-9011282-WW
  • Manufacturer: Corsair
  • Quickfind Code: 105807

  • Stock: Out Stock

Contact for availability


Product Features:
  • Condition: New
  • Side Panel Tempered Glass
  • Form Factor E-ATX
  • Main Colour Black / Walnut
+ Read More Information

Share:

Product Description

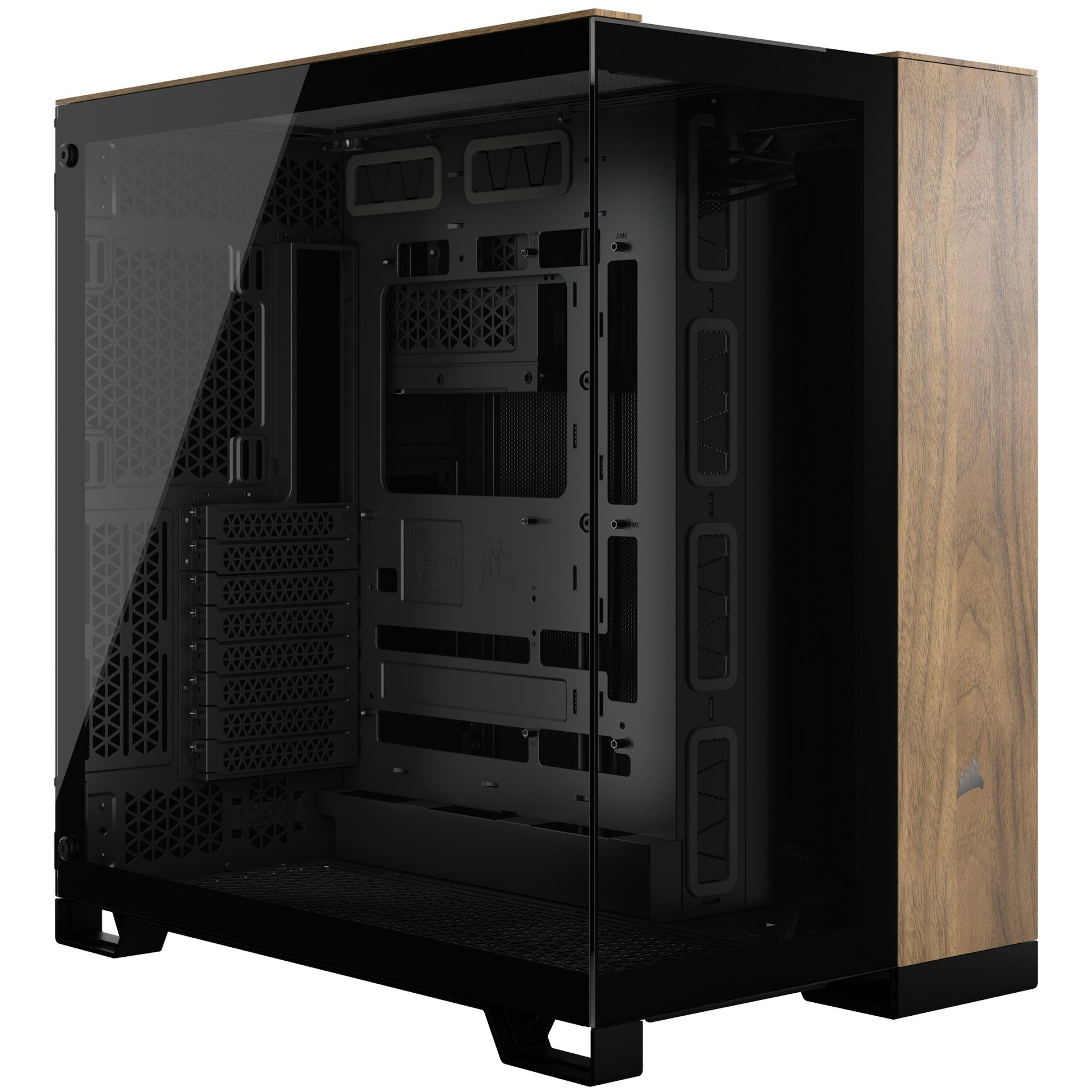

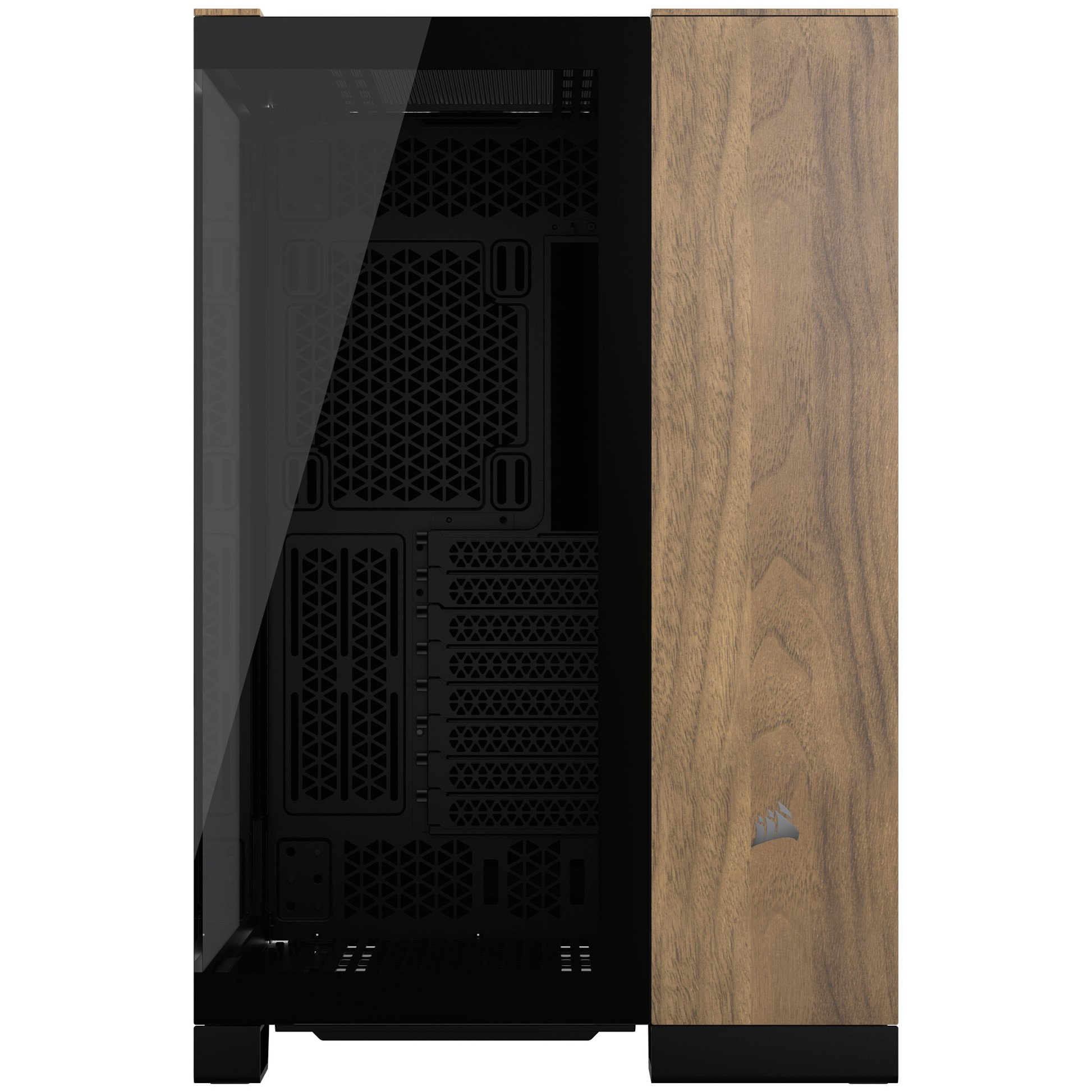

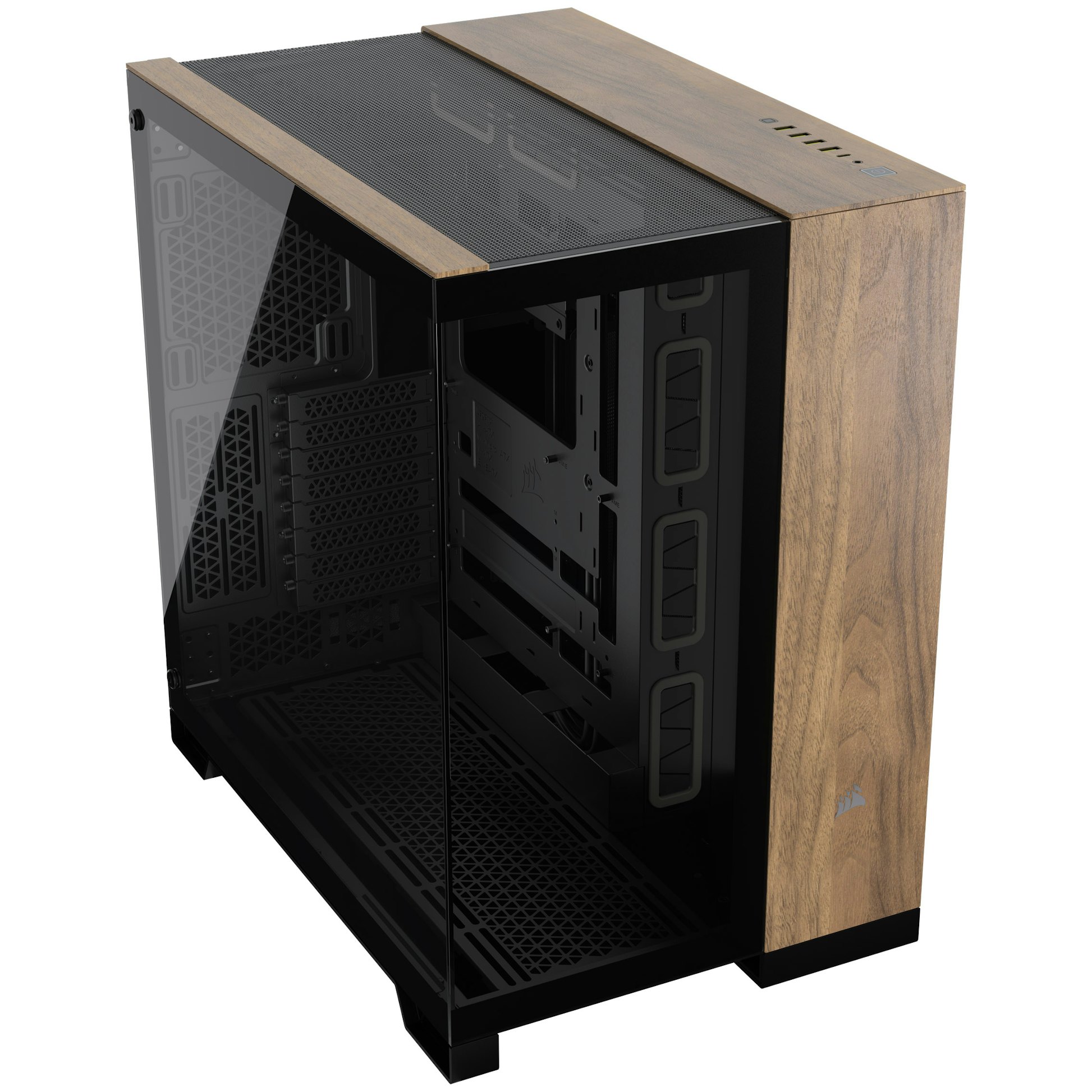

The CORSAIR 6500X Mid-Tower Dual Chamber PC Case provides a truly unobstructed view of your system behind tempered glass side and front panels, with a dual chamber design for an organized build. Ensure great performance for your system with room for up to 10x 120mm or 7x 140mm fans, and versatile radiator mounting options in the roof, bottom, and side. Compatibility with reverse connection motherboards gives you a cable-free view of your system. Route all your cables and mount up to four storage drives in the second chamber for a clean, picture-perfect build, while a modern front panel I/O including USB 3.2 Gen-2 Type-C offers convenient device access. With tons of features for easy buildability and a wide range of optional accessories available, the 6500X is highly customizable for the most impressive PC builds for years to come.

CORSAIR 6500X at a Glance

  • Unobstructed view with tempered glass side and front panel Dual chamber design for strong cooling and an organized look
  • Dual chamber design for strong cooling and an organized look
  • Compatible with reverse connection motherboards such as ASUS BTF and MSI Project Zero
  • Fits 10x 120mm or 7x 140mm fans
  • Versatile mounting positions for roof, bottom, and side radiators
  • Customizable with a range of accessories
Technical Specification

CORSAIR 6500X Mid Tower E-ATX Gaming PC Case - Black and Walnut

CORSAIR 6500X Specification

FeatureSpecification
Case Height496 mm
Case Length481 mm
Case Width328 mm
Motherboard SupportMini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
ColorBlack
Weight14.9 kg
Radiator Compatibility120mm, 140mm, 240mm, 280mm, 360mm
Maximum GPU Length400 mm
Maximum CPU Cooler Height190 mm
Maximum PSU Length225 mm
Compatible Liquid CoolersH60, H100i, H115i, H150i (All Series)
Case SizeNA
Case Power SupplyATX
Case Expansion Slots8 horizontal + 3 vertical
Case Front IO(1x) USB 3.2 Gen 2 Type-C, (4x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out
Case WindowTempered Glass
Case Warranty2 Year
Internal 3.5" Drive Bays2
Internal 2.5" Drive Bays2
Expansion Slots
Expansion slots / PCI slots12
Lighting
Lighting / RGBNo
Back Connect
Back ConnectYes
Case Features
I/O positionFront / Lid
Side panelwith window
Radiator Support
Max. Radiator Compatibility360
Case
Case TypeMid Tower
Colour
Primary ColourBlack
Secondary ColourBrown
Fan Main Colour (Frame)Black
Fan Main Colour (Rotor)Black
Additional Contents
Included fansNone
Materials
MaterialsSteel, Tempered Glass, Wood
Internal Dimensions
Max. CPU Cooler Height190 mm
Max. GPU Length400 mm
Max. PSU Length / Depth225 mm
Motherboard Support
Compatible Motherboard FormatsE-ATX, Mini-ATX, ATX, Micro-ATX
Max. Motherboard FormatE-ATX
Display
Display IncludedNo
Dimensions
Length / Depth481 mm
Width328 mm
Height496 mm
Drive Bays
2.5 / 3.5 inch internal drive bay (combined)2
2.5 inch internal drive bay2
Power Supply
PSU FormatATX
Power Supply Positionbottom
External Ports
USB 3.1 (external) Type C1
USB 3.0 (external) Type A4
Audio outputs & inputs1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Fan Support
120 mm fans10
140 mm fans7
