Cooler Master HAF 500 Mid Tower Case - Black USB 3.0

Part Number: H500-KGNN-S00
Manufacturer: Cooler Master
Quickfind Code: 105595

Stock: In Stock

£134.88 ex. vat
£161.86 inc. vat

Product Features:

Condition: New
Form Factor E-ATX
RGB / LED Colour RGB
Main Colour Black
Side Panel Tempered Glass

+ Read More Information

Product Description

Cooler Master’s classic HAF series is making a return with HAF 500. Built for high airflow and peak performance, the HAF 500 boasts iconic 200mm large intake ARGB fans, ensuring unparalleled intake and cooling efficiency. The chassis features a dedicated GPU fan, adjustable to various GPU lengths. Ample clearance for dual 360mm radiators on the top and front panel accommodates the most advanced water cooling setups.

Tool-less side panels and a removable top panel facilitates simplified, hassle-free component installation without the need to struggle with small spaces.

Main Features

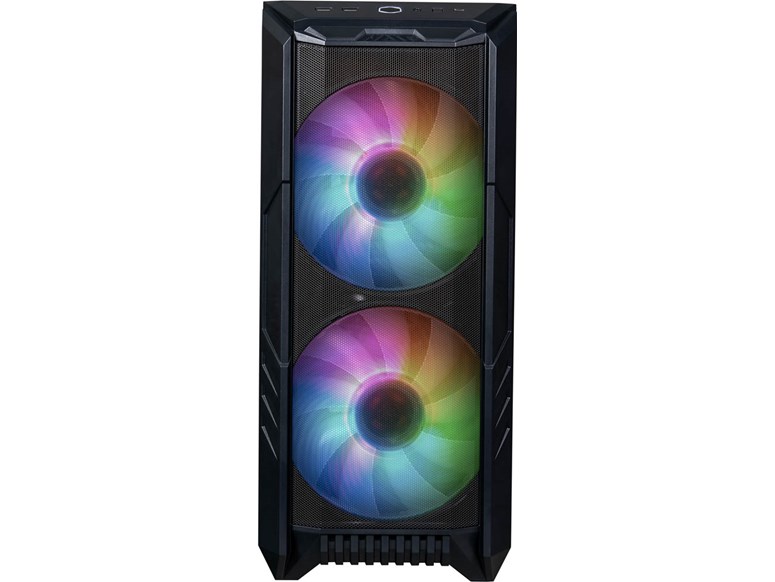

MESH FRONT PANEL - Large filtered intakes promotes high airflow, keeping internal components running at optimal temperature.
DUAL 200MM ARGB FANS - Iconic 200mm ARGB fans embedded in the core of the HAF Series in design and function move high volumes of air quietly and effectively due to their large size. Utilizing the included hub, ARGB lighting can be customized to create a comprehensive theme to match your build.
ROTATABLE GPU FAN - A 120mm fan positioned on top of the HDD cage, provides dedicated GPU cooling to ensure maximum performance. The fan bracket can be rotated to accommodate various GPU size and configurations.
SCREWLESS & TOOL-FREE TG SIDE PANEL DESIGN - The tempered glass side panel is secured with pins for easy removal, facilitating quick access to the internals without the use of tools. An optional screw can be installed to further secure the tempered glass side panel.
USB 3.2 GEN 2 TYPE C SUPPORT - USB 3.2 Gen 2 Type C ports built into the I/O panel allows multi-purpose, streamlined data transmission.

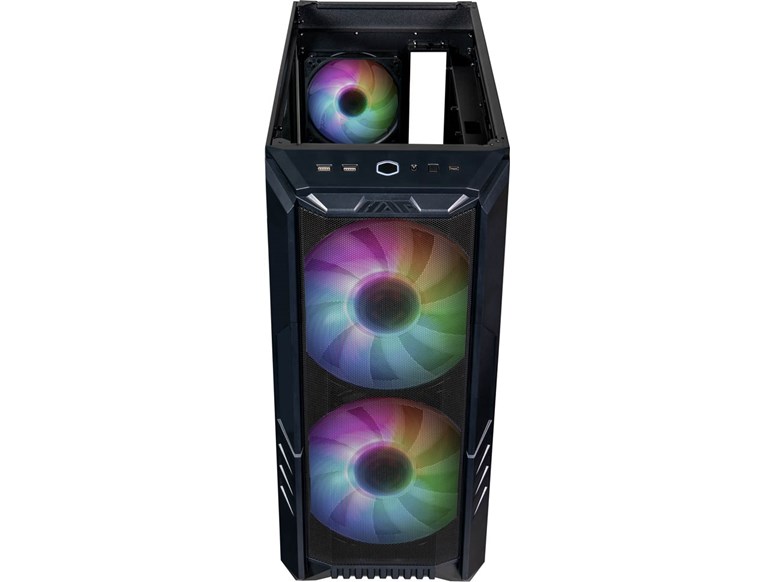

REMOVABLE TOP PANEL - The top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.
VERSATILE COOLING OPTIONS - Support for up to eight 120mm fans and dual 360mm radiators on the top and front panel ensure high compatibility for liquid-cooled systems.

Technical Specification

Cooler Master HAF 500 Mid Tower Case - Black USB 3.0

Storage

Internal Expansion Bays

2 x 2.5"
2 x 2.5"/3.5"

Expansion

Expansion Slots

7 x Full Height

Interfaces/Ports

USB Ports	1 x USB-C 3.1 2 x USB 3.0
Headphone Ports	1 x 3.5mm Combo Jack, shared with Microphone
Microphone In Port	1 x 3.5mm Combo Jack, shared with Headphone

Electrical

Cooling System	Front: Supports 2 x 200mm, 2 x 140mm or 3 x 120mm fans (2 x 200mm ARGB LED fans included) Top: Supports 2 x 200mm, 2 x 140mm or 3 x 120mm fans Rear: Supports 1 x 120mm fan (ARGB LED fan included) HDD Cage: Supports 1 x 120mm fan (included)
Power Supply	ATX Power Supply supported

Physical

Form Factor
Case Colour	Black
Material	Steel Mesh Plastic Tempered Glass
Motherboard Compatibility	E-ATX (*up to 12" x 14.1", may impact cable management and case features, remove cable cover and GPU fan bracket features) SSI CEB ATX MicroATX Mini-ITX
Width	224 mm
Depth	516 mm
Height	510 mm
Weight	9.5 kg

Warranty

2 Years

Key Features

Firewire
Power	W
Laptop Size Range	ins
Main Colour	Black
External Expansion Bays
Case Type	Tower
USB 3.0 Support	Yes
Case Form Factor	Mid Tower
Power Supply Included	No
Optimised for
Modular Cables
80Plus Rated	No
Bag Size
PSU Form Factor	ATX
Display Model in Showroom
Illuminated	No
e-SATA
L.E.D Fan	ARGB
Laptop Size
Max 3.5" Drives	2
Max 2.5" Drives	4
ATX	Yes
Micro-ATX	Yes
ITX	Yes
E-ATX	Yes
XL-ATX
Mini PC
Cooler Height	167 mm
Built-in Card Reader	No
USB Type-C Support	Yes
Front HDMI	No
Side Panel Type	Tempered Glass
GPU Length	410 mm
PSU Depth	180 mm
Memory Speed	MHz
Card Reader Type
Front Audio Type	Combined
Number of Fans	3 fan(s)
LED Controller Included	Yes
LED Strip(s) Included
Maximum Motherboard Size Supported	E-ATX
RGB Software Type
Total 2.5" + 3.5" drive bays	4
Power Requirement (auto)	9 W
USB3.0 ports	2
USB-C ports	1
Low profile expansion	No
