Lenovo T23d-10 23" WUXGA IPS Monitor

Part Number: 61C3MAT6UK
Manufacturer: Lenovo
Quickfind Code: 530037

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
Size 23"
Refresh Rate 60HZ
Panel Type IPS
Resolution 1920 x 1200 (WUXGA)
Input Connections DP HDMI VGA
Main Colour Black

+ Read More Information

Product Description

The Lenovo ThinkVision T23d-10 is a superior monitor that is meant to take your efficiency to new heights. With the vivid 22.5-inch display and versatile connectivity options, the ThinkVision T23d-10 lets you perform to your full potential. The 16:10 aspect ratio of the T23d-10 monitor makes for an extra wide display and a superior viewing experience. The borderless panel of the bright WUXGA monitor and the super narrow bezel make it ideal for multi-screen connection, adding to your productivity. With up to 4 ms response time, the anti-glare display minimises motion blur and eliminates streaking and ghosting for a smooth interaction. The ThinkVision T23d-10 has a range of ports such as VGA, DP and HDMI to boost productivity.

Main Features

Lenovo ThinkVision T23d-10 LED Backlit LCD Monitor
22.5 inch TFT-LCD, In-Plane Switching (IPS), White LED backlight
Native resolution of 1920 x 1200 pixels (WUXGA)
Contrast ratio: 1000:1
Brightness: 250 cd/m2
Response time: 6ms

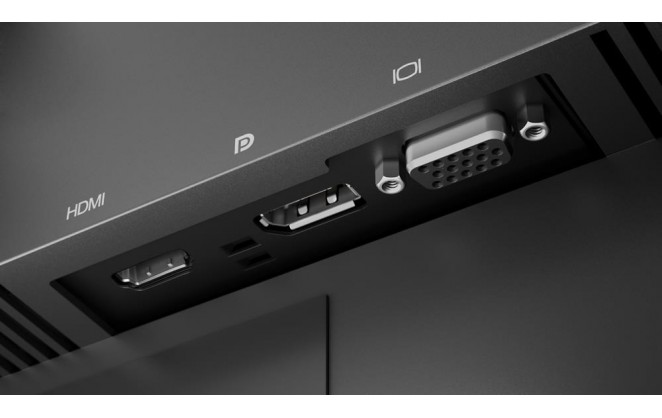

VGA, HDMI, DisplayPort connections

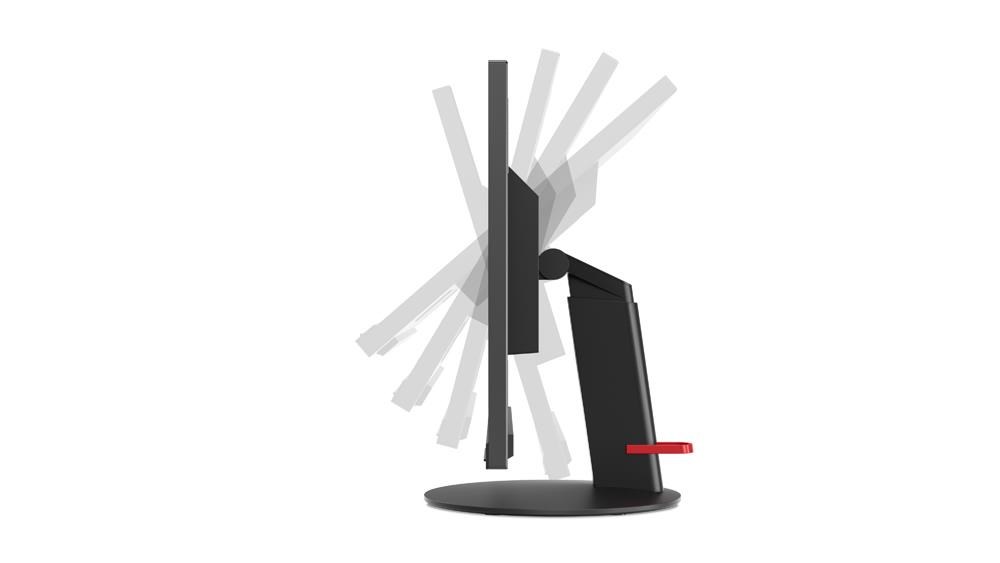

Tilt, swivel, pivot, and height adjustable stand
Supports ThinkCentre Tiny Clamp Bracket
Includes dual input connection for attachment to two systems concurrently (analogue and digital)

Technical Specification

Lenovo T23d-10 23" WUXGA IPS Monitor

Display

Screen Aspect Ratio	16:10
Screen Size	23 in
Screen Width	49.62 cm
Screen Height	31.39 cm
Screen Technology	In-Plane Switching (IPS)
Pixel Pitch	0.250 x 0.250 mm
Brightness	Lumens
View Angle (Horizontal - Max)	178 °
View Angle (Vertical - Max)	178 °
Contrast Ratio	1,000:1
Resolution (Native)	1920 x 1200 Pixels
Resolution Type (Native)	WUXGA
Backlight	W-LED
Colour Gamut	72 %
Aspect Ratio	16:10

Mount

Wall Mountable	Yes
Wall Mount	Supported - 100mm x 100mm
Tilt (Forward/Backward)	Yes
Tilt Range	-5 to 30 °
Swivel (Left/Right)	Yes
Swivel Range	±45 °
Height Adjustable	Yes
Maximum Height	11.0 cm
Pivot (Rotation)	Yes
Pivot Range	-90 to +90 °
Side Bezel Width	2.3 mm

Input

User Controls

On screen display with digital user controls, Direct access (buttons on front) for power, menu, input source select and brightness

Warranty

3 Years.

Interfaces/Ports

VGA In	1 x 15-pin D-Sub
DisplayPort Out	1 x DisplayPort

System

Language Selection	8 (English, French, German, Spanish, Italian, Japanese, Simplified Chinese and Russian)
Plug and Play	VESA DDC2B/CI

System Requirements

Windows 7/10

Electrical

Electrical Power Consumption	18 W
Electrical Power Consumption Saving	0.3 W
Voltage	100 to 240 VAC
Electrical Frequency	50 to 60 Hz
Power Management Features	Energy Star
Power Supply	Internal

Environmental

Operating Temperature	0 to 45 °C
Operating Humidity	10 to 80 %

Physical

Form Factor	LCD Monitor
Case Colour	Black
Pack Quantity	1
Security Locking Mechanics	Security Lock Slot
In The Box	Monitor with stand, Safety and Warranty Information, 1.8 meter analog signal cable, 1.8 meter DP signal cable, 1.8 meter black power cord
Width	50.12 cm
Depth	25.19 cm
Height	49.19 cm
Weight	4.85 kg

Identifiers

ISPC Code

40463

Key Features

Thunderbolt Connection	No
HDR Support	No
75Hz Refresh Rate	No
Built-in USB Hub	No
Refresh Rate	60 Hz
Response time	6 ms
Screen Size Range	22 - 23 in
VESA Mountable	Yes
Built-in Speakers	No
Hard Glass Coating	No
VGA Connection	Yes
DVI Connection	No
HDMI Connection	Yes
Touchscreen	No
BNC Connection	No
TV Tuner	No
Panel Technology	IPS
3D Ready	No
Power Source	Mains Powered
LED Backlight	Yes
Disk Form Factor	3.5
Gaming	No
Projection Aspect Ratio	16:10
Display Model in Showroom	No
DisplayPort Connection	Yes
120Hz Refresh Rate	No
Screen Type	Full HD (1080p)
FreeSync	No
144Hz Refresh Rate	No
Curved Display	No
165Hz Refresh Rate	No
200Hz Refresh Rate	No
180Hz Refresh Rate	No
240Hz Refresh Rate	No
