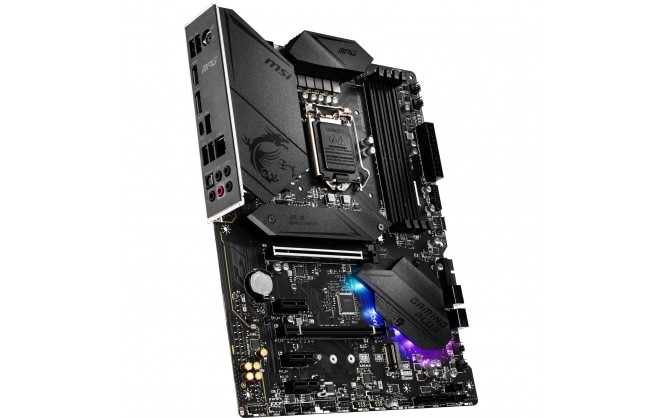

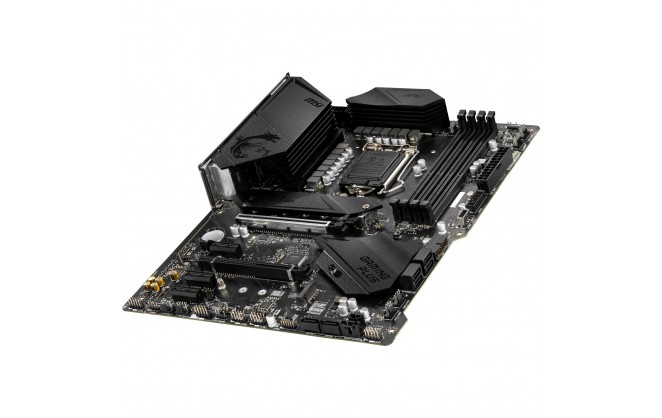

MSI MPG Z490 GAMING PLUS Intel Socket 1200 Retail Motherboard

£149.99 ex. vat
£179.99 inc. vat

Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
Supports DDR4 Memory, up to 4800(OC) MHz
Ready 4 the Future: Support Lightning Gen 4 Solution for the future
Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
2.5G LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen 2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
Audio Boost: Reward your ears with studio grade sound quality

CPU

CPU Socket	Socket 1200
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	10th Gen Intel Core and Pentium Gold / Celeron processors
64-bit Support	Yes
Socket	LGA1200

Rear Panel I/O Ports

USB Ports	1 x USB 3.1 Type-C 1 x USB 3.1 Type-A 2 x USB 3.0 2 x USB 2.0
DisplayPorts	1 x DisplayPort
HDMI Port	1 x HDMI
Keyboard/Mouse Combo Port	1 x PS/2
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	3 x 3.5mm Jacks
Microphone In Port	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out

Internal I/O Connectors

SATA Connectors	6 x SATA III
USB Connectors	1 x USB 3.0 Type-C header 2 x USB 3.0 headers (supports 4 ports) 2 x USB 2.0 headers (supports 2 ports)
Cooling Fan Support	1 x CPU fan header 1 x Water Pump header 6 x System fan headers
Serial Connectors	1 x COM header
Chassis Intrusion Connector	1 x Chassis Intrusion header
TPM Header	1 x TPM header
Power Connector Port	1 x 20+4-pin ATX 1 x 4+4-pin EPS 1 x 4-pin EPS
Other Connectors	1 x M.2, Socket 3, M Key (Type 2242/2260/2280/22110) 1 x M.2, Socket 3, M Key (Type 2242/2260/2280) 1 x RGB LED header 2 x RAINBOW LED headers 1 x TBT header

Memory

Motherboard

Expansion

Number of PCI Express Slots

1 x PCI Express 3.0 x16
1 x PCI Express 3.0 x16 (@ x4)
3 x PCI Express 3.0 x1

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek ALC1200-VD1 Codec

Warranty

3 Years

Network

System Requirements

Operating Systems Supported

Microsoft Windows 10 64-bit

System

Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes
SLi/Crossfire Features	Supports 2-Way AMD CrossFire Technology

Physical

Form Factor	ATX Motherboard
In The Box	MPG Z490 GAMING PLUS Motherboard User Manual Quick Installation Guide MSI Product Catalog MSI Case Badge Product Registration Card Promotion Card 2 x SATA Cables Case Screw Guide Driver DVD
Width	305 mm
Length	244 mm

Key Features

Memory Speed	4800 MHz
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Firewire	No
Wireless Network	No
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	6 port(s)
Number of USB Ports	6 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	ATi CrossFire
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard Power Connectors	4 + 8-Pin
Motherboard Chipset	Intel Z490
Thunderbolt	No
Motherboard Model	MSI MPG Z490 GAMING PLUS
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	MSI Mystic Sync
