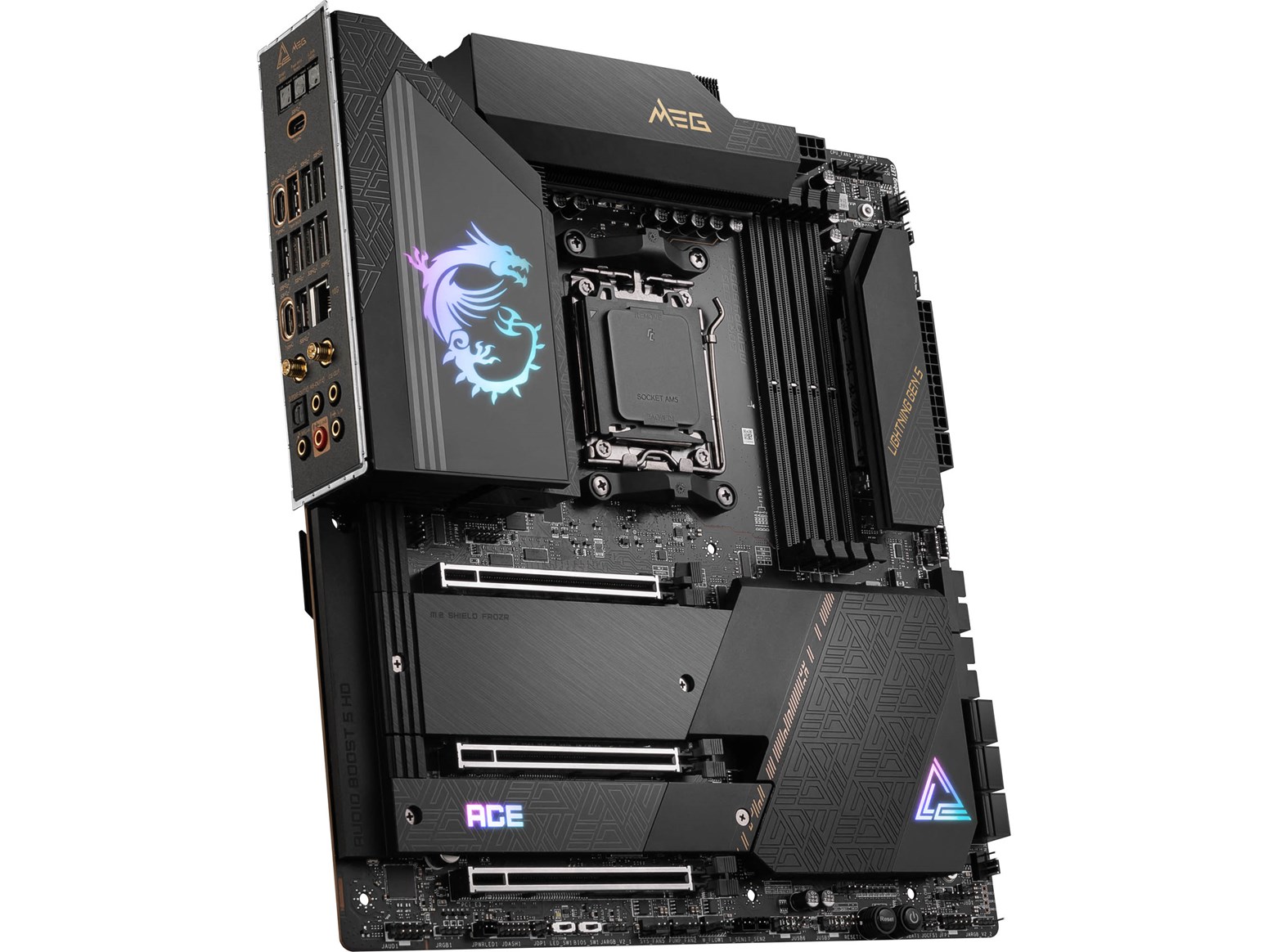

MSI MEG X670E ACE eATX Motherboard AMD Socket AM5

Contact for availability

Supports AMD Ryzen 7000 Series Desktop Processors
Supports DDR5 Memory
Extreme Power Design: 22+2+1 phases power design with 90A Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
Maximum 6 x M.2 Connectors: Onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card offer totally sextuple M.2 connectors for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Outstanding Cooling Solution: Stacked Fin Array, Direct Touch VRM Heat-pipe, MOSFET Baseplate, 7W/mK thermal pads, double-sided M.2 Shield Frozr and Frozr AI software ensure the extreme performance with low temperature.
10G Super LAN with latest Wi-Fi 6E solution: Onboard 10Gbps LAN with the latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 3.2 Gen 2x2 20G with 60W USB Power Delivery.
DIY Friendly Design: Patent Magnetic M.2 Shield Frozr, Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience

CPU

CPU Socket	Socket AM5
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	AMD Ryzen 7000 Series Desktop Processors
64-bit Support	Yes
Socket	AM5

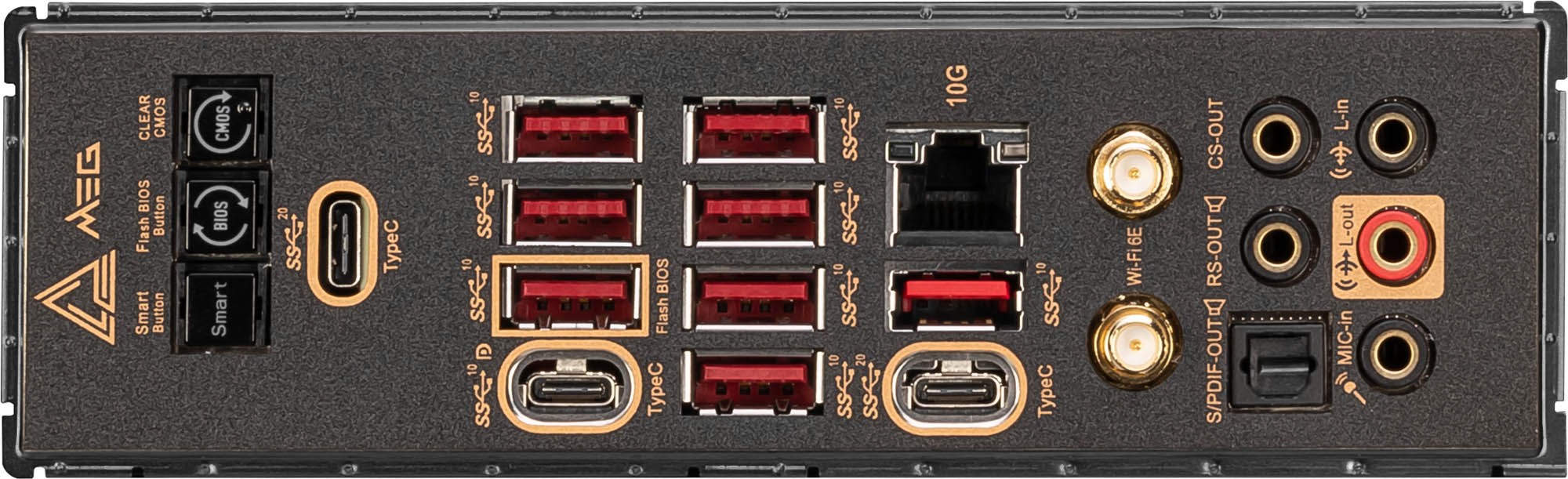

Rear Panel I/O Ports

Internal I/O Connectors

SATA Connectors	6 x SATA III
USB Connectors	2 x USB-C 3.2 headers (supports 2 ports) 1 x USB-C 3.1 header (supports 1 port) 2 x USB 3.0 headers (supports 4 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 2 x Pump fan headers 5 x System fan headers
Chassis Intrusion Connector	1 x Chassis Intrusion header
TPM Header	1 x TPM header
Power Connector Port	1 x 24-pin ATX 2 x 8-pin EPS 1 x Front Type-C Quick Charge connector
Other Connectors	1 x M.2 slot, Type 2260/2280 (PCIe Gen5) 2 x M.2 slots, Type 2260/2280 (PCIe Gen4) 1 x M.2 slot, Type 2280/22110 (PCIe Gen4) 3 x 3-pin ARGB LED headers 1 x 4-pin RGB LED header 1 x Tuning Controller header 2 x Thermal Sensor headers

Memory

Motherboard

Expansion

Number of PCI Express Slots

3 x PCI Express 5.0 x16 slots (@ x16/x0/x4 or x8/x8/x4)

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek ALC4082 + ESS ES9280AQ

Warranty

3 Years

Network

System Requirements

Operating Systems Supported

Microsoft Windows 11 64-bit

System

Jumpers	1 x Clear CMOS 1 x Slow Mode Booting
Software Included (may be trial or restricted)	Yes
Drivers	Yes
SLi/Crossfire Features	Supports AMD MULTI-GPU

Physical

Form Factor	eATX Motherboard
In The Box	Motherboard M.2 XPANDER-Z GEN5 DUAL Wi-Fi Antenna USB Drive M.2 Plate Screw / EZ M.2 Clips 4 x SATA Cables 2 x Thermistor Cables 1 to 2 RGB LED Extension Y Cable Rainbow RGB LED Extension Cable EZ Front Panel Cable Cable Stickers Quick Installation Guide European Union Regulatory Notice
Width	304.8 mm
Length	277 mm

Key Features

Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless Network	Yes
Chipset Manufacturer	AMD
Number of PCI Slots	slot(s)
Number of PCI-X Slots	slot(s)
Main Colour
Socket(s)
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	6 port(s)
Number of USB Ports	11 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	ATi CrossFire
VGA Connection	No
DVI Connection	No
HDMI Connection	No
DisplayPort Connection	No
Motherboard Form Factor	eATX
Wake on LAN
Motherboard Power Connectors	8 + 8-Pin
Motherboard Chipset	AMD X670E
Thunderbolt	No
Motherboard Model	MSI MEG X670E ACE
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
Cooler Height	mm
M.2 Support	Yes
On-board RGB Control	MSI Mystic Sync
Memory Speed	MHz
Skip Audio Test
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Radiator Length	mm
Microsoft Processor List
Power Requirement (auto)	100 W
Cooler count
Max Memory Speed Supported (Non-overclocked)	MHz
Max Memory Speed Supported (overclocked)	MHz
CPU Power Pins (female)	16
PCI Express Power Pins (female)
Total M.2 Slots	4
Maximum NVMe M.2 ports	4
PCI-e slots
SATA ports	6
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	4
No. of front USB-C ports supported	2
