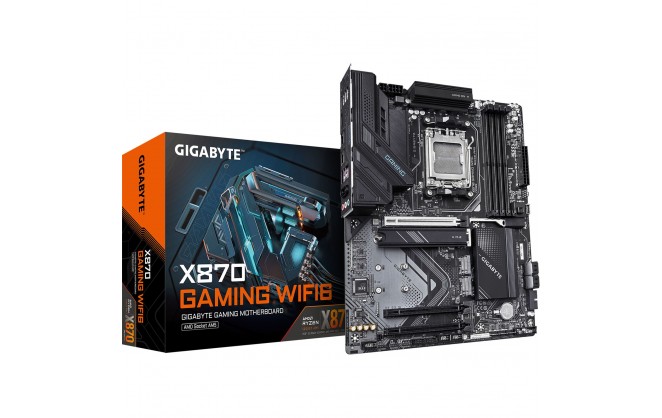

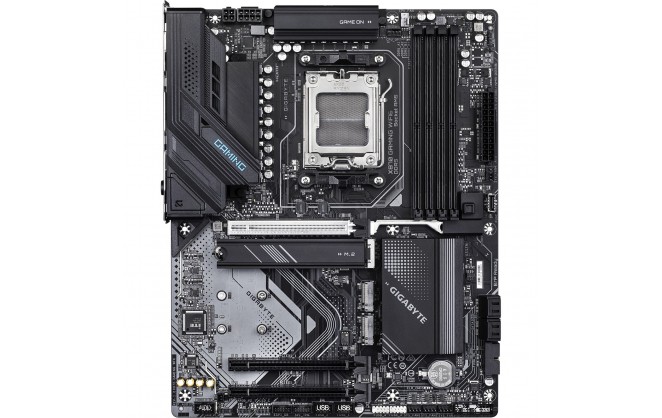

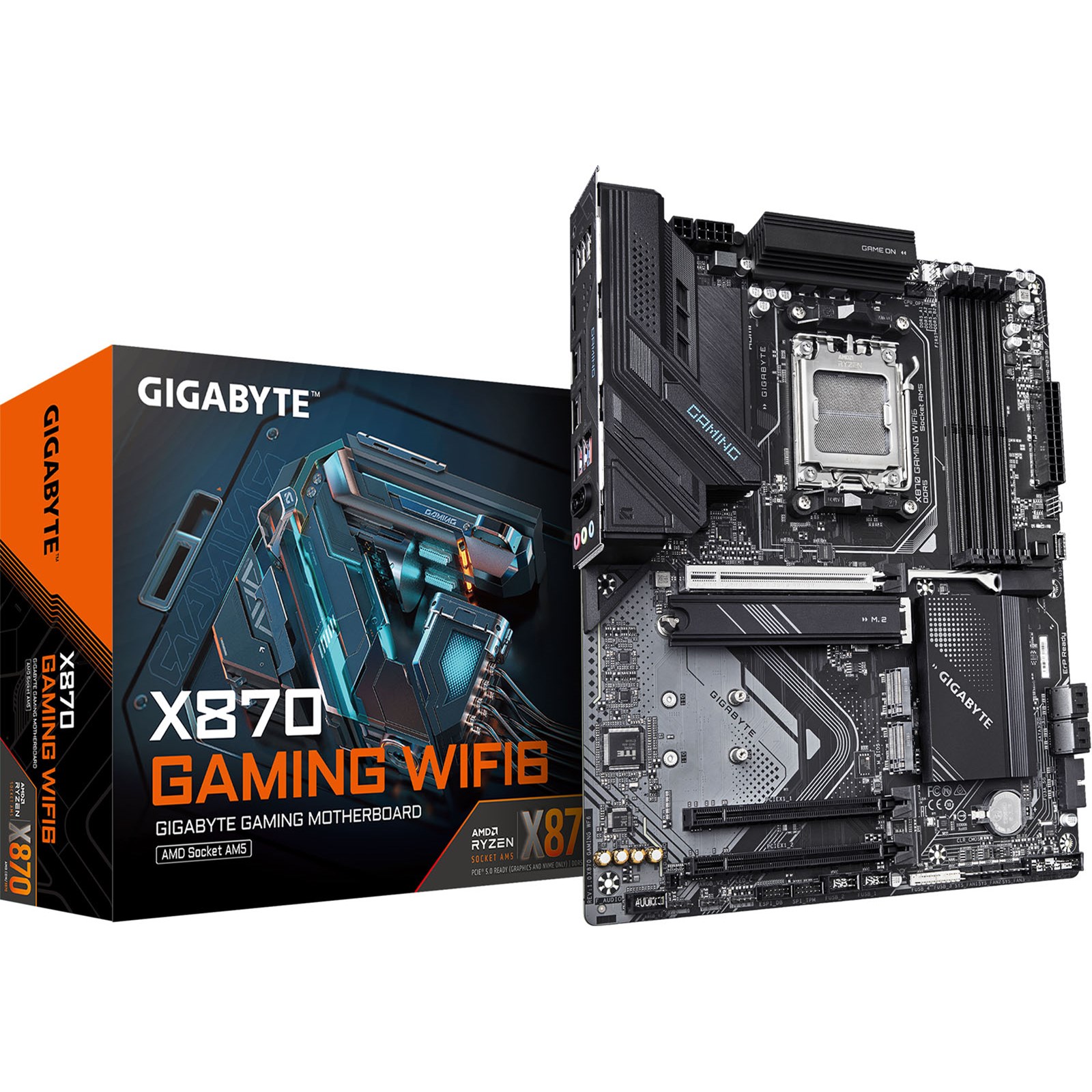

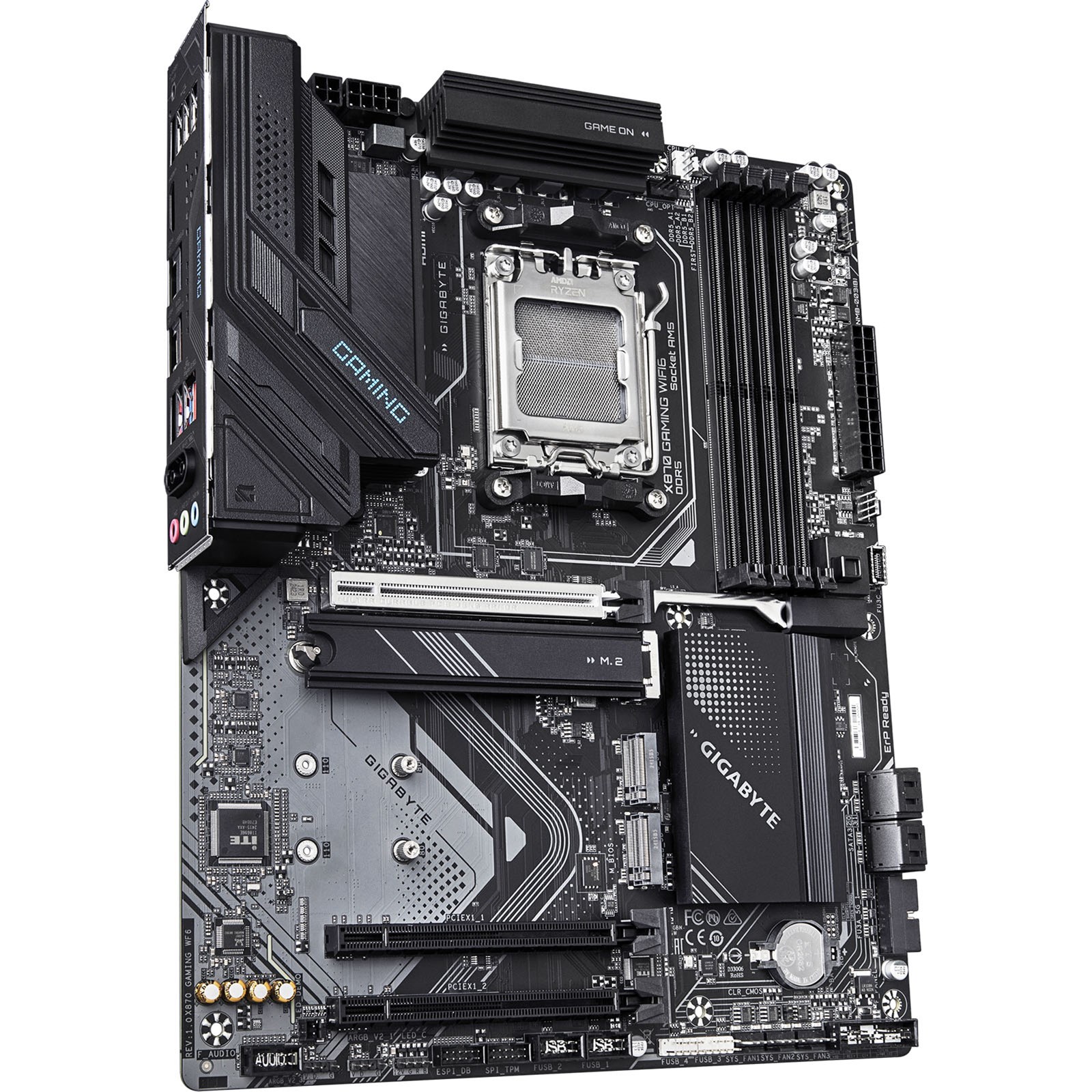

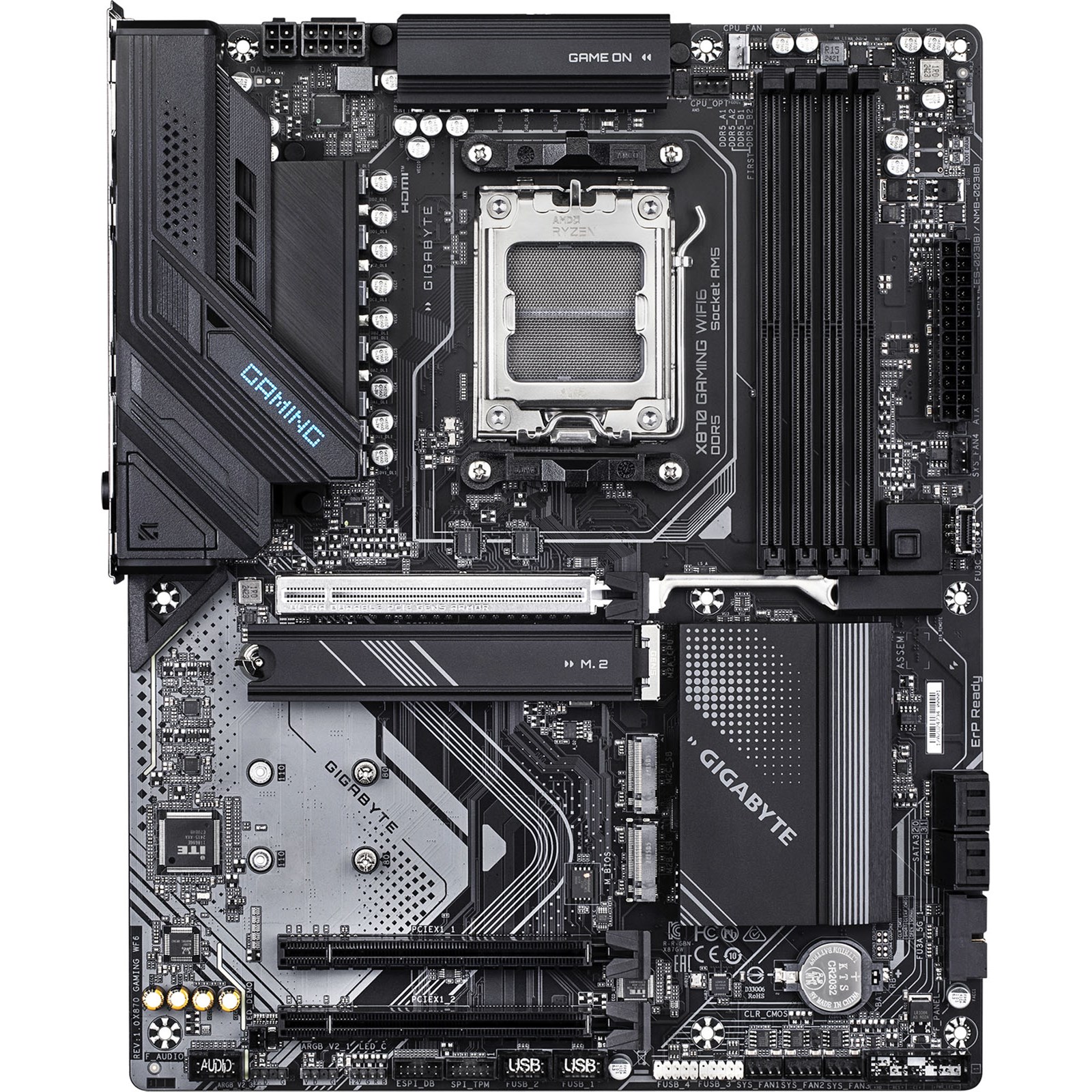

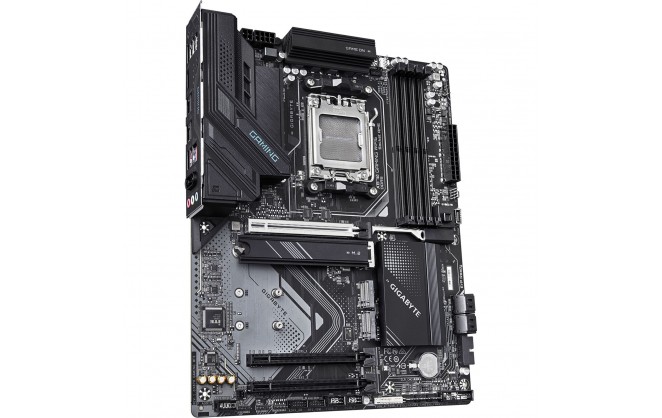

Gigabyte X870 GAMING WIFI6 ATX AM5 Motherboard

  • Part Number: X870 GAMING WIFI6
  • Manufacturer: Gigabyte
  • Quickfind Code: 136376
  • Stock: In Stock

£178.99 ex. vat
£214.79 inc. vat

Product Features:
  • Condition: New
  • CPU Type AMD
  • Memory Type DDR5
  • Socket Type AM5
  • Chipset X870
  • Form Factor ATX
+ Read More Information

Share:

Product Description

Gigabyte X870 GAMING WIFI6 AMD Socket AM5 Motherboard

Main Features

  • AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital twin 8+2+2 phases VRM solution
  • Dual Channel DDR5: 4x DIMMs with AMD EXPO Memory Module Support
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click: M.2 heatsinks with screwless design
  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • Ultra-Fast Storage: 3x M.2 slots, including 1x PCIe 5.0 x4
  • Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Fast Networking :2.5GbE LAN & Wi-Fi 6 802.11ax
  • Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
Technical Specification

Gigabyte X870 GAMING WIFI6 ATX AM5 Motherboard

CPU

CPU SocketSocket AM5
CPU BrandAMD
Installed Processors (Max)0 (1)
Supported Processor ManufacturerAMD
Supported ProcessorsAMD Ryzen 9000 / 8000 / 7000 Series Processors
64-bit SupportYes
SocketAM5

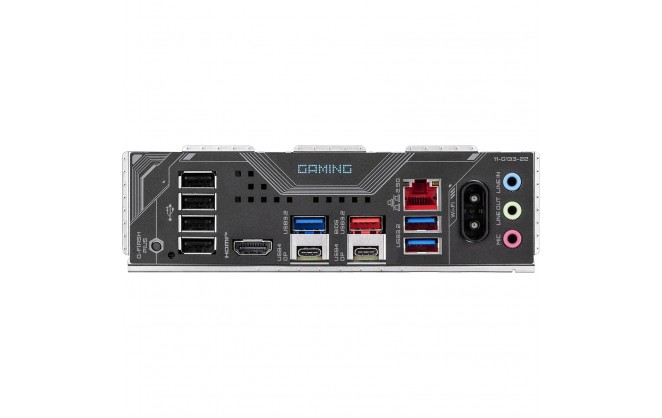

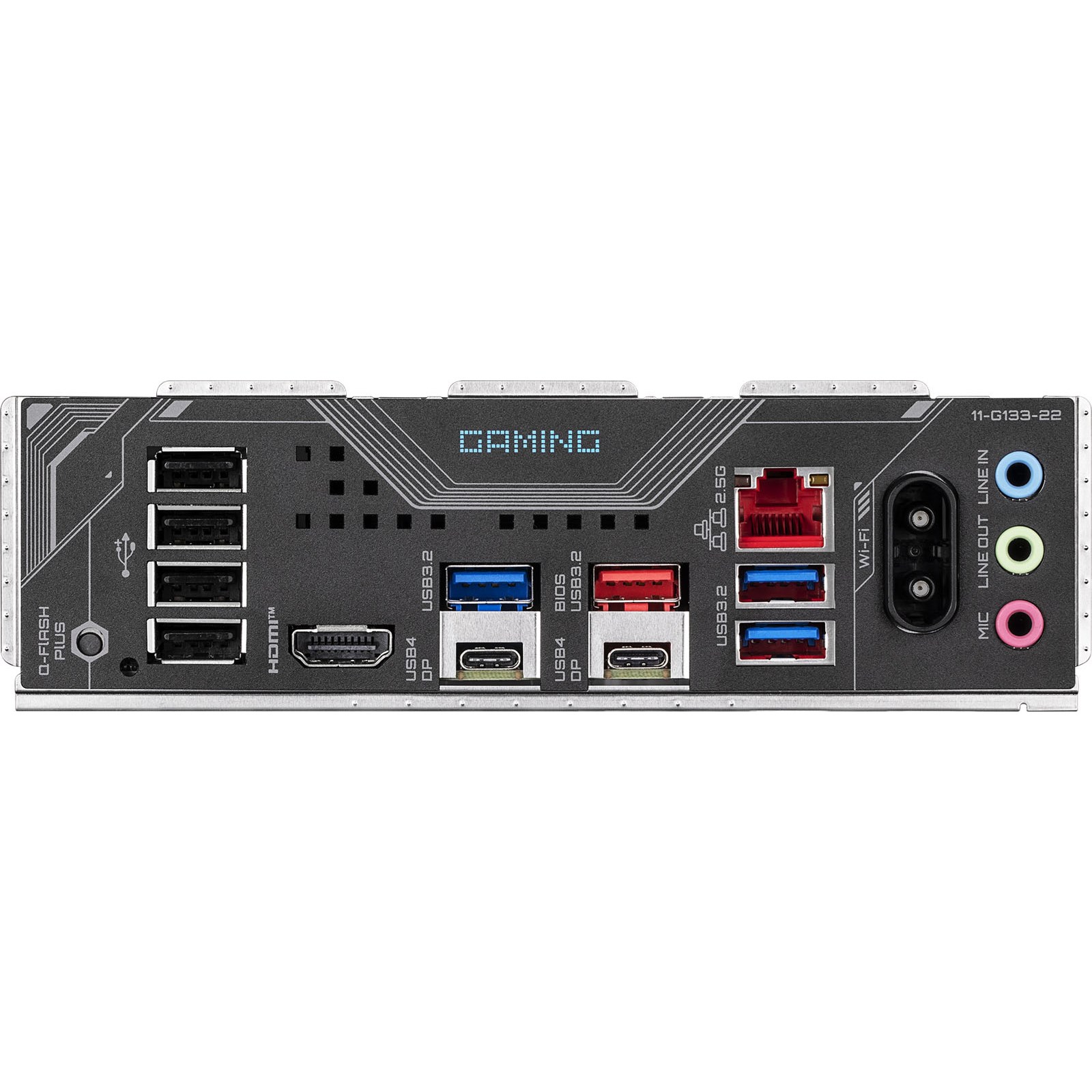

Rear Panel I/O Ports

USB Ports2 x USB-C 4
1 x USB 3.1
3 x USB 3.0
4 x USB 2.0
DisplayPortsYes via USB-C
HDMI Port1 x HDMI 2.1
RJ-45 Ports1 x RJ-45
Audio Line In Ports1 x 3.5mm Jack
Audio Line Out Ports1 x 3.5mm Jack
Microphone In Port1 x 3.5mm Jack
Antenna Connector(s)2 x SMA Antenna

Internal I/O Connectors

SATA Connectors4 x SATA III
USB Connectors1 x USB-C 3.2 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors1 x Front Panel
1 x Front Audio
Cooling Fan Support1 x CPU fan header
1 x CPU fan/Water Cooling pump header
4 x System fan headers
TPM Header1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Power Connector Port1 x 24-pin ATX
1 x 8-pin EPS
1 x 4-pin EPS
Other Connectors1 x M.2 slot, Socket 3, M Key, Type 25110/22110/2580/2280 (PCIe Gen5)
2 x M.2 slots, Socket 3, M Key, Type 22110/2280 (PCIe Gen4)
3 x 3-pin ARGB headers
1 x 4-pin RGB header

Memory

Memory Bus SpeedUp to 8000 MT/s
Memory TypeDDR5
Maximum RAM256 GB
Memory Slot4 x DIMM

Motherboard

NorthbridgeAMD X870
RAID SupportedYes
RAID FormatRAID 0, 1, 10
SATA SupportedYes

Expansion

Number of PCI Express Slots1 x PCI Express 5.0 x16 slot
2 x PCI Express 3.0 x16 slots (@ x1/x1)

Graphics Device

Integrated Graphics SupportedYes

Warranty

Warranty3 Years

Sound

Integrated SoundRealtek

Network

Integrated NetworkRealtek
Network Speeds SupportedUp to 2.5 Gbps
Wireless LANYes - Wi-Fi 6
BluetoothYes
Bluetooth Version5.3

System Requirements

Operating Systems SupportedWindows 11
Windows 10 64-bit

System

BIOS1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Jumpers1 x Clear CMOS
1 x Reset
Software Included (may be trial or restricted)Yes
DriversYes

Physical

Form FactorATX Motherboard
Width244 mm
Length305 mm

Key Features

Wireless NetworkYes
Motherboard Width244 mm
Motherboard Height305 mm
Main ColourBlack
Memory ChannelDual
On-board Audio Type7.1
Number of SATA Ports4 port(s)
Number of USB Ports10 port(s)
USB 3.0 SupportYes
Multi GPU SupportNo
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
DisplayPort ConnectionNo
Motherboard Form FactorATX
Drive Interface TypePCIe 5.0 x4 NVMe
Motherboard (EPS) Power Connectors4-Pin + 8-Pin
Motherboard ChipsetAMD X870
ThunderboltNo
Motherboard ModelGigabyte X870 GAMING WIFI6
USB 3.1 SupportYes
Internal USB3.0 HeaderYes
M.2 SupportYes
On-board RGB ControlGigabyte RGB Fusion
RGB Header Type3-Pin ARGB
Addressable RGBYes
Internal USB Type-C HeaderYes
Power Requirement (auto)70 W
Max Memory Speed Supported (Non-overclocked)5200 MT/s
Max Memory Speed Supported (overclocked)8000 MT/s
CPU Power Pins (female)12
Total M.2 Slots3
Maximum NVMe M.2 ports3
SATA ports4
No. of front USB2.0 ports supported4
No. of front USB3.0 ports supported2
No. of front USB-C ports supported1
Back Connect SupportNo

Item Details

ManufacturerGigabyte
Manufacturer CodeX870 GAMING WIFI6
EAN4719331865399
UPC889523045619
