Create your work faster than ever
Powerful GeForce RTX™ 3070 Ti VISION OC 8G accelerates your work with incredible boosts in performance. Whether you are doing VIDEO EDITING, 3D ANIMATION, PHOTOGRAPHY, GRAPHIC DESIGN, ARCHITECTURAL VISUALIZATION or BROADCASTING, it can save you a lot of time.
STUDIO DRIVER
Studio Drivers provide the best possible experience for key major creative applications. NVIDIA does extensive testing which focuses on the top creative applications and ensures the highest levels of performance, stability, and functionality are provided.
WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features two 90mm and one 80mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate direct touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
LARGE COPPER PLATE AND COPPER HEAT PIPES
With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
RGB FUSION - SYNC WITH ONE CLICK
There are various modes you can select from and easily achieve RGB synchronization with just one single click.
RGB FUSION - INDIVIDUAL LIGHTING CONTROL
An easy way to customize the colors and the lighting effects individually just the way you want.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

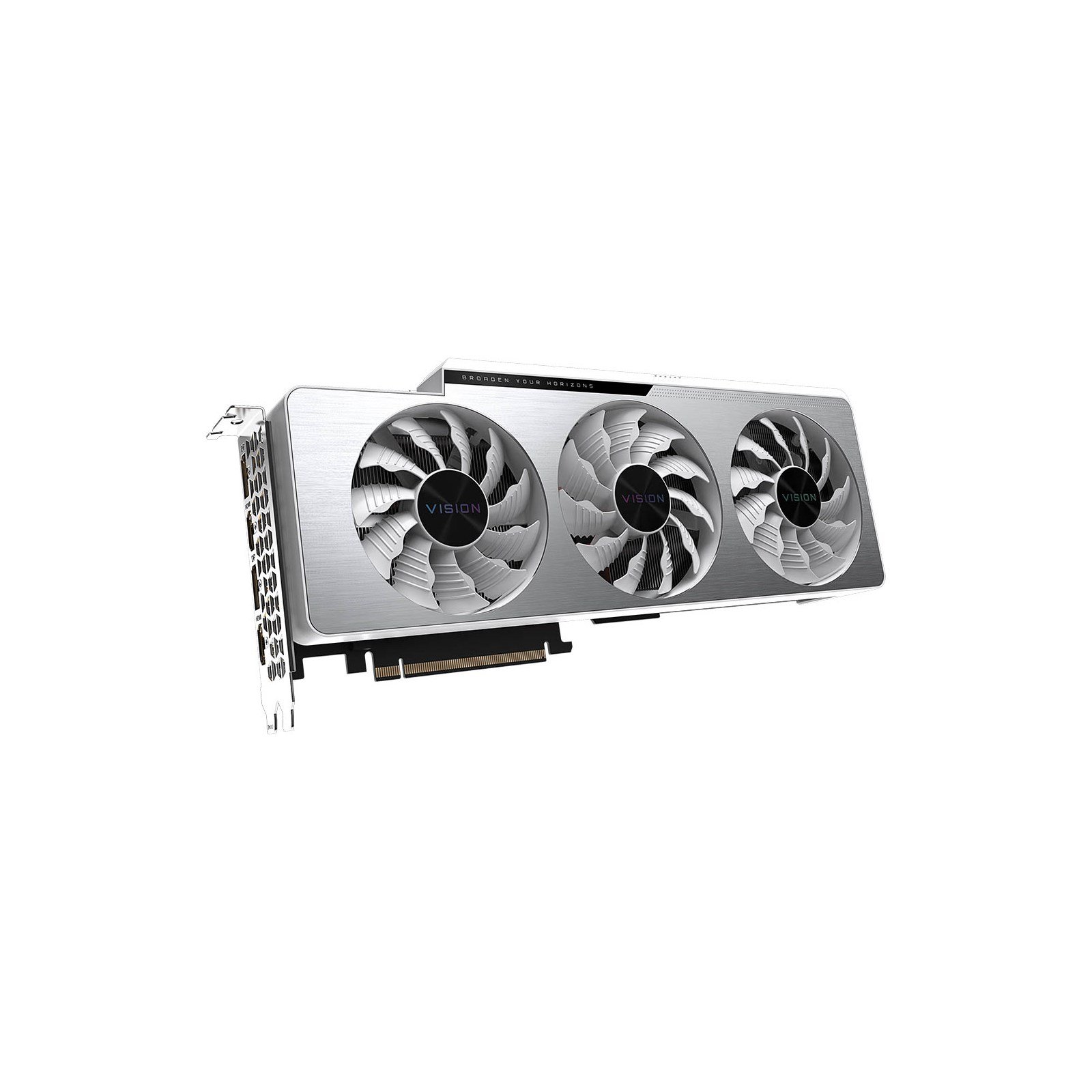

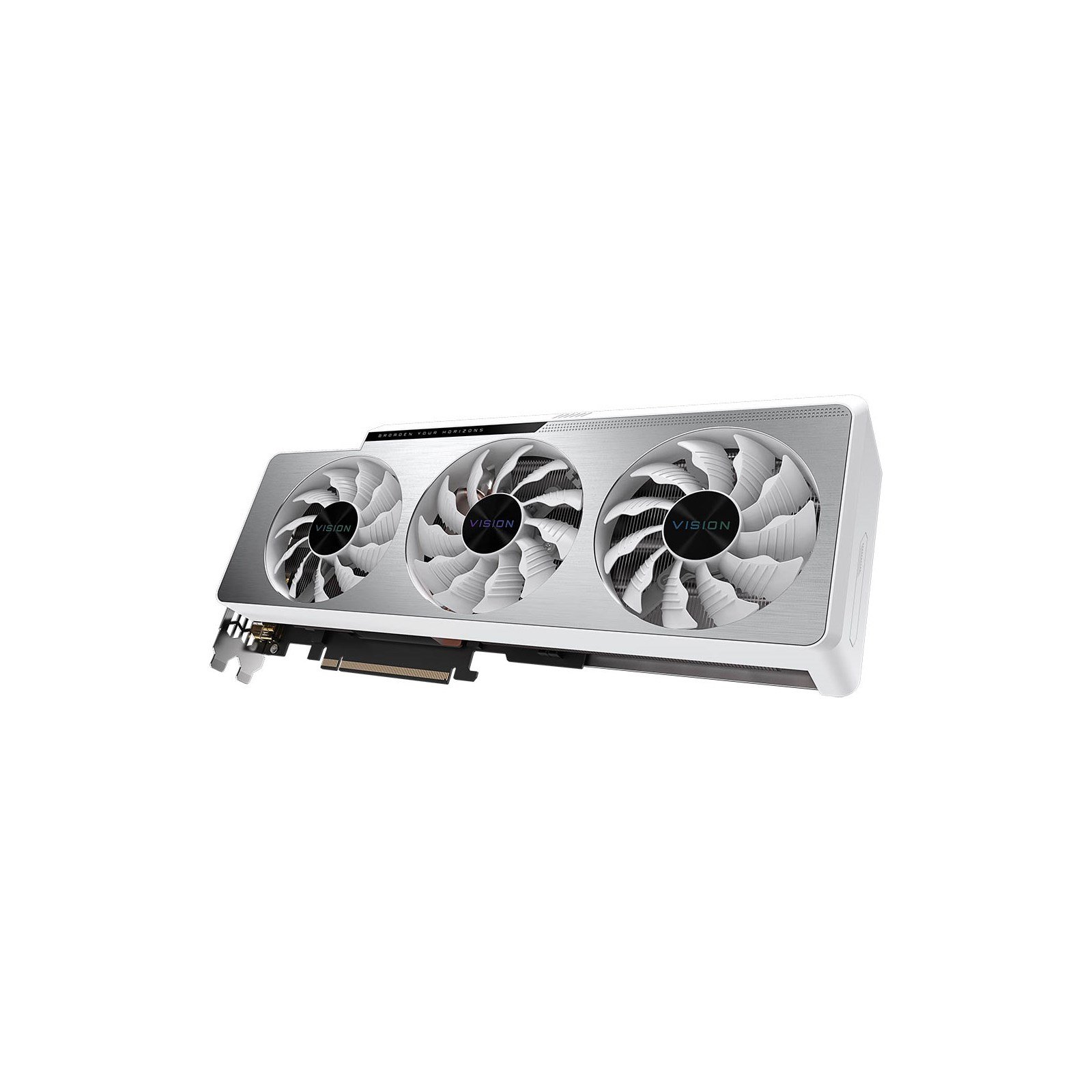

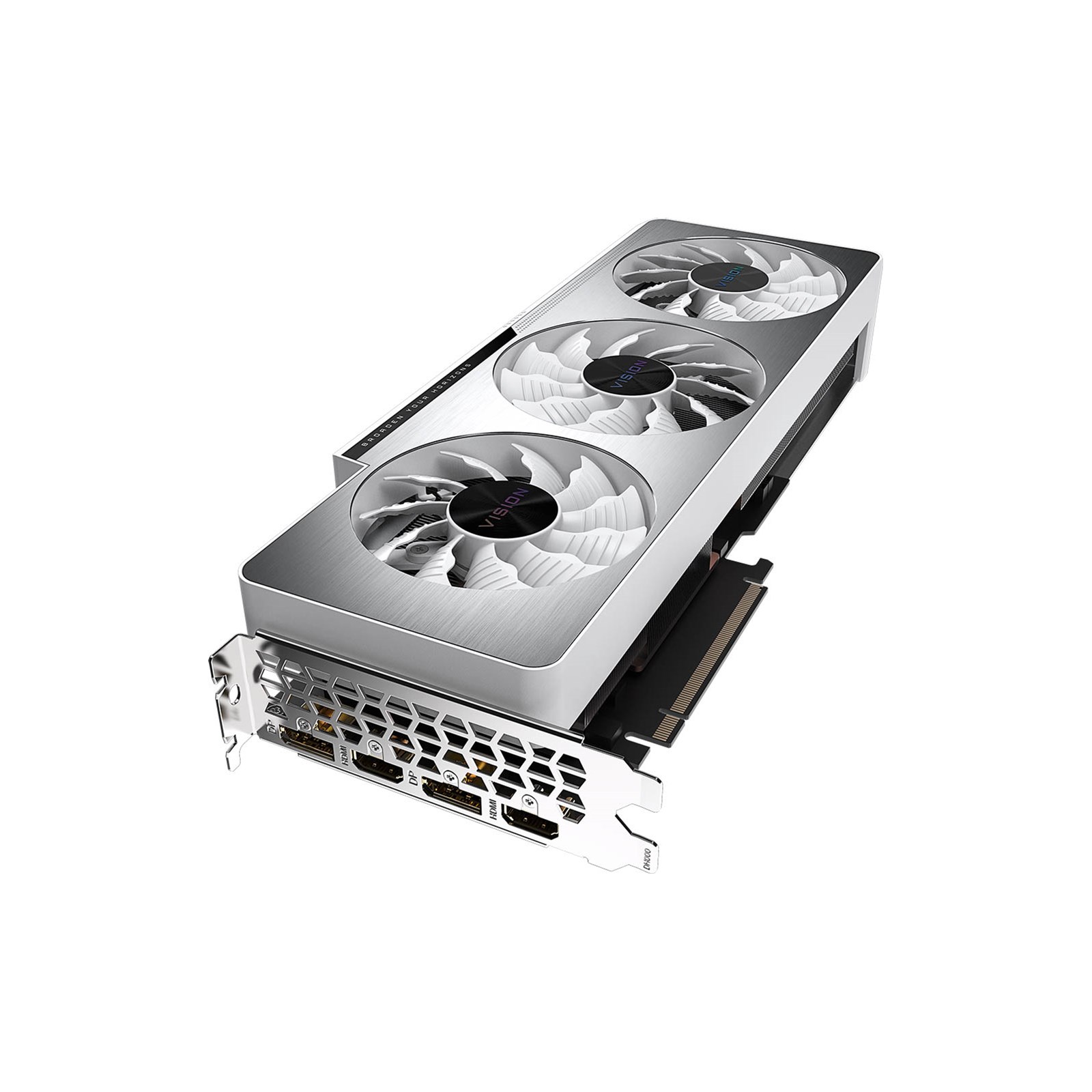

Gigabyte GeForce RTX 3070 Ti Vision 8GB OC GPU
GPU
| Chipset Manufacturer | NVIDIA |
| Chipset Model Name | GeForce RTX |
| Chipset Model Number | 3070 Ti |
| Chipset Additional Information | VISION OC |
| Boost Chip Clock | 1830 MHz |
| Number of Cores | 6144 units |
| Graphics Core | CUDA |
Memory
| Memory Size | 8192 MB |
| Memory Clock | 19 Gbps |
| Memory Type | GDDR6X |
| Memory Width | 256 bit |
| Memory Bandwidth | 608 GB/s |
Interfaces/Ports
| Video Card Bus Type | PCI Express |
| Video Card Bus Version | 4.0 x16 |
| HDMI Port | 2 x HDMI 2.1 |
| DisplayPort | 2 x DisplayPort 1.4a |
Resolution
| Multiple Monitor Support (Max) | Yes (4) |
| Maximum Resolution | 7680 x 4320 pixels |
System Requirements
| System Requirements | 1 x PCI Express 4.0 x16 slot Recommended 750W PSU with 2 x 8-pin PCIe connectors |
Electrical
| Power Connector | 2 x 8-pin PCIe |
| Recomended Power Supply | 750 W |
Physical
| Form Factor | Graphics Card |
| In The Box | Graphics Card Quick Guide |
| Width | 55 mm (Triple Slot) |
| Depth | 320 mm |
| Height | 126 mm |
Warranty
| Warranty | 3 Years |
Key Features
| Interface Type | PCI Express 4.0 x16 |
| VGA Connection | No |
| DVI Connection | No |
| HDMI Connection | Yes |
| Graphics Usability | Gaming |
| DisplayPort Connection | Yes |
| Direct X Support | Direct X 12 |
| Cooler Type | Dynamic Fan |
| Low Profile | No |
| NVIDIA GeForce | RTX 3070 Ti |
| PCI-E Pin Type | 8-Pin + 8-Pin |
| Cooling Technology | Dynamic Fan |
| VR Ready | NVIDIA |
| GPU Length | 320 mm |
| Card Width | Triple Slot |
Graphics
| Graphics Chipset | GeForce RTX 3070 Ti |
Graphics Device
| G-Sync | Yes |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | GV-N307TVISION OC-8GD |
| EAN | 4719331309275 |
| Condition | New |
