ASUS GeForce RTX 3080 Ti TUF 12GB OC GPU

Part Number: 90YV0GU1-M0NM00
Manufacturer: ASUS
Quickfind Code: 125404

Stock: Out Stock

Contact for availability

Product Features:

Condition: New
GPU RTX 3080 Ti
Capacity 12GB
Connection PCI-E
Memory Type GDDR6X
Series RTX
GPU Manufacturer Nvidia

+ Read More Information

Product Description

BUILT TUF

The TUF Gaming GeForce RTX™ 3080 Ti has been stripped down and built back up to provide more robust power and cooling. A new all-metal shroud houses three powerful axial-tech fans that utilize durable dual ball fan bearings. Fan rotation has been optimized for reduced turbulence, and a stop mode brings all three fans to a halt at low temps. Beneath, independent heatsinks for the GPU and memory keep thermals under tight control. Additional features, including TUF components, Auto-Extreme Technology, a new GPU bracket, and a backplate vent make the TUF a proper powerhouse. For builders looking for a new "old faithful", this card has your back.

NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world's fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
Axial-tech fan design has been newly tuned with a reversed central fan direction for less turbulence.
Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
Military-grade capacitors and other TUF components enhance durability and performance.
GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.

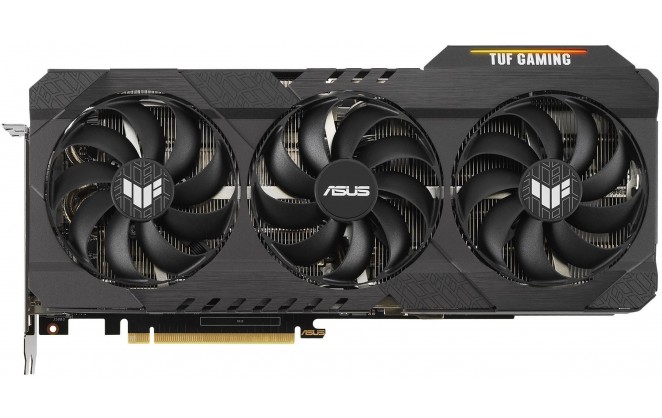

Axial-tech Upgrades

TUF Gaming cards leverage our tried-and-true Axial-tech fan design, with three fans working in tandem to satisfy the thermal demands of NVIDIA's new high-octane design. The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types.

New Directions

The two side fans spin counterclockwise to reduce turbulence. And to eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50 degrees and power consumption is low.

MaxContact

To get heat into the heatsink array efficiently, so that it can be whisked away by the powerful Axial-tech fans, we use a manufacturing process that improves the surface smoothness of the heatspreader at the microscopic level. The extra flatness allows for better contact with the die, helping to enhance thermal transfer.

2.7-slot Design

The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card's large, 2.7-slot footprint. This generation of TUF Gaming graphics cards also feature a dedicated heatsink for VRAM to keep temperatures well under maximum operating specs.

TUF Components

Components are selected for TUF Gaming graphics cards based on their durability and performance. In addition to top-shelf chokes and MOSFETs, capacitors that meet military-grade certification make the TUF stand tall amongst the competition. The components are soldered to the PCB using our advanced Auto-Extreme automated manufacturing process. Smooth joints on the rear of the PCB and the elimination of human errors ensure each graphics card meets our rigorous specifications. Finally, to ensure flawless performance when it counts, the cards are subjected to a grueling 144-hour validation trial.

Fresh Shroud

An all-aluminum shroud adds robust protection to TUF Gaming graphics cards and a no-nonsense industrial design and grayscale colorway fits into any build with ease.

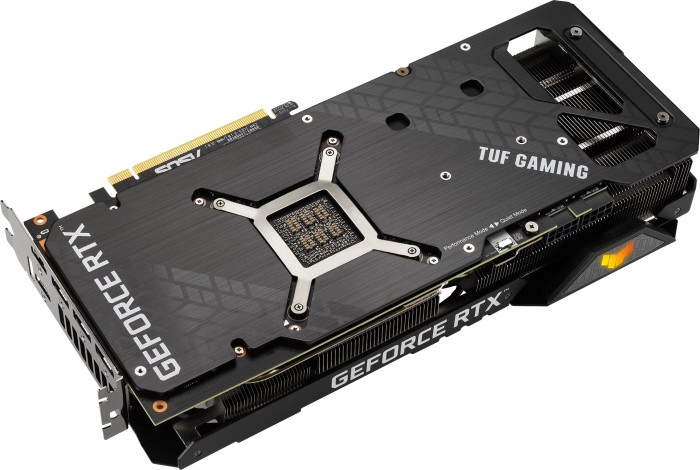

It's Cooler Out Back

The underside of the card reveals a host of improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the cooler. Beneath the GPU, a bracket provides consistent mounting pressure between the die and heat spreader. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. A conveniently placed Dual Bios switch allows customization of the card's default performance profile without software.

Functional Front

The top-side RGB element can be customized to display a range of aesthetic and functional effects and also synced with other ASUS components to enable uniform lighting. To fulfill the power demands of the GeForce RTX 3080 Ti, two 8-pin connectors are present, along with onboard LEDs that light up if PSU PCIe power connectors are not plugged in correctly.

Static
Always on
Breathing
Fades in & out
Strobing
Flashes on & off
Color Cycle
Fades between the colors of rainbow
Rainbow
Various color
Starry Night
A display that mimic the nighttime sky
Smart
Changes color with CPU/ GPU load or temperature
Music
Pulses to the beat of your music
Adaptive Color
Matches color to a selected region on your screen
Dark
Lighting is turned off

Software Suite

Harness the hardware

Hardware isn't the only area where research and development is being applied to take things to the next level. The ROG team has been building up the GPU Tweak II software utility to offer unique features along with the standard monitoring, tweaking, and tuning you expect. Like all of our premium graphics cards, the TUF Gaming GeForce RTX 3080 Ti is bundled with XSplit streaming software and wtfast's Gamers Private Network to make sure that your online experience is the best it can be.

NVIDIA AMPERE ARCHITECTURE
The all-new NVIDIA Ampere architecture delivers the ultimate play, featuring advanced 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput.
RTX. IT'S ON.
Experience today's biggest blockbusters like never before with the visual fidelity of real-time ray tracing and the ultimate performance of AI-powered DLSS.
DLSS AI ACCELERATION
NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has come to gaming.

Technical Specification

ASUS GeForce RTX 3080 Ti TUF 12GB OC GPU

GPU

Chipset Manufacturer	NVIDIA
Chipset Model Name	GeForce RTX
Chipset Model Number	3080 Ti
Chipset Additional Information	TUF Gaming OC
Boost Chip Clock	1785 MHz

Memory

Memory Size	12288 MB
Memory Clock	19 Gbps
Memory Type	GDDR6X
Memory Width	384 bit

Interfaces/Ports

Video Card Bus Type	PCI Express
Video Card Bus Version	4.0 x16
HDMI Port	2 x HDMI 2.1
DisplayPort	3 x DisplayPort 1.4a

Resolution

Multiple Monitor Support (Max)	Yes (4)
Maximum Resolution	7680 x 4320 pixels

System Requirements

1 x PCI Express 4.0 x16 slot
Recommended 850W PSU with 2 x 8-pin PCIe connectors

Electrical

Power Connector	2 x 8-pin PCIe
Recomended Power Supply	850 W

Physical

Form Factor	Graphics Card
In The Box	Graphics Card TUF Certificate of Reliability Collection Card Speedsetup Manual
Width	51.7 mm (Triple Slot)
Depth	299.9 mm
Height	126.9 mm
Weight	1.4 kg

Warranty

3 Years

Key Features

Interface Type	PCI Express 4.0 x16
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
Graphics Usability	Gaming
DisplayPort Connection	Yes
Direct X Support	Direct X 12
Cooler Type	Dynamic Fan
Low Profile	No
NVIDIA GeForce	RTX 3080 Ti
PCI-E Pin Type	8-Pin + 8-Pin
Cooling Technology	Dynamic Fan
VR Ready	NVIDIA
GPU Length	300 mm
Card Width	Triple Slot
